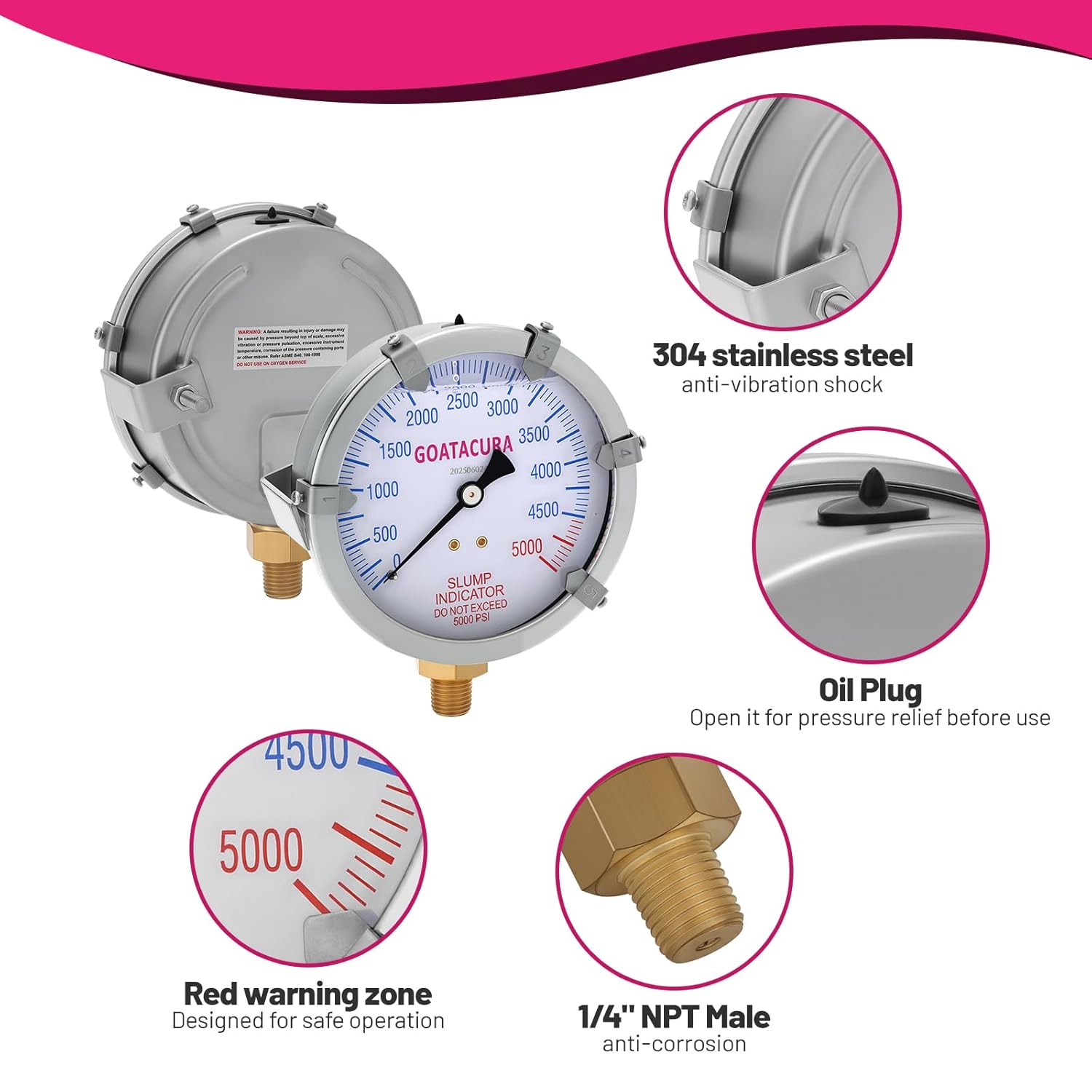

0-5000psi Slump Gauge, 4" Dial Size, Stainless Steel Case, 1/4" NPT Lower Mount, 2-1-2% Accuracy, for Concrete and Construction Industry, Construction Machinery Field

"DescriptionGOATACURA Slump Gauge for concrete and construction industry, construction machinery field, municipal and infrastructure projects Dial Size: 4"" Thread Size: 1/4"" NPT Pressure Range: 0-5000psi, single scale Accuracy: +/-2-1-2%, comply with ANSI B40.1 (Grade A) standard, with accuracy test report Connection Location: Lower mount Connection Material: Brass Case: 304 stainless steel case Filling: Glycerin filled, enhance vibration and shock resistance, extend product life Dial: Aluminum, white Pointer: Aluminum, black Window: Polycarbonate Ingress Protection: waterproof"

• 【Application】Used for pressure debugging of commercial concrete mixing stations, engineering quality inspection units, hydraulic systems, and pressure monitoring compatible with other high-viscosity fluid conveying systems (such as mortar and mud pumps), etc
• 【Features】5 rotatable aluminum buckles (installed with rolling rings), which can preset the concrete pressure threshold and make the construction more efficient; 4600-5000psi red warning zone+mechanical stop nail to prevent tube explosion accident caused by overpressure operation of pump truck
• 【Parameter】4" dial size, 1/4" NPT lower mount
• 【Range】0-5000psi, single scale, with red warning zone
• 【Accuracy】+/-2-1-2%, comply with ANSI B40.1 (Grade A) standard, with accuracy test report
