1-485m/min MED42-KK300 High Flow Embedded Peristaltic Pump 24V Stepper Motor Adjustable Dosing Pump Support CAN/RS485(S40)

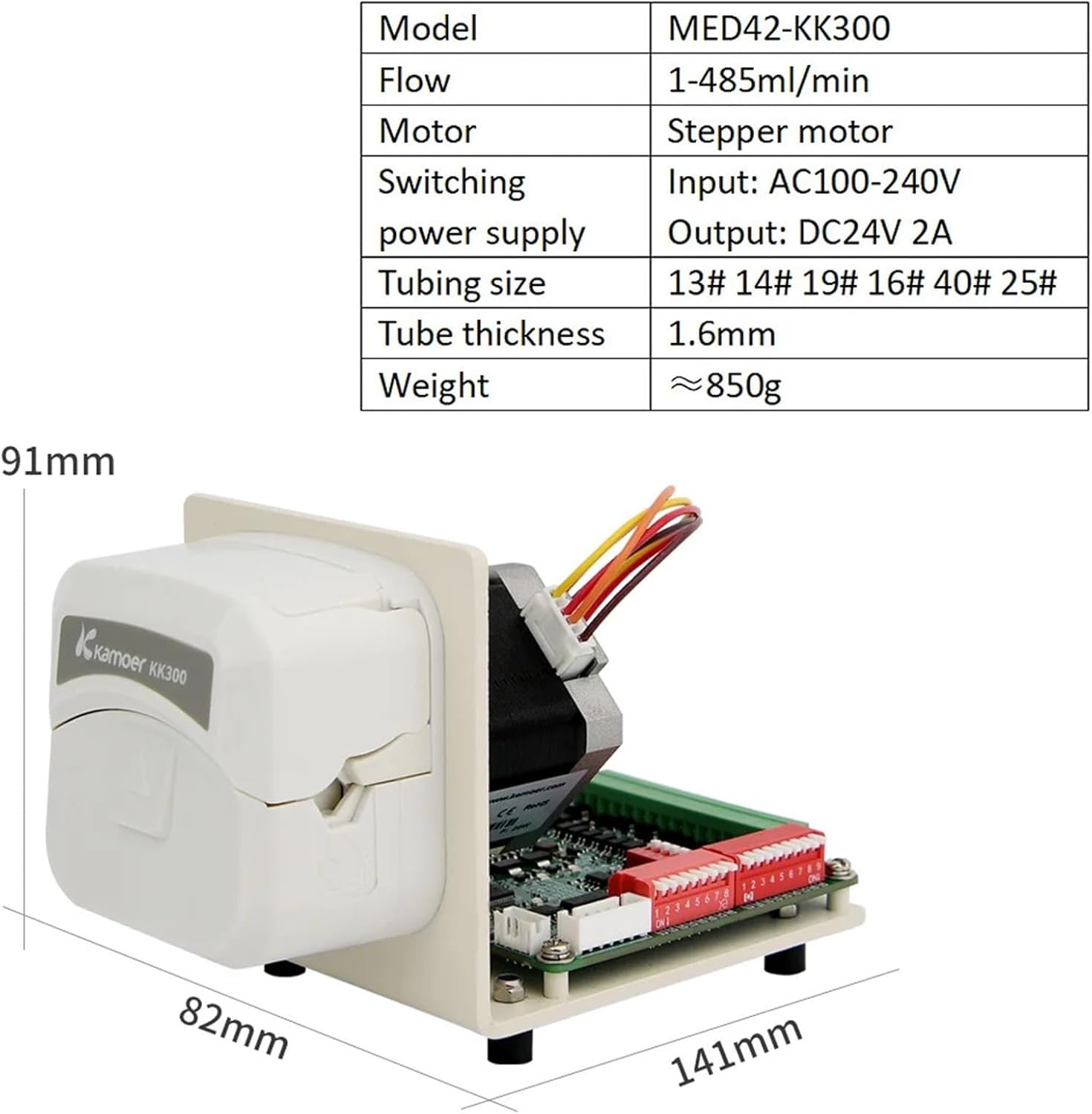

Water PumpsMED42-KK300 High Flow Embedded Peristaltic Pump 24V Stepper Motor Adjustable Dosing Pump 1-485ml/min Support CAN/RS485Basic ParametersMED42-KK300 Peristaltic Pump Stepper motorVoltage24V(2A)Flow ml/min1-485ml/minPower(Max)36WMaximum speed400RPM (software can be set)Speed control resolution0.1RPMFunctionsContinuous Mode/Semi-Automatic/Fully AutomaticSize141x82x93mmExternal control0 ~5V , 0 ~10V , 4 ~20mA , 0 ~10khz , DIP switch speed regulation, rotary encoder speed regulation, button speed regulation, R S485 controlMotor lifetime6000HWeight850gOptional tubingBPT(1000H)/Silicone(200H)Language settingsNoneOptional accessoriesDigital tube displayRotary encoderPower cord connectorTube diameterID:inner diameterOD:outer diameterSpeed range(RPM)Flow rate(ml/min)Tubing lifetime(Hours)B16ID3.2 x OD6.4mm4001901000HS16ID3.2 x OD6.4mm400170200HS25ID4.8xOD8.0mm400315200HS40ID4.0 x OD7.2mm400235200HVarious ApplicationMedical fieldPrinting&3DChemical industryAnalytical instrumentsCleaning and disinfectionStepper motor Precise control Builtindriver boardInterface definition1. Quick connect terminal2. Mode & address dial3 Current speed DIP switch4 Rotary encoder for speed regulation and setting)5. Button interface (5 buttons)6. Indicator connector (3 LEDs)7. Digital tube interface (4-digit digital tube)8. Fan control9. Stepper motor interface10. RS485/CAN communication selection dialQuick connect terminaldescription1. RS485A2. RS485B3. The place of communication4. 0~5V/10V5.4~20mA6. Analog ground7. Pulse input positive8. E
