10.1" 1024x600 IPS LCD Screen 50 pins and Type C USB Controller Board,for DIY RPI Monitor/Sub Display Using
5.0 (99 items)
Limited Time Sale$29.94 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211055613 | Release Date | 2026/04/04 | List Price | $19.96 | Model Number | 211055613 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

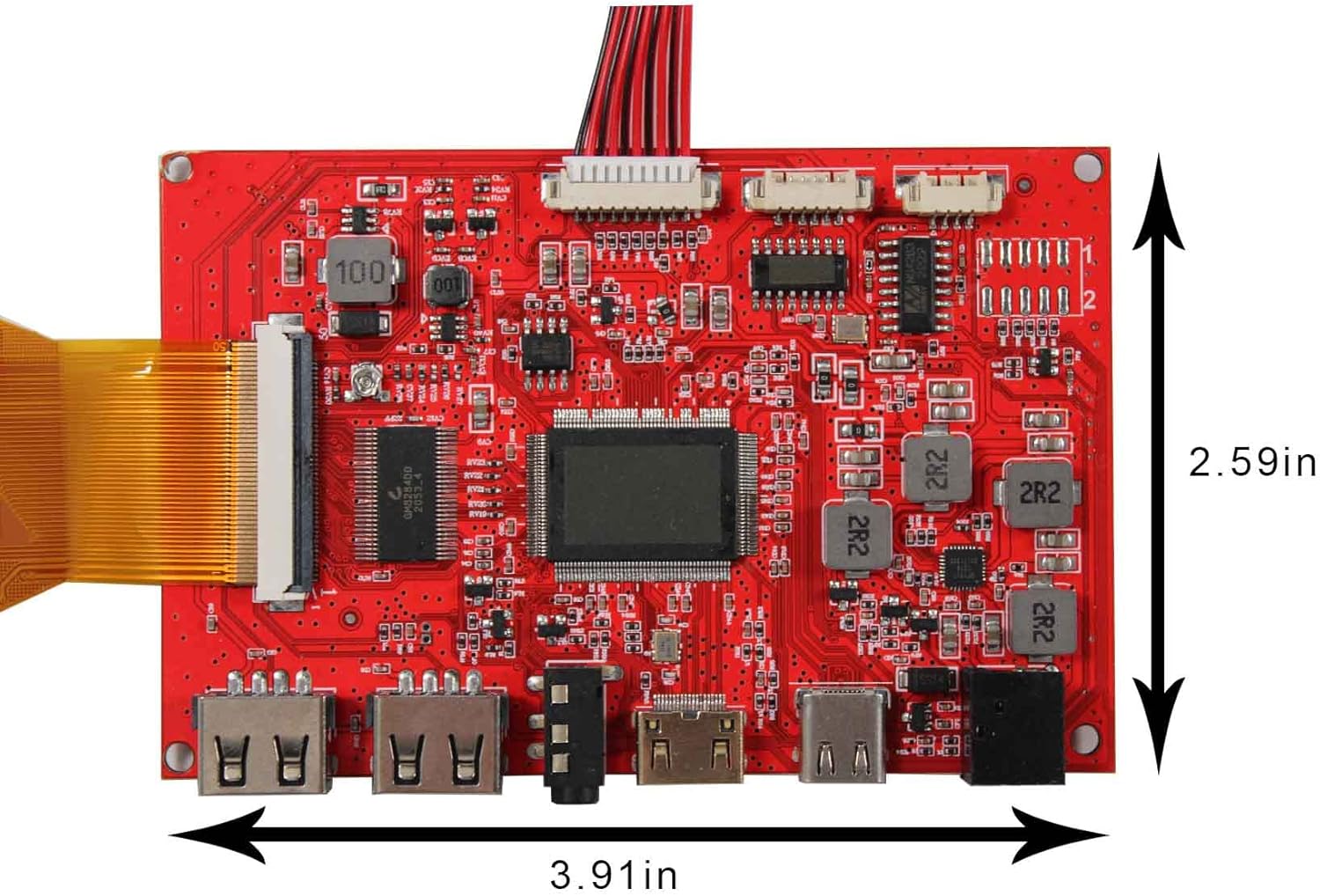

LCD Controller Board: Type-C USB LCD Board Work for LVDS Interface LCD ScreenInput Power Adapter: 12Vdc More than 2A.Come In Standby Model When Not Input SignalStandby Model 2x2WVideo Input: Type-C 2xUSB(keyboard mouse)Audio Input: Type-CAudio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 99.5mm x65.8mm x 11mm10.1" VS101T-001A 1024X600 IPS LCD Screen:Display Normally Black, Transmissive Resolution 1024(RGB)×600Outline Size 235× 143×5 (H×V×D)Display Area 222.72 × 125.28 (H×V) Brightness 800 cd/m² (Typ.)Contrast Ratio 1000:1 (Typ.) (TM)Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPCBacklight WLEDInput Voltage 3.3V (Typ.)Packing list:1× Type-C USB LCD Controller Board VS-TY2660H-V8631× 10.1inch VS101T-001A 1024X600 IPS LCD Display1× Keyboard With Cable
- 【Screen parametes】10.1" VS101T-001A 1024X600 IPS LCD Screen,Display Area 222.72x125.28(H×V)mm,Contrast Ratio 1000:1,Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC,Backlight WLED,Input Voltage 3.3V.
- 【LCD Controller Board】Video Input: Type-C ,2xUSB (keyboard mouse),Audio Input: Type-C ,Please use in insulated environment.
- 【Input Power】12V DC 2A ,port size :5.5x2.1mm.Pls prepare the power adapter by yourself.

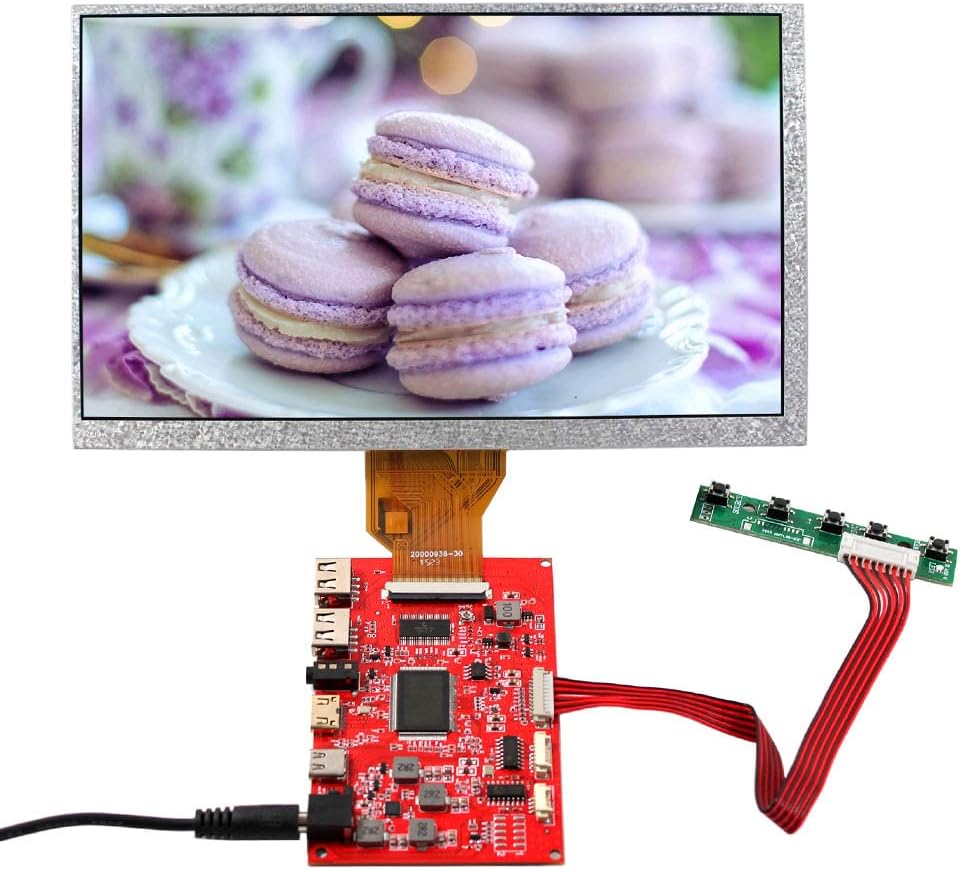

- 【Plug and play】Connecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.
- 【Packing lists】1× Type-C USB LCD Controller Board VS-TY2660H-V863,10.1inch VS101T-001A 1024X600 IPS LCD Display,1× Keyboard With Cable
| UPC | 619438597282 |
|---|---|
| Brand | FanyiTek |
| Color | Type C USB HDMI board + 10.1" 1024x600 screen |
| Voltage | 12 Volts |
| Brightness | 800 cd/m² |
| Model Name | 219c821d-a5f1-48b8-9ebf-30d3a0f0b8b7 |
| Resolution | HD, SVGA Wide |
| Item Weight | 0.3 Pounds |
| Screen Size | 10.1 |
| Aspect Ratio | 1.71:1 |
| Display Type | LCD |
| Manufacturer | FanyiTek |
| Model Number | 219c821d-a5f1-48b8-9ebf-30d3a0f0b8b7 |
| Refresh Rate | 60 Hz |
| Response Time | 8 Milliseconds |
| Screen Finish | Glossy |
| Viewing Angle | 80 Degrees |
| Contrast Ratio | 1000:1 |
| Total Usb Ports | 2 |
| Has Color Screen | Yes |
| Native Resolution | 1024x600 |
| Compatible Devices | Speaker |
| Display Technology | LCD |
| Additional Features | Portable |
| Hardware Connectivity | Unknown |
| Connectivity Technology | HDMI |
| Item Dimensions D x W x H | 3.14"D x 11.8"W x 8.26"H |
| Specific Uses For Product | Gaming |
| Display Resolution Maximum | 1024 x 600 Pixels |
| Total Number of HDMI Ports | 1 |
