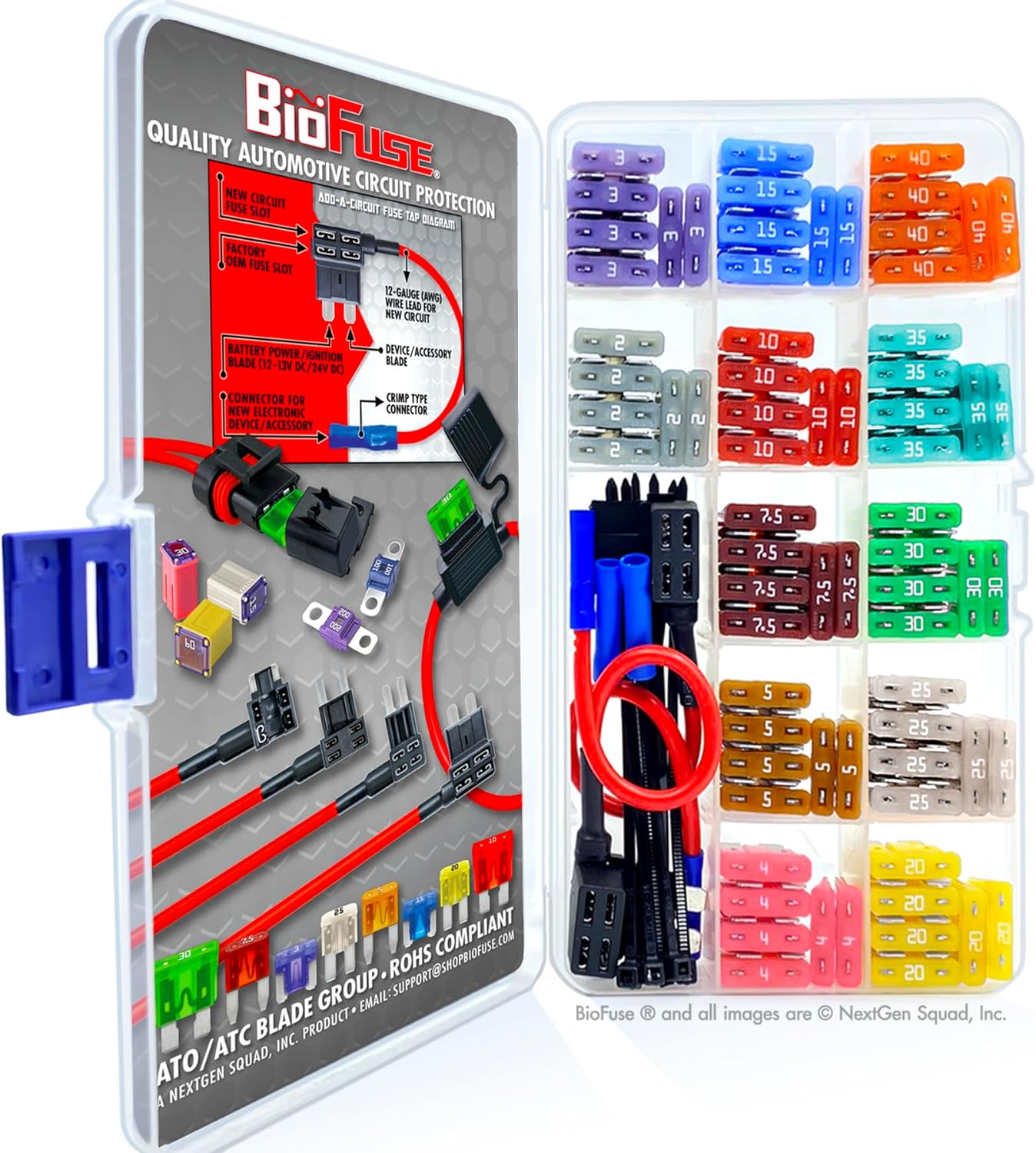

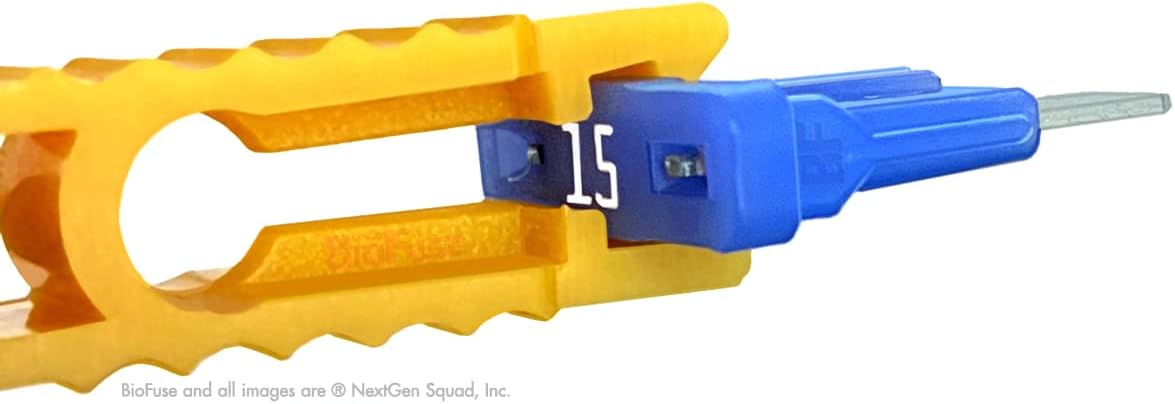

120 Piece Full Range Fuse Assortment & Tap Kit: 108 Standard, ATO, ATC, ATS, APR Automotive Fuses 2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A 35A 40A, 2 Taps (12V, 12AWG), Ties, Connectors, Puller

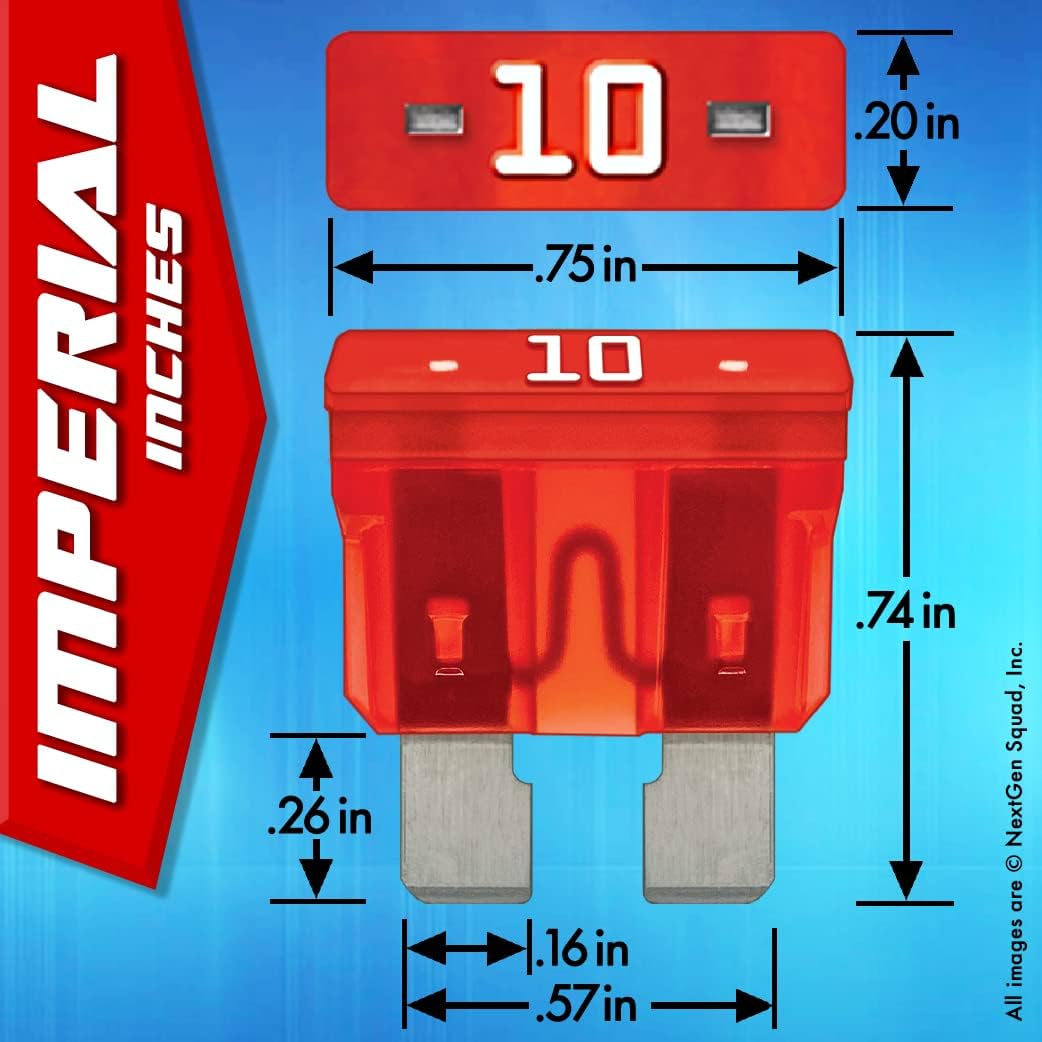

✔ FUSE CHARACTERISTICS – Fuses are color-coded and printed with the rated current on top for easy identification and installation. Transparent housings allow for visual inspection (in case of a blown fuse) and are molded with non-conductive, heat-resistant nylon. Blades are made of anti-corrosive plated zinc alloy. The result is a high temperature tolerant fuse that provides optimum overcurrent protection of electrical circuits in automotive vehicles and electrical equipment. ✔ FUSE BLADE SIZE/GROUP/DIMENSIONS - Standard dual blade / Blade Group Type: ATO, ATOF, ATC, APR, ATS / Length: 19.1mm (.75) x Width: 5.1mm (.20") x Height: 18.8mm (.74") ✔ FUSE TECHNICAL SPECS/COMPATIBILITY – Current rating (amps): VIOLET-3A / TAN-5A / BROWN-7.5A / RED-10A / BLUE-15A / YELLOW-20A / CLEAR-25A / GREEN-30A / Overall voltage rating: 32 VDC / Automotive and non-automotive use: MARINE, BOAT, CAR, TRUCK, SUV, RV, ATV, UTV, GOLF CART, TRIKE, SNOW MOBILE, and other electrical devices. Refer to your owner’s manual for your specific fuse type and amperage rating. ✔ FUSE MATERIAL/REGULATORY COMPLIANCE - Fuse Housing: Non-conductive, heat-resistant nylon (PA66). Fuse Blades & Conductor: Sn (tin plated) zinc alloy / SAE J1284, ISO 8820-3, RoHS Compliant, UL Listed, and CSA certified (in reference to electrical, mechanical, and environmental performance requirements).PACKAGE INCLUDES: 9ct 2 AMP Blade Fuses (grey) 9ct 3 AMP Blade Fuses (violet) 9ct 4 AMP Blade Fuses (pink) 9ct 5 AMP Blade Fuses (tan) 9ct 7.5 AMP Blade Fuses (brown) 9ct 10 AMP Blade Fuses (re

• FUSE HOLDER CHARACTERISTICS - BioFuse fuse taps are designed to intercept an existing 12V circuit at your fuse box location(s) by adding an additional circuit without the need to cut, splice, or alter your (OEM) original manafacturer equipment (averts voiding an existing warranty). BioFuse fuse taps make for a quality and efficient installation of devices or accessories such as: Dashcams, back-up cameras, LED lights, alarms, stereos, black boxes, GPS units, USB ports, and more.
• FUSE HOLDER BLADE SIZE/GROUP/DIMENSIONS - Regular Standard dual blade / Blade Group Type: ATO, ATOF, ATC, APR, ATS / Fuse holder length: 7 inches (end-to-end) / Fuse holder gauge: 12 AWG (American Wire Gauge).
• FUSE HOLDER TECHNICAL SPECS/COMPATIBILITY - 12 Gauge wire intended for 12-13V DC circuits @ .5-30 amps. Overall voltage rating: DC32V. Automotive and non-automotive use: MARINE, BOAT, CAR, TRUCK, SUV, RV, ATV, UTV, GOLF CART, TRIKE, SNOW MOBILE, and other electrical devices. Refer to your owner’s manual for your specific fuse type and amperage rating.
• FUSE HOLDER MATERIAL/REGULATORY COMPLIANCE - Insulation: Polyvinyl Chloride (PVC). Connectors: ATO type alloy blades with crimp type connector. Conductor: Stranded tinned copper. Wire specifications: Appliance Wiring Material (AWM) 1015 single conductor hook-up wire (red). Rated temperature: -20°C to 105°C with a 600 Vac, 750 Vdc voltage rating. Applications requiring AWM wiring are appropriate for use at temperatures not to exceed 105°C in dry locations.
• WARRANTY/SATISFACTION GUARANTEE - Enjoy peace of mind with our 1-year limited warranty. Should you encounter a defective product(s), BioFuse will repair or replace the defective product(s) at no cost to you. BioFuse is committed to providing customers with high quality products and service. Customer satisfaction is our number one goal. If for any reason you are not completely satisfied with your purchase, we offer a 90-day money-back guarantee.
