12G SDI Single-Mode Dual-Fiber Optical Transceiver Module | High-Speed Video Transmission for Broadcast

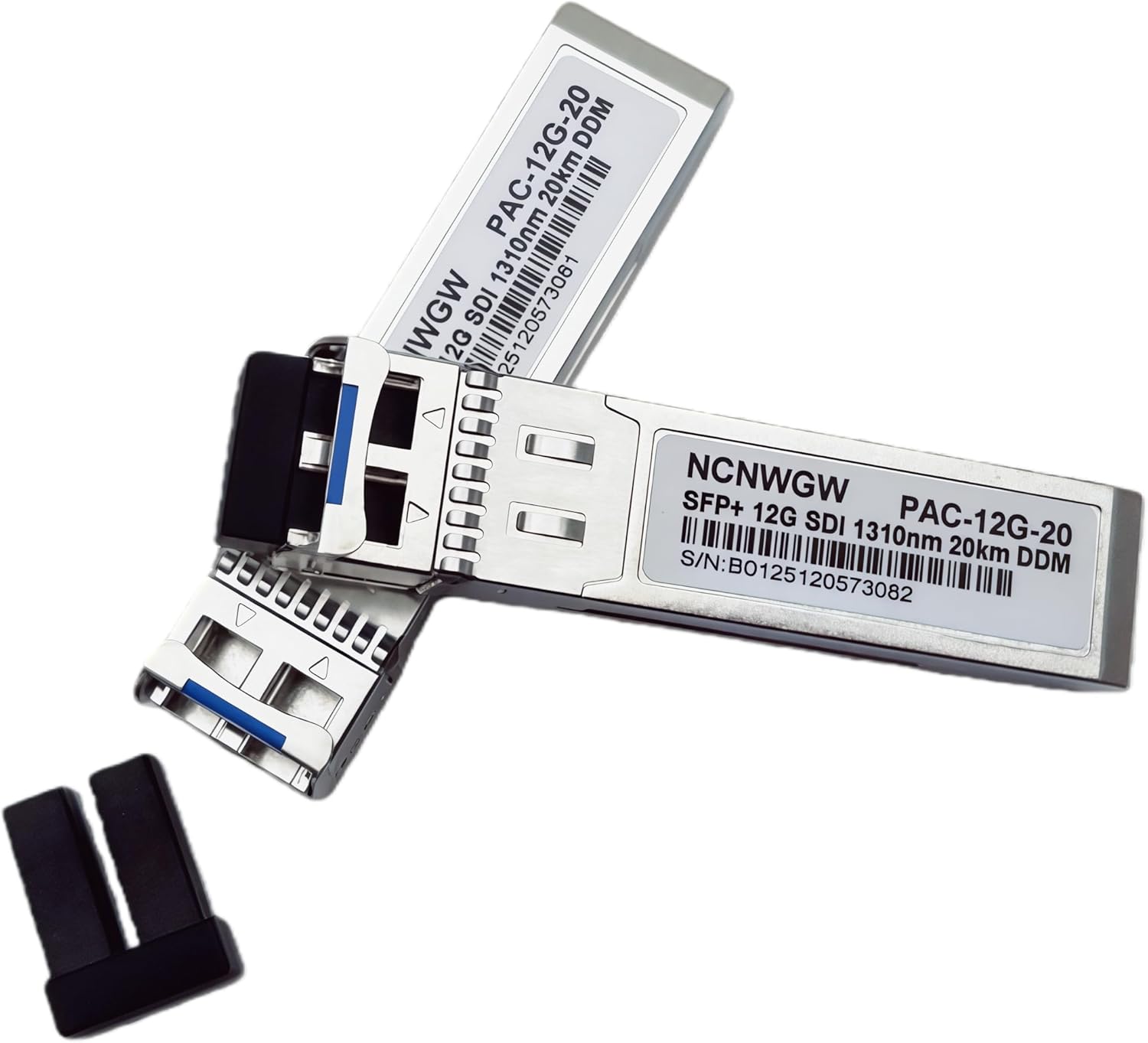

PAC-12G-20 transceiver is an excellent product, which is a series of high performance optical modules suitable for High speed serial links over single-mode optical fiber at signaling rates up to 12.5Gbps.Because of its hot-pluggable capability, PAC-12G-20 SFP transceiver can be installed in or removed from any MSA compliant pluggable small form factor port, regardless of, whether the host equipment is operating or not. Furthermore, PAC-12G-20 SFP+ transceiver supports a DDM function and detailed product’s information that stored for retrieval by host equipment. For further information, please refer to SFP+ Multi- Source Agreement (MSA).The transceiver operates up to 12.5Gbps data-rate from a single +3.3 V power supply.

• The 12G sdi sfp module can support SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SD，Wide Compatibility:The SDI SFP Module is compatible with a range of devices, including Cisco and Dell Force10, enhancing its versatility.
• High-Speed Data Transmission:Achieve seamless 4K video with the 12G SDI SFP Module, delivering rapid data transfer for professional applications.
• Extended Fiber Reach:This SDI SFP Module supports a 20km Singlemode Duplex fiber, ensuring reliable connectivity over long distances.
• Please Note: These are transceivers which send and receive.Two units are needed in order to transmit and receive a signal.
• The sfp don't supports Video Pathological Patterns for SD/HD/3G/6G/12G-SDI
