12V 80Amp Relay Box, 9 Way Pre-Wired Relay Box, 3 Relays and 9 Slot ATC/ATO Blade Fuses, Universal Relay Panel, for Automotive Car Truck Jeep
4.6 (34 items)
Limited Time Sale$18.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212486911 | Release Date | 2026/04/06 | List Price | $12.40 | Model Number | 212486911 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

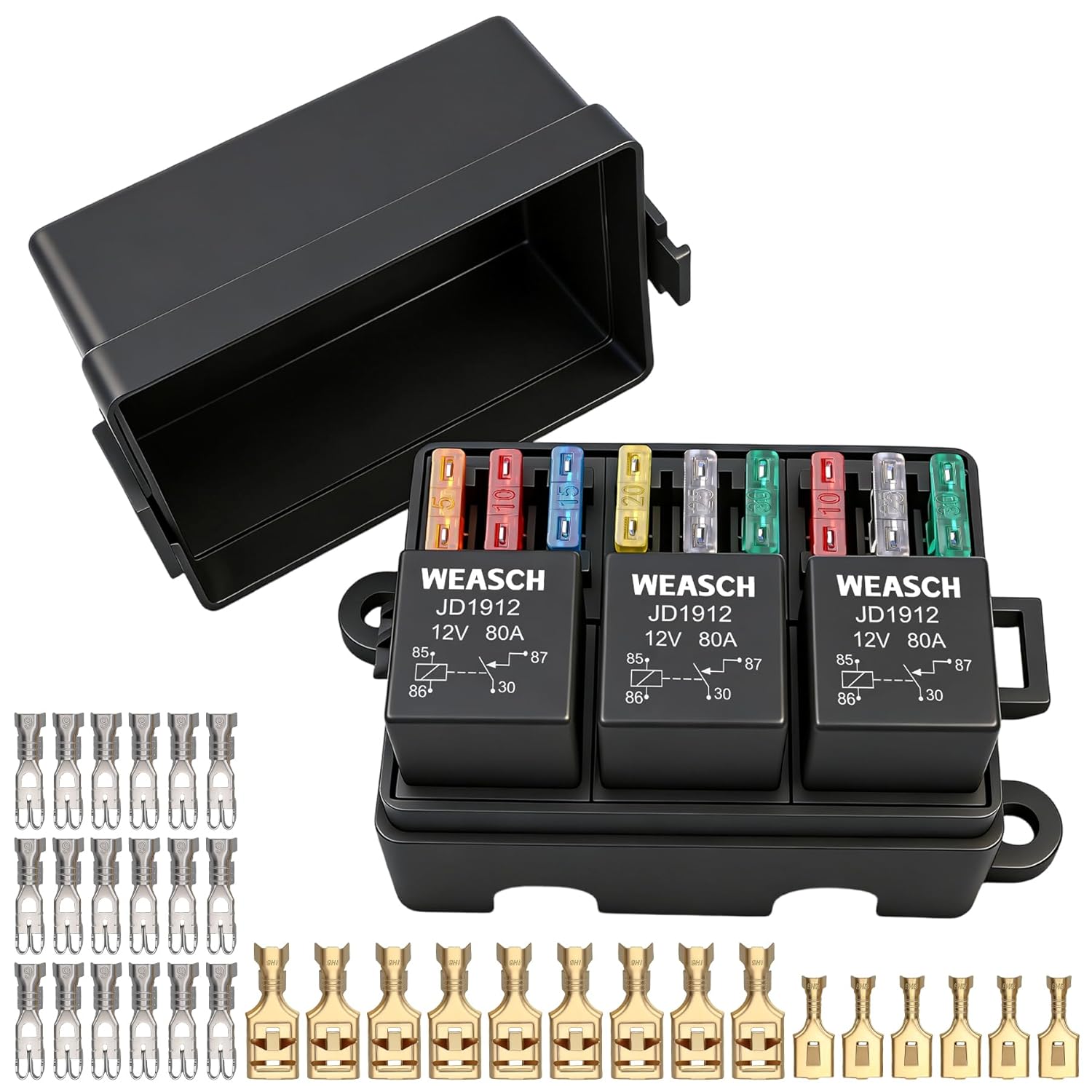

- Specifications: This 12v relay box package includes 3pcs 4Pin 80A JD1912 Relays, 9pcs 5A, 10A, 15A, 20A, 25A, 30A ATC/ATO blade fuses. You can replace these fuses according to actual needs
- Pre-Wired: 30 Power input red and 87 Normally open output pin yellow is 4mm² wire, handling about 25~32Amp; 85 Control positive pin White and 86 relay Parallel black is 0.75mm² wire 3~6Amp; 86 Control negative pin is 1.5mm² black wire 10~16Amp; Fused out is 2.5mm² blue wire 16~25Amp. Refer to the wiring diagram for details, Please carefully check if the wire gauge meets your requirements before purchasing. We also offer a wireless version for DIY projects
- Dustproof: This fuse relay box includes a top cover and bottom cover. Can block most dust from entering the 12V relay box, and protect electrical components from being touched by wires, effectively improving usage safety. Note: No waterproof bottom, Don't completely immerse the product in water!
- Double Protection: The relay box is equipped with 9 fuse slots, 3 of which are wired in series with the relays to provide double overcurrent protection for the circuit. Protecting your equipment from damage and ensuring electrical safety
- Application: This fuse relay box is suitable for allmost types of vehicles, including 4x4s, Jeep SUVs, UTVs, ATVs, RVs, pickups, trailers, campers etc. It provides a versatile solution for managing electrical systems in a variety of vehicles, ensuring reliable performance and electrical safety
| Model | FB93KA |
|---|---|
| Brand Name | Weasch |
| Part Number | FB93KA |
| Coil Voltage | 12 Volts (DC) |
| Contact Type | Normally Open |
| Manufacturer | Weasch |
| Mounting Type | Screw Mount |
| Connector Type | Crimp |
| Current Rating | 80 Amps |
| Operation Mode | Manual |
| Contact Material | Copper |
| Specification Met | CE |
| Included Components | FB93KA |
| Warranty Description | No |
| Contact Current Rating | 80 Amps |
| Minimum Switching Voltage | 12 Volts (DC) |
