12V DC 30 inch Stroke Linear Actuator Electric Cylinder with Mounting Brackets Max Force 44 pounds High Speed 1.8" per sec Square Tube 7/4"(W) x7/4"(H) (Slotted Shaft End)

flash sale iconLimited Time Sale
Until the end
19
12
18

$59.99 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New  $99.99
quantity

Product details

Management number 211204601 Release Date 2026/04/04 List Price $40.00 Model Number 211204601
Category

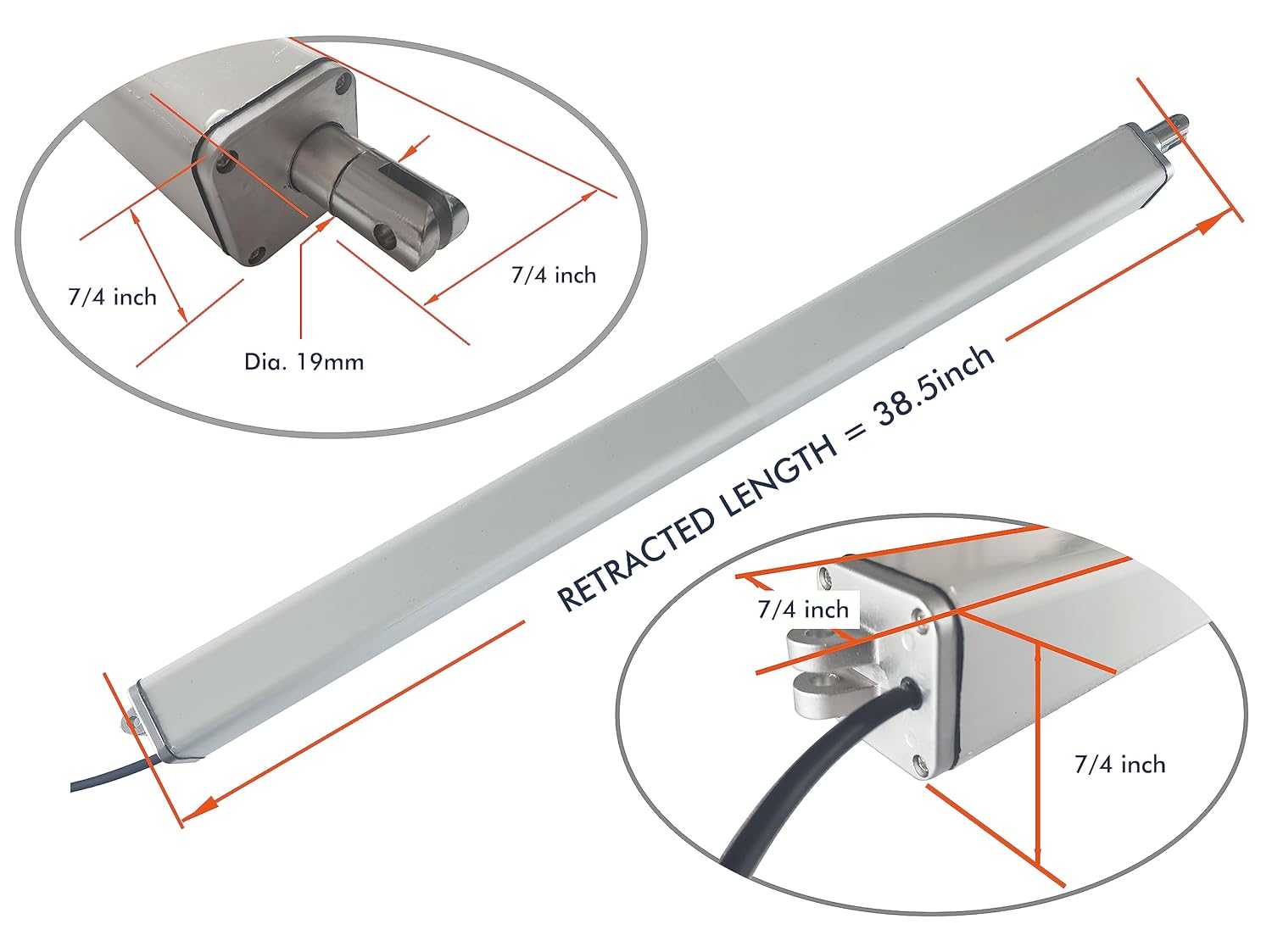

  • Stroke Length=30"(762mm), Retracted Length(Installation Length of hole to hole) =38.5"(977mm), Max Extended Length(hole to hole)=68.5"(1739mm)

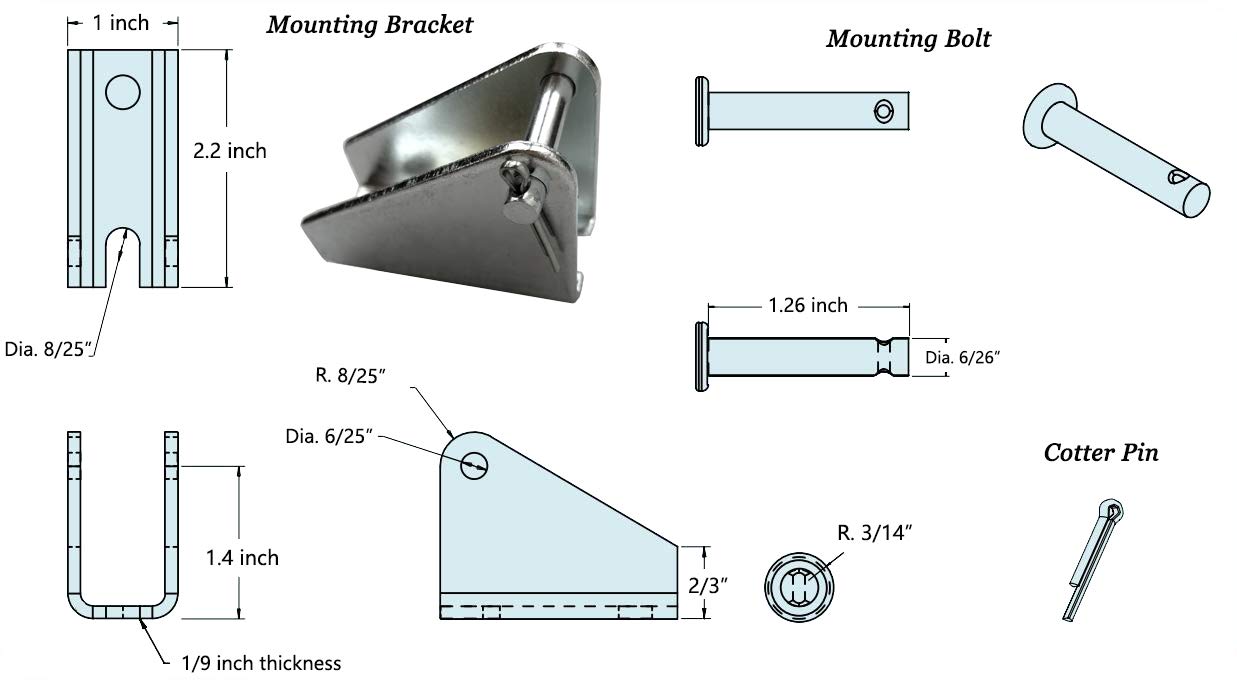

  • Push Force 44 pounds (200N), No-load Speed: 1.8 inches (45mm) per sec. Starting Current 0.3A, Max Current 2A. Come with a pair of mounting brackets
  • The Protection Class is IP65, suitable for Indoor and Outdoor use. The Duty Cycle is 25%, Built-in Limit Switch. 6mm diameter Mounting Holes. The actuator adopts Slotted Shaft End
  • The actuator adopts In-line design, square tube dimension: 7/4"(W)*7/4"(H). It has Smaller Volume than which actuator with external motor. Compact structure and smooth operation, used for Limited Space
  • Application: 1. As adjuster for your solar panel and tracker. 2. As automatic opener for your coop, gate, door, window, shutter skylight and so on. 3. Other uses: Industrial engineering and medical equipment which need linear motion
Item Weight 6.04 pounds
Manufacturer SOViK
Item model number S200-762-12-20
Product Dimensions 39 x 1.8 x 1.8 inches
Is Discontinued By Manufacturer No
