1Pack Watt Meter Digital Multimeter,DC 8-100V 100A Battery Monitor 12V 24V 36V 48V 60V Volt Amp Meter,2.4 Inch Big Color Screen LCD Display Voltmeter Multimeter Solar Battery Tester with Manual

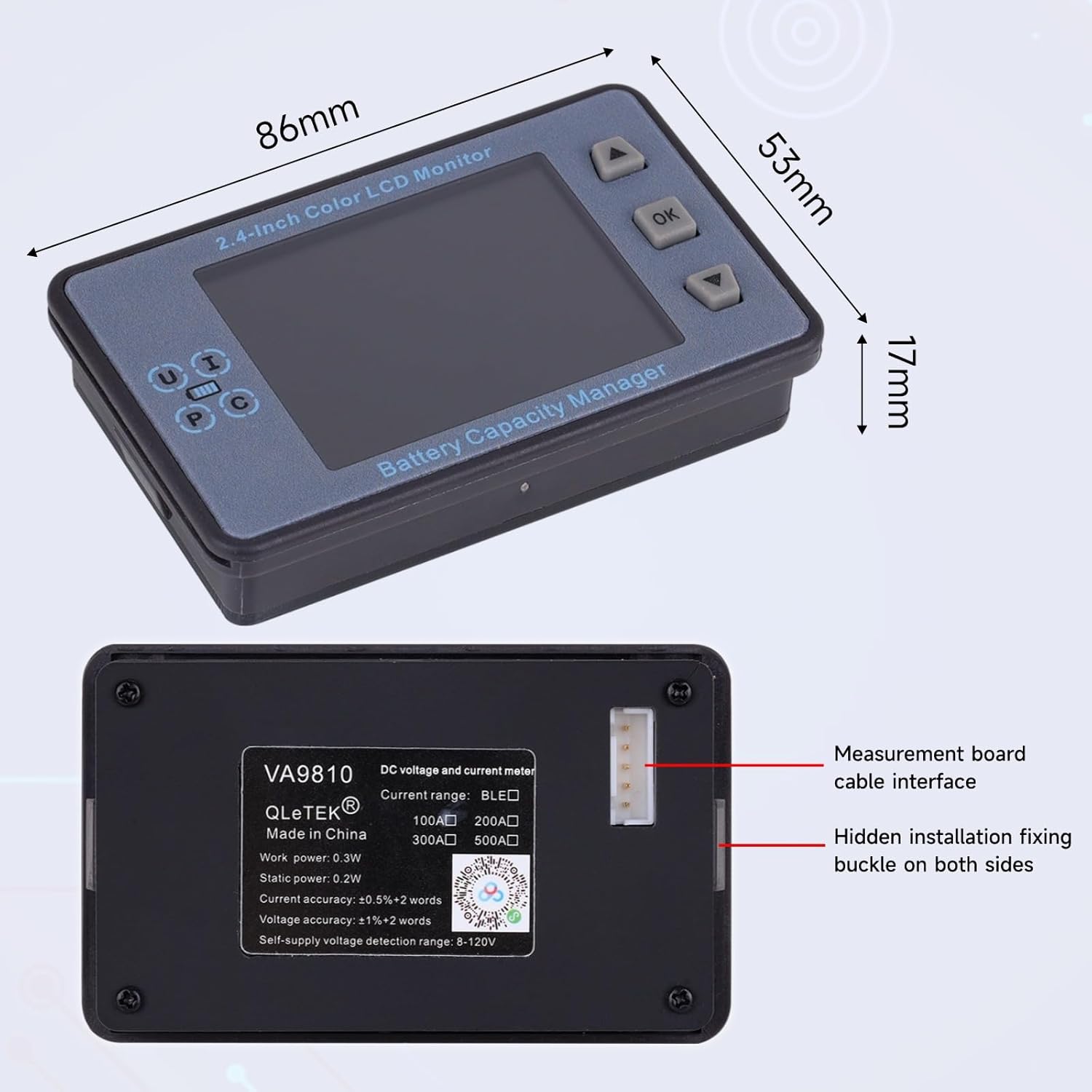

DC 8-100V Coulombmeter 100A Parameter Voltage: 8-100V Current: 0.05-100A Capacity: 0.1-99999AH Power: 50KW Voltage Precision: ±1% + 2 digits Current Precision: ±0.5% + 2 digits Measure Speed: 20 Times per Second Display Board Size: 86*53*17mm/3.39*2.08*0.67in Measure Board Size: 56*36*34mm/2.20*1.42*1.34in Function 1.CLR: current clear function. When no-load current is not zero, enter this function, Short press ▲ to clear the no-load current. 2.BAT: set battery total capacity. 3.BPC: set available capacity percentage. 4.LED: set LCD screen backlight brightness. Level 0-10 can be adjusted 5.STE: set screen turn off time. when working time is longer than the set time, screen will auto turn off. 6.STI: set current value for turning off screen. When measure current is lower than the set value, screen will auto turn off. When measure current is higher than the set value, screen will auto turn on. 7.BKC: set the screen display colors, total 2 colors to choose, black-white and colorful. 8.LAG: set the language(English/Chinese). 9.LVP: Low voltage alarm. When voltage is lower than LVP value, the capacity will auto clear. 10.LBR: turn on/off backlight alarm. After turning on LBR, when the remain capacity is lower than 20% or voltage is lower than LVP, the backlight will flashing to alarm. When charging current is higher than STI, the backlight will also flash. 11.ADS: Communication Address. 12.PAI: the value of current clear. After no-load current clear, the shunt might make current higher than zero, which can set PAI. When current is lower than the set value, the current value will zero. 13.OVP: the voltage value of max capacity. When battery voltage is higher than OVP, the capacity will auto fill up.

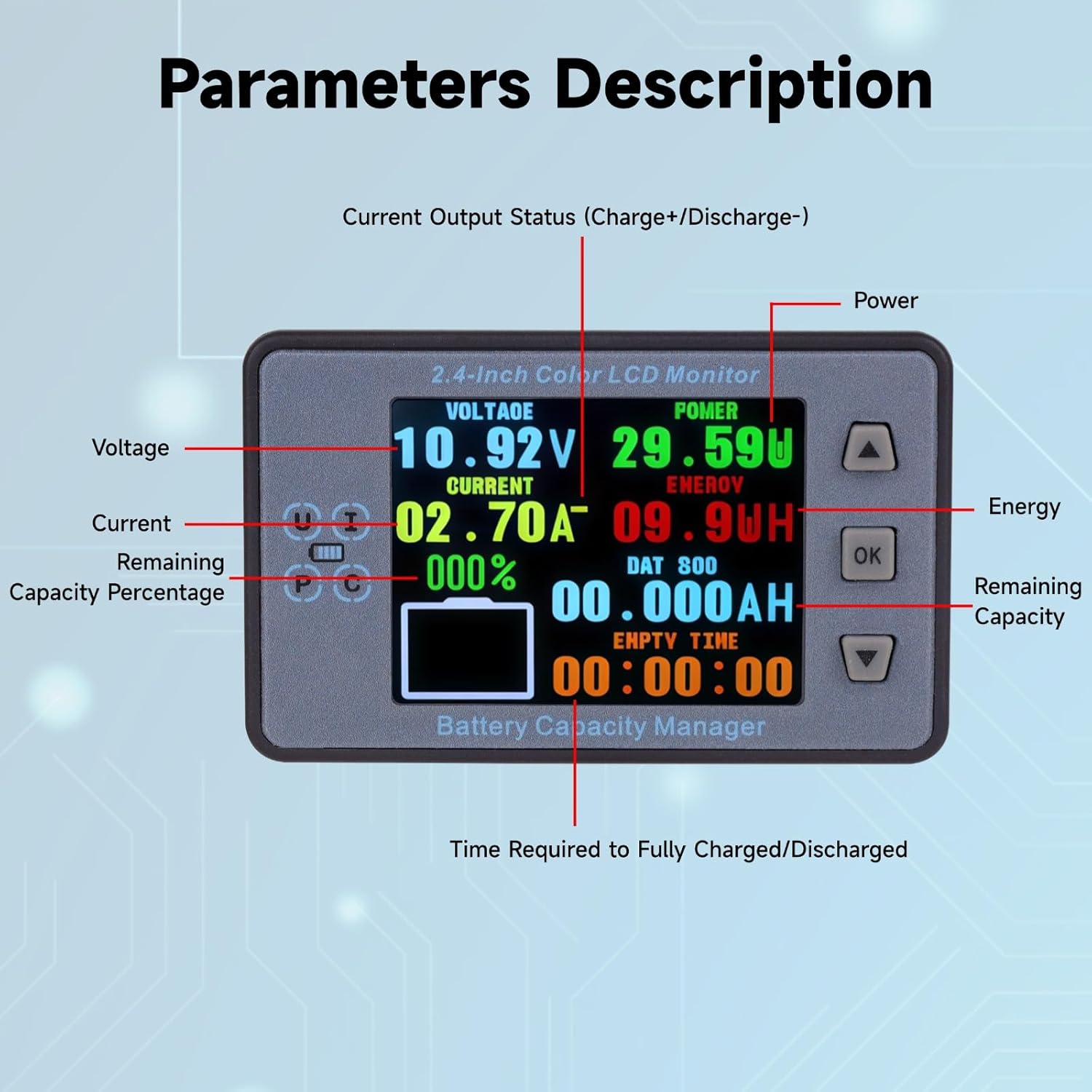

• 【voltmeter multimeter】The battery monitor is a multi-function instrument that can display voltage, real-time current, and real-time power in real time Rate, remaining capacity, use time of a variety of physical parameters, the instrument uses 2.4-inch color liquid crystal,For the display, the display data is comprehensive, clear, and easy to observe.
• 【Digital multimeter parameters】---Voltage range: 8-100V; Current range: 0.05-100 A; Power: 0-50KW; Capacity: 0.1-9999 9AH; Voltage accuracy: ± 1% + 2 bits; Current accuracy: ± 0.5% + 2 bits; Measurement speed: 20 times/second; Display screen: 2.4 inch color display
• 【High-quality materials】The multimeter adopts high-quality industrial-grade ABS, which has the characteristics of impact resistance, high temperature resistance, etc,The PVC flame retardant material shell is safe and reliable
• 【Backlight Alarm】After turning on the LBR function, when the remaining capacity is lower than 20% or the voltage is lower than the LVP; the backlight will flash alarm. When the charging current is higher than the STI (the current value of turning off the screen), the backlight will also flash.
• 【Application scenarios】It can be used as a battery charge and discharge tester and coulometer for cars and car batteries; as a battery capacity monitor for solar panels; as a voltmeter, ammeter, RV ship power meter, etc. With base installation, it is more stable.
