1pc DIN Rail Cabinet Temperature Controller Industrial Thermostat KTO011 KTS011 0 to 60 Degree Centigrade Mechanical Thermoregulator(NC -10 to 50 Degree)

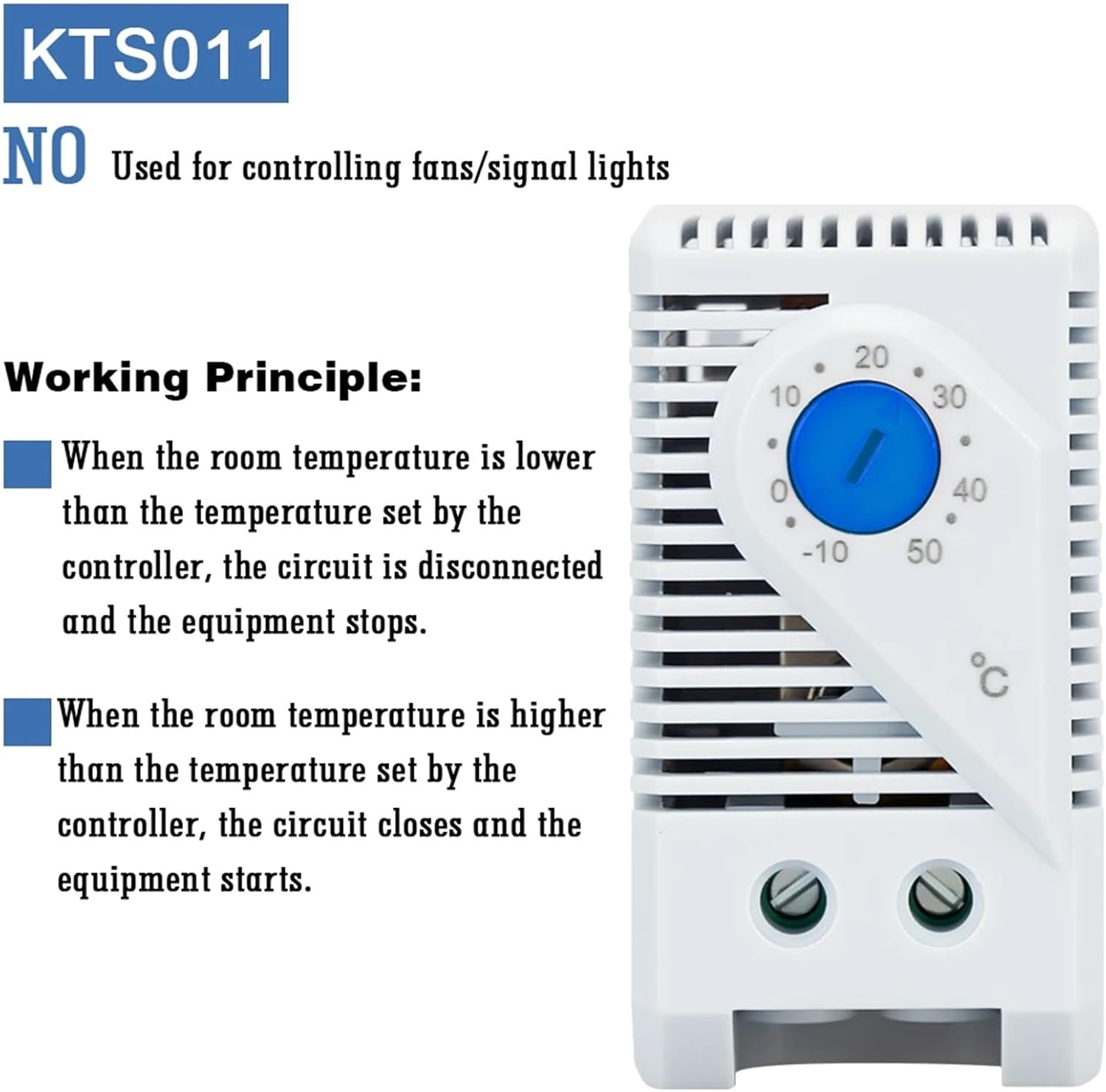

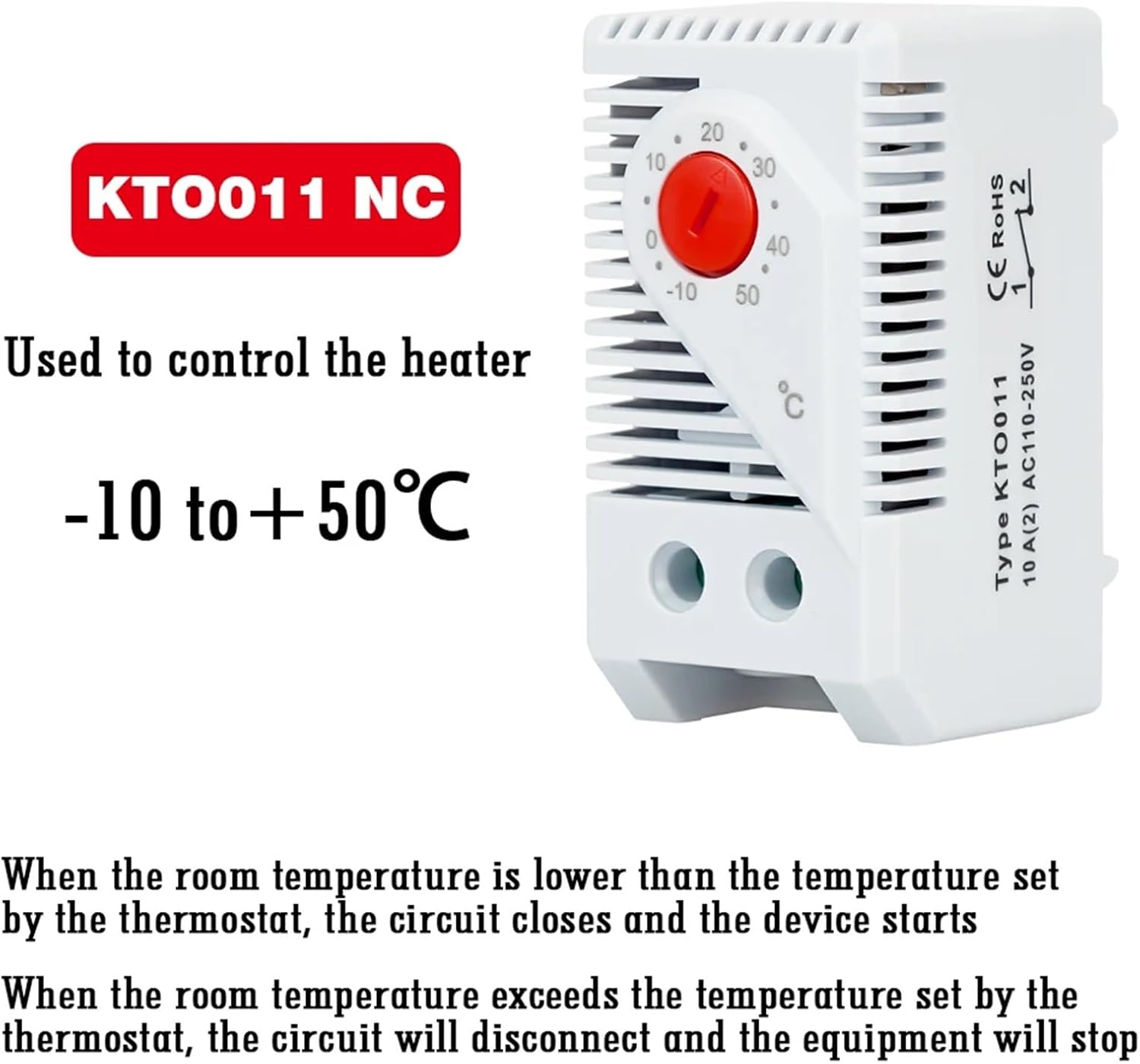

Temperature Controllers0-60 -10-50 KTO011 KTS011 HY-TC601 HY-TC602 ZR011 DIN Rail Mini Compact Bimetallic Thermostat Mechanical Temperature Controller Normal Open ClosedKTO 011:HeatThermostat (normally closed); contact breaker for regulating heaters.KTS 011: CoolThermostat (normally open); contact makerfor regulatingof filter fansandheat exchangers or for switching signal devised when temperature limit has been exceeded.ZR 011:Heatand Coolcombined;control the heating and cooling devices independently.Applications:The small mechanical temperature regulators are used to control electric heaters or cooling filter fans in electric cabinets, which are accidents caused by temperature factors. Widely used in communications, wind power generation, firefighting equipment, ships, petrochemicals, large factories, coastal factories, docks, water treatment facilities, equipment, etc.In addition, they can also be used as switching contacts for signal devices used as low-or high-temperature alarms. The adjustment range is0 to 60. This product has the characteristics of easy installation, small size and long service life. It can automatically start electric heaters and fans, produce condensed water droplets, maintain a good working environment, and protect components. It can be fixed on DIN standard rails (DIN15, DIN32, DIN35)Product Description:Switch temperature difference: 7K (± 4K tolerance)Control temperature range: 0~60°C ,-10-50Sensor element:Thermostatic bimetalContact type:snap-action contactService life:> 100,000 cyclesConnection:clamping 0.5Nm max., rigid wire 2.5mmMounting:clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series)Casing:plastic,light greyOperating / Storage temperature:-45 to +80°C Operating / Storage humidity:max. 90 % RH (non-condensing)Protection type:IP20Features:The shell of our thermostat is made of plastic material with fine workmanship, environmental-friendly, safe, to use.Its temperature controlling range is from 0°C to 60°C, perfect for using to control heater, filter fan, cooling equipment and other signal device in your home, market and so on.It has a large data scale and an adjustable button is for easy and convenient to adjust the controlling temperature, and the button color(red/blue) of thermostat could be choose for you.Adopting standard rail clip design, 4 feet holders, easy to install and disassemble.Circuit interfaces in the bottom of thermostat can make wire connection become more sturdy and safer.Setting recommendations:The hysteresis (switching difference) of the temperature control should be take in account:7K ± 4K (K= Kelvin)In order to determine the actual set point of the normally closed contact and change-over contact (when used asnormally closed contact), the maximum rated hysteresis should be ad-ded to the required minimum operating temperature.Example for Red KTO011 for heating:Required minimum temperature in enclosure: 5°C (41°F)Hysteresis of temperature control: +11K (=7K ± 4K)Set point on adjustment knob: 16°C (61°F)==========Battery Included : NoHigh-concerned chemical : NoneElectronic : NoTheory : Temperature ControllerDisplay Type : AnalogPower Type : NoneModel Number : KTO011 KTS011 ZR011Display Size : 1.9 Inches & UnderMax Measuring Temperature : 50°C - 69°CStyle : Standing StationUsage : IndustrialIs Smart Device : NoContact type : Snap-action contactContact Resistance : less than10m Omegainstallation : 35mm DINStorage temperature : -45-80Shell material : Plastic UL94Switch temperature difference : 7K(±4K)Control Temperature Range1 : 0-60 Celsius °CControl Temperature Range2 : -10-50 Celsius °CControl output type 1 : Red color Normal ClosedControl output type 2 : Blue color Normal OpenControl output type 3 : Normal Closed and Normal OpenFunction : Bimetallic Mechanical Thermostat
