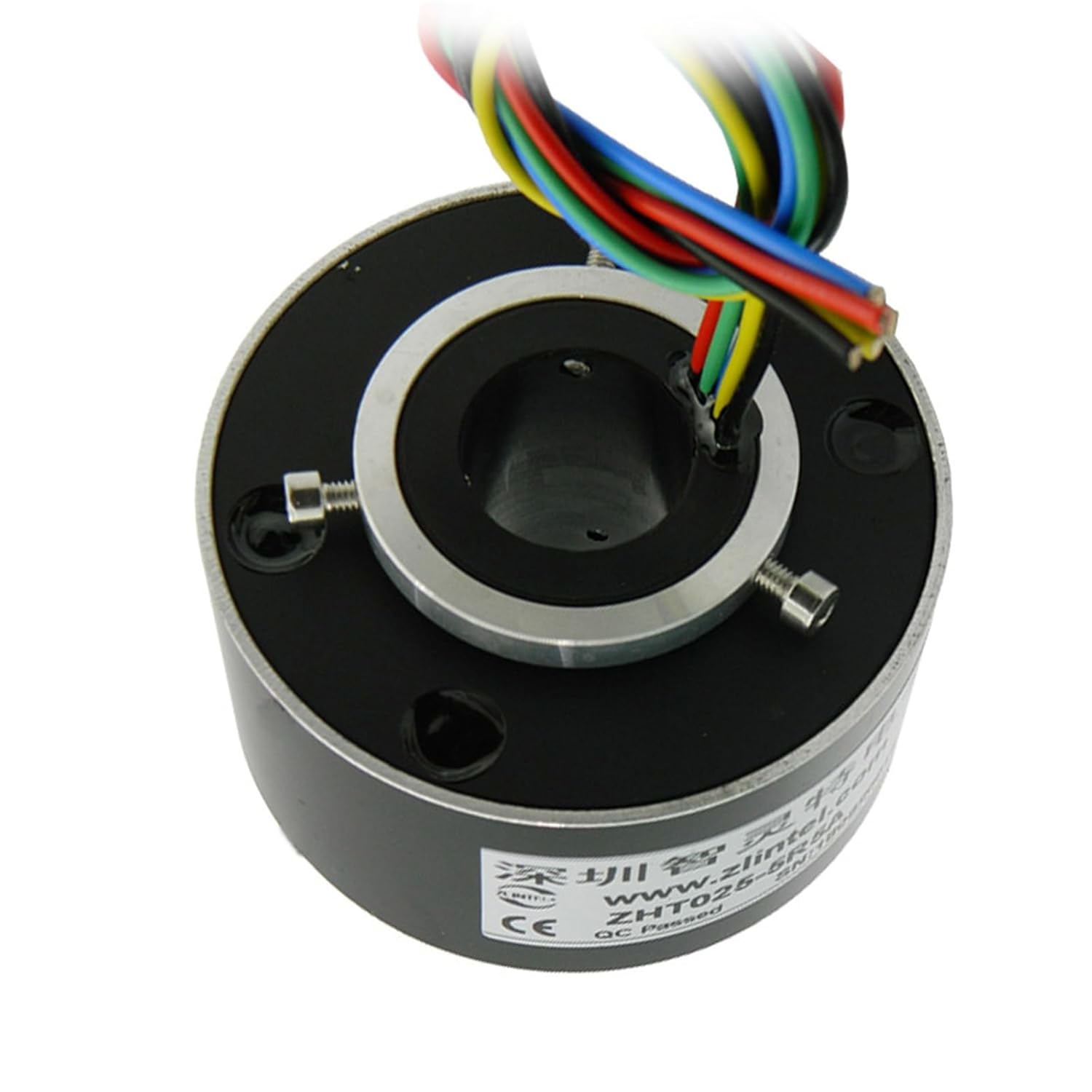

1PCS Aperture 25mm, 6-Way 10A Rotating Platform Precision Conductive Slip Ring Guide Tube Power via Hole

1PCS aperture 25mm, 6-way 10A rotating platform precision conductive slip ring guide tube power via holeModel: ZHT025-6R10AMaterial number: ZHT025-6R10AScope of application: Robot arms, rotating platform equipment, wind power generation equipmentName of electrical equipment: Robot arm, rotating platform equipment, wind power generation equipmentmodelZHT025-6R10ANumber of channels6Rated current10 A/wayRated voltage240VAC/DCSpeed0-250rpminner diameterø25mmContact materialPrecious metalShell materialAluminum alloydynamic resistanceMinimum 1mΩelectrical noise<;10mΩ,50mA,5RPMWire specificationsAWG16 silver plated TeflonCompressive strength500VDC@50Hz,10sWire lengthStandard 250mmDielectric strength500mΩ@500VDC,10sProtection levelIP54working temperature-20℃ ~+60℃Working humidity10%-85% RHWhy choose slip rings?When the connection between electrical and mechanical parts needs to provide 360° unrestricted continuous electrified rotation, we usually encounter the problem of wire twisting and twisting. At this time, the use of conductive slip rings can completely solve the problem of twisting or twisting of wires. , with the continuous innovation and advancement of technology, conductive slip rings can simultaneously provide large current power transmission and signal rotation connection.

• 1PCS aperture 25mm, 6-way 10A rotating platform precision conductive slip ring guide tube power via hole
