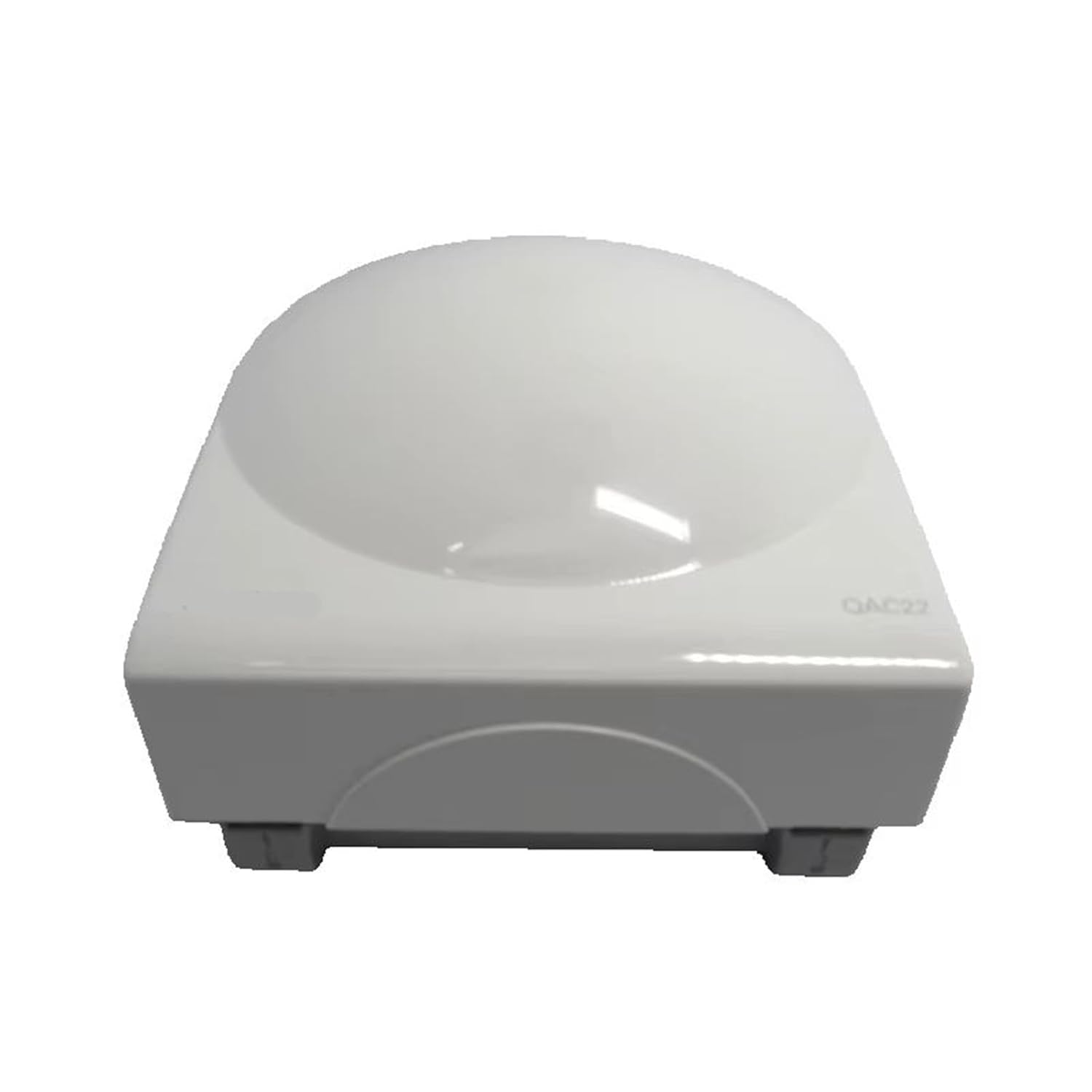

1Pcs Temperature Outside Sensors QAC22 for Acquiring The Outside Temperature LG-Ni1000

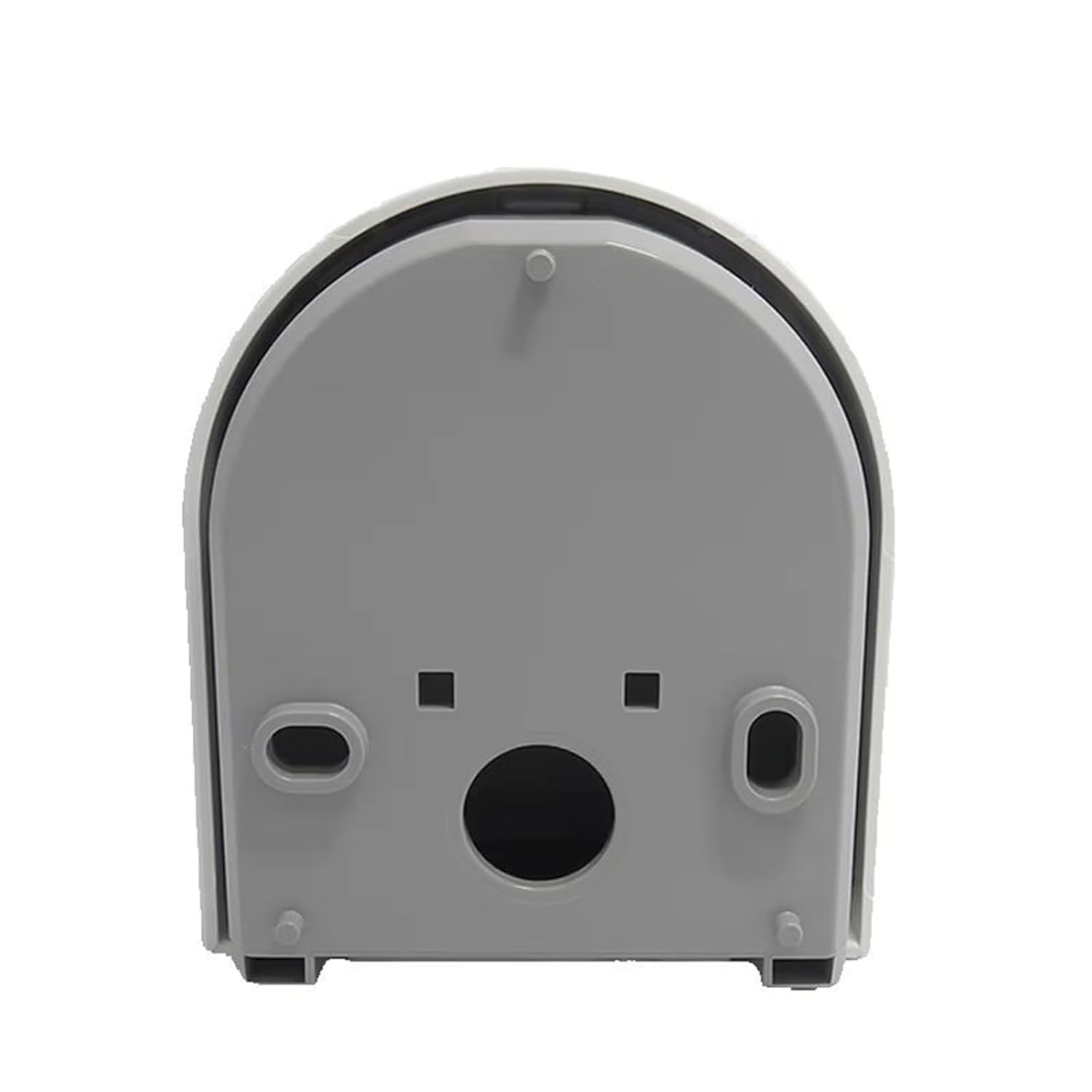

Temp Control SensorOutdoor sensor for acquiring the outside temperature and to a lesser degreesolar radiation, the effect of wind and the temperature of the wall.UseIn Heating, ventilation and air conditioning plants as a:reference sensor for wheather-compensated controlmeasuring sensor, e.g. for optimization, or for measured value display, or for connection to a building management system.Type summaryTypSensing elementRange of useTime constantAccuracyQAC22LG-Ni 1000-50...+70 approx. 14 min±0.4 K at 0Sensing elementsMechanical designThe sensor has a plastic casing with a removable cover.The connection terminals can be accessed after removal of the cover.Cable entry is either from the rear (concealed wiring) or from below (surface-run wires).A cable entry gland Pg11 can be screwed into the bottom of the casing.Protective dataDegree of protection of housing IP 54 to IEC 529Insulation class III to EN 60 730Electrical connectionsScrew terminals for 2 x 1.5 mm 2 or 1 x 2.5 mm 2Cable entry for Pg 11 cable clandEnvironmental conditionsOperationClimatic conditionsTemperature 50...+70 °CHumidity 0...100 % r. h.Storage/transportation to IEC 721-3-2Climatic conditions Class 2K3Temperature 25...+65 °C<;95 % r. h.Mechanical conditions Class 2M2Materials and colorsBase Plastic (ASA)Cover Plastic (ASA), RAL9003Packaging CardboardWeightWithout packaging approx. 0.076 kgWith packaging approx. 0.093 kgInternal diagramThe connecting wires are interchangeable.Dimensions (in mm)==========Actuator Mode : With Manual And InstructionStructure : RegulatingMaterial : PlasticTemperature of Media : Normal TemperaturePower : SolenoidPressure : Medium PressureModel Number : QAC22
