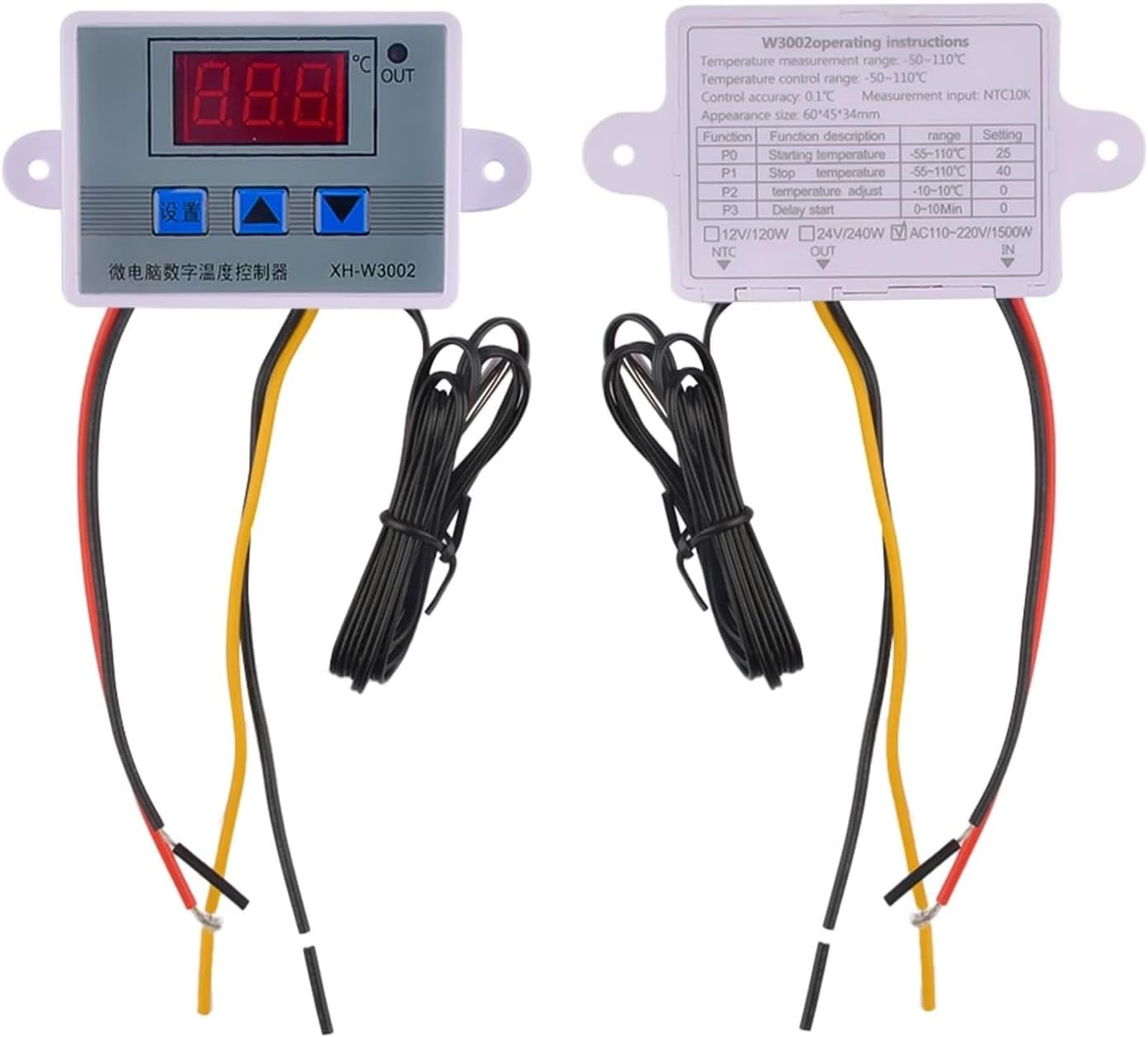

1PCS W3001 W3002 Temperature Controller Thermostat 10A 12V 24V 220V LED Digital Microcomputer Control Multifunctional Thermoregulator(W3002 DC12V)

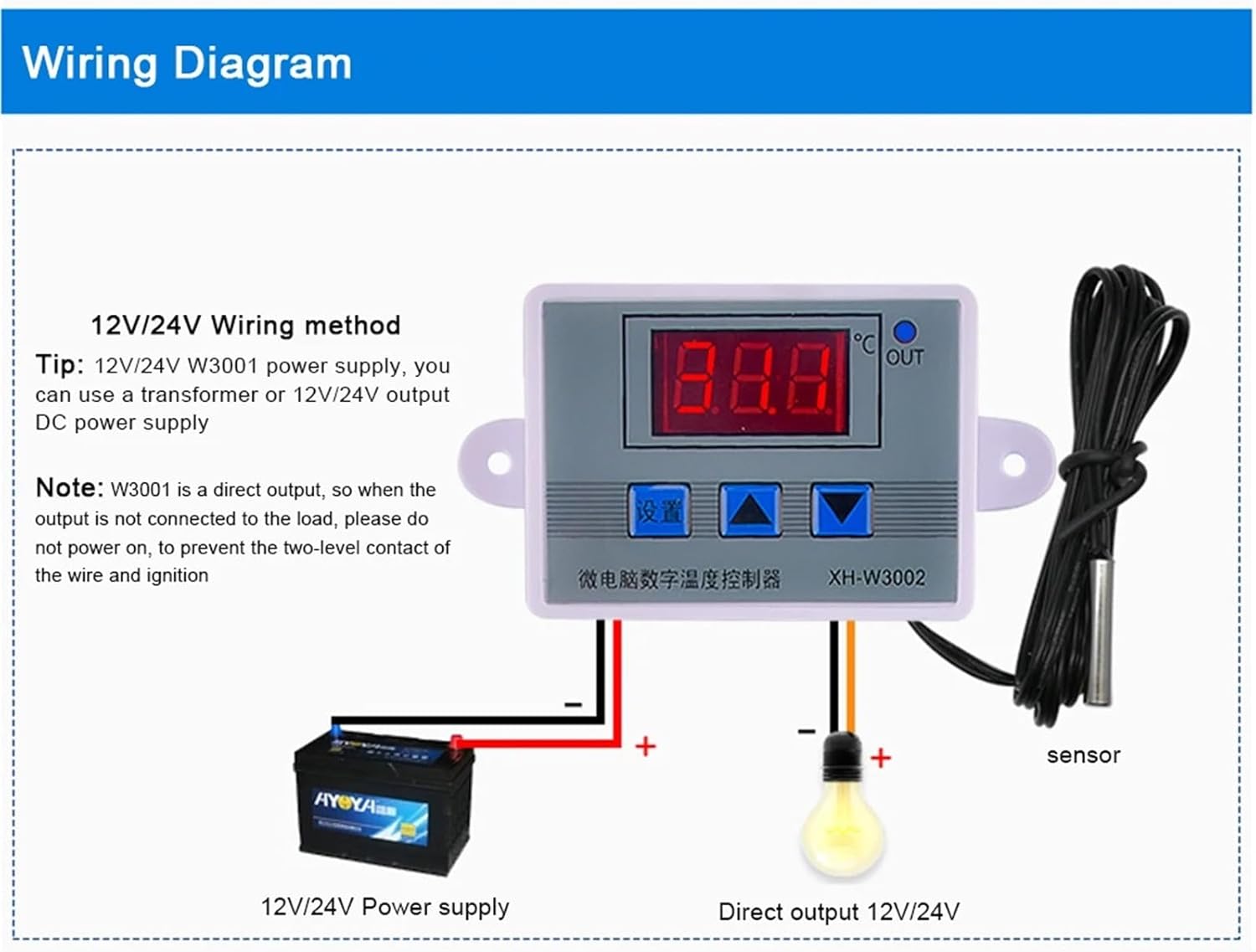

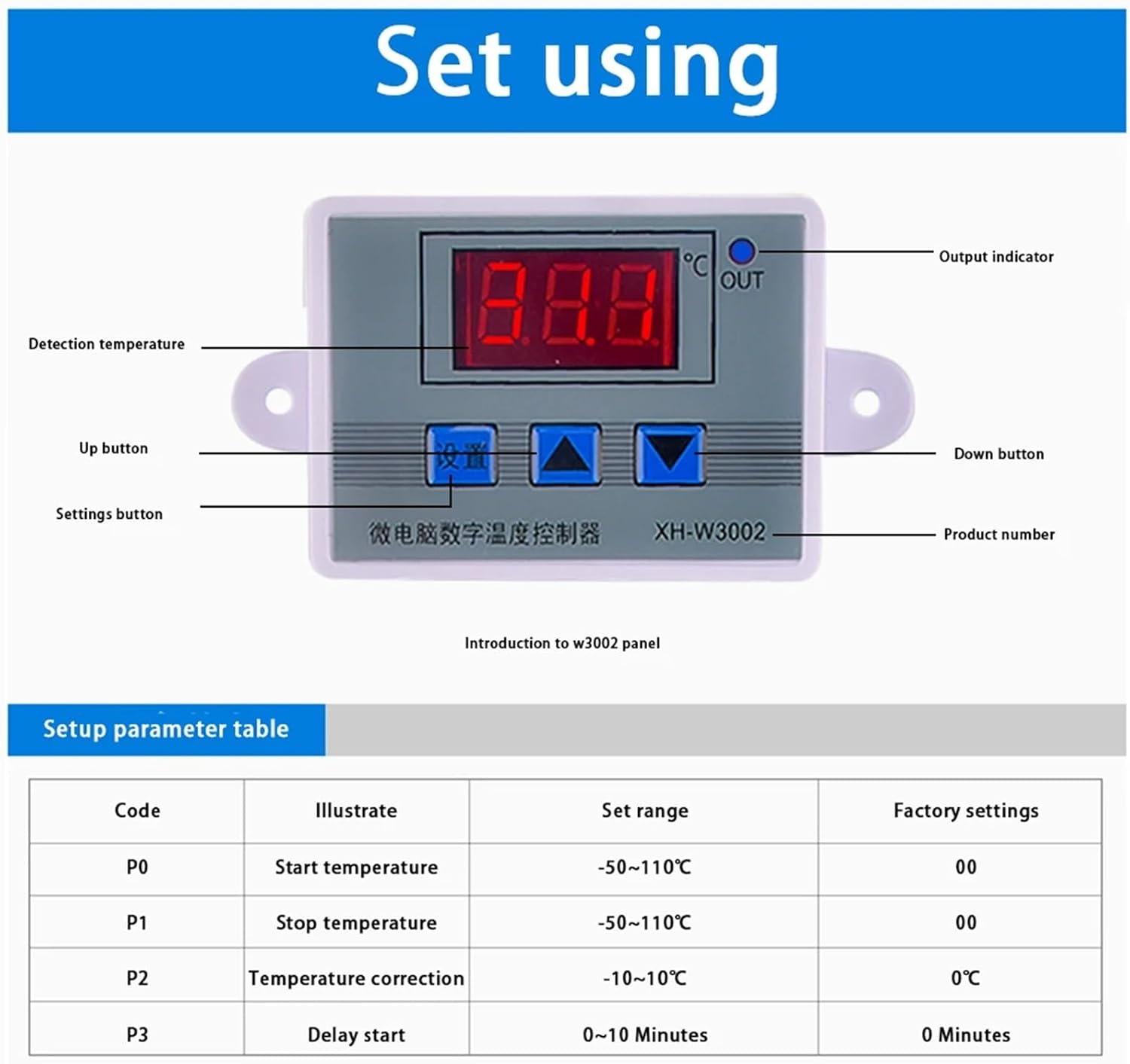

Thermostat ControllersProduct Description:-Automatic mode-Wide temperature control range-High temperature control accuracy-Reverse connection protection-Easy installation1.The high-brightness digital tube clearly displays, whether it is used during the day or at night, it can be read clearly.2.The sensor can be replaced at will by using the 2P terminal. When you need to use other probes, you can replace it at will.3.ABS material shell, exquisite and beautiful, high mechanical strength, good electrical performance, anti-aging.4.-50~110 ultra-wide temperature control range, can be used in various temperature control fields, 0.1 temperature control accuracy, to meet your control needs.5.Wiring input and output design, more convenient to use in various industrial control equipment, multi-strand wire 300V/20A over-configuration, safe and reliable.Package list:1* ThermostatProduct parameters: XH-W3001Supply voltage: 12/24/220VTemperature measurement range: -50~110Temperature control range: -50~110Temperature control accuracy: 0.1Load power: 120/240/1500WMeasurement input: NTC10K waterproof probe L=1 meteroutput type: direct outputOutput capacity: max 10AInstallation hole distance: 73mm (aperture 4mm)Appearance size: 60*45*31mmProduct parameters: XH-W3002Temperature measurement range: -50~110Temperature control range: -50~110Temperature measurement accuracy: ±0.2Temperature control accuracy: ±0.1Measurement input: NTC10K L=1 meter waterproof probeInput power: 12/24/220VOutput power: 120/240/1500Woutput type: direct outputOutput capacity: max 10AInstallation hole distance: 73mm (aperture 4mm)Appearance size: 60*45*31mmXH-W3001 Instructions1.To set the startup temperature:-Press the up button once, the startup temperature will be displayed, long press the up button for about 3 seconds, the startup temperature number will flash, and the desired temperature value can be set by the up and down buttons.2.Set stop temperature:-Press the down button once to display the stop temperature, long press the button for about 3 seconds, the stop temperature number will flash, and the desired temperature value can be set by the up and down buttons.3reset:-When the power is on, press the up and down keys at the same time, the digital tube displays 888 and then automatically jumps to the detection temperature, that is, restores the settings.XH-W3002 InstructionsP0 set startup temperature:-Press the setting button once to enter the internal menu, the default display is P0, press the setting button again, and set the required startup temperature by pressing the up and down buttons.P1 set stop temperature:-Press the setting button once to enter the internal menu, the digital display is P0, switch to P1 by pressing the up and down buttons, press the setting button again, and set the desired stop temperature by pressing the up and down buttons.P2 Set temperature correction:-Enter the internal menu in the same way, switch to P2 by pressing the up and down buttons, press the setting button again, and set the required calibration temperature by pressing the up and down buttons. In the setting, if the detected temperature value is 0.5°C higher than the actual temperature value, the calibration temperature to be set is -0.5°C. If the detected temperature value is 1°C lower than the actual temperature value, the calibration temperature to be set is 1°C. Detected temperature±corrected temperature=actual temperature.P3 set delay start:-Enter the internal menu in the same way, switch to P3 by pressing the up and down keys, press the setting key again, and set the required delay time (unit is minutes) by pressing the up and down keys. Delay start is generally used for compressor refrigeration. If it is used for refrigerator freezers, this value needs to be set. According to the size of the compressor back pressure, the general setting value is 3-6 minutes. If you are not used to control the compressor or do not need delay time function, skip this item directly.
