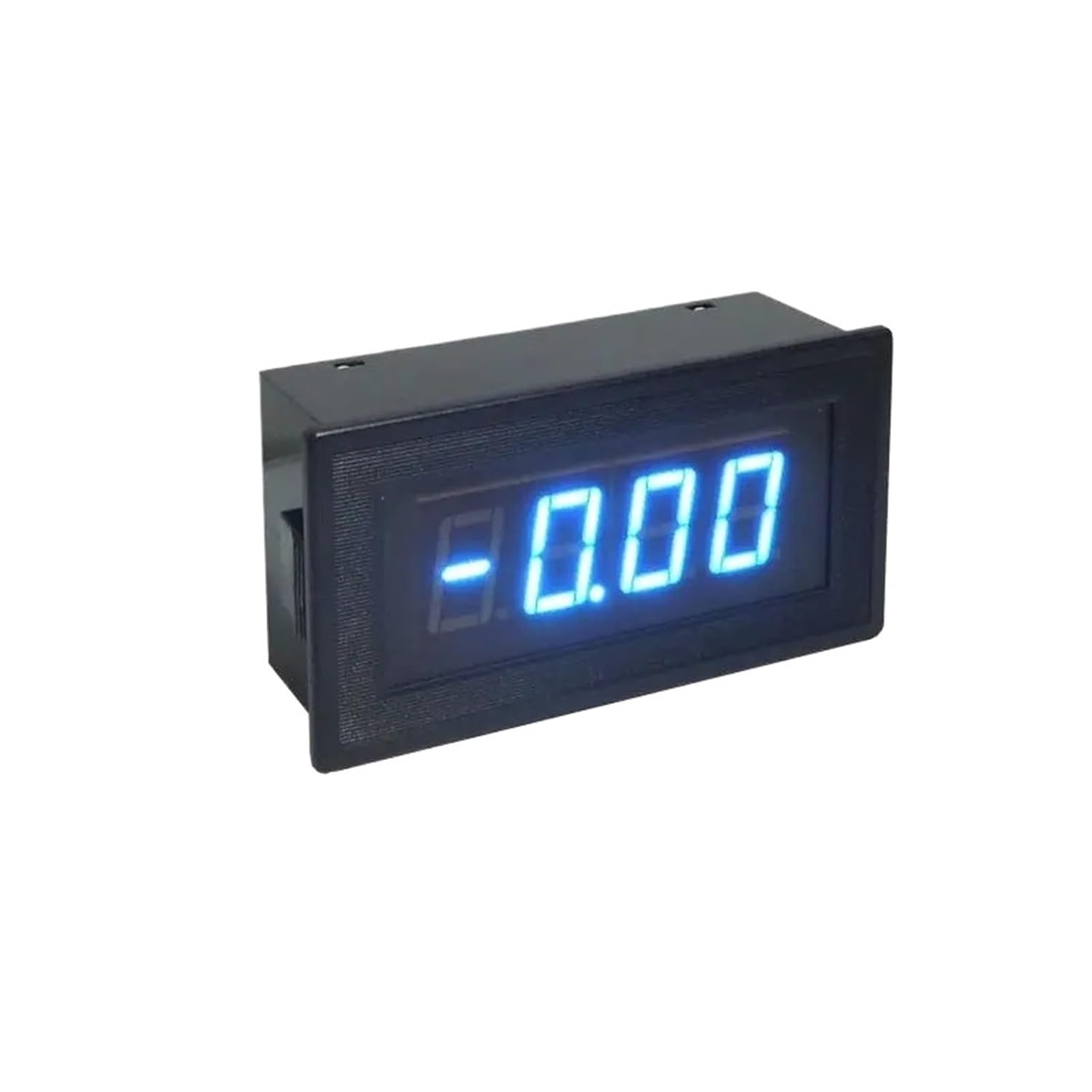

1Pcs YB5135B Digital DC Current Meter Display 2 20mA 200mA 2A 5A milliamp Amp Gauge 10A 20A 50A 100A 200A 500Adc Milliampere Ammeter(Blue,DC5A)

AmmetersYB5135B LED Digital DC Current Meter Amp Meter 20mA 200mA 2A 5A 10A 20A 50A 100A 200A 300A Micro Ammeter Power Supply AC100-240VAttention:1.Below 10A or 10A: all direct measurements, built-in sampling resistance, no external shunt or sampling resistance.2.More than 10A: not include a shunt. It is necessary to take a shunt of 75mV to work, even if 0.1 A. Or it will be burnt.3.If you have a shunt ,please note the shunt specification.(75mV is for company's standard)Technical Parameters:Power supply: AC100-240V<;0.5W Test Current:DC200uA/2mA/20mA/200mA/2A/5A/10A/20A/30A/50A/100A/200A/300A/500A/1000ADimension:79*43*25 mmMounting hole:76*39.5mmDisplay mode: 0.56 "LED with red/blue digitsMeasurement accuracy: 0.5% (± 2 digits) Measuring speed: 2 times/S Specification:Package Include:1 piece* LED Digital DC Current MeterConnection Diagram:Working conditions:Operating temperature: -10 ~ +50 Working humidity: 10 ~ 80% (no condensation)Working pressure: 80 ~ 106kPaSun exposure: no direct exposure==========Hign-concerned Chemical : NoneDimensions : 79*43*25mmOperating Temperature : -10~50 degreeSupply Voltage : AC100-240VAccuracy Class : 0.5%+/-2 digitsModel Number : YB5135BDisplay Type : Digital OnlyDIY Supplies : ELECTRICALOrigin : Mainland Mounting holes : 76*39.5mmWorking humidity : 10 ~ 80%Working pressure : 80 ~ 106kPaDisplay : 0.56''LED(red/blue)Test current : DC200uA/2mA/20mA/200mA/2A 5A 10A 20A 30A 50A 100A 200A 300A 500A 1000A<;0.5WMeasuring speed : Twice per secondWeight : 53gFeature : Forward and backward current can be measured
