21.5" 1920x1080 2000nit High Brightness 3000:1 Contrast Ratio IPS LCD Display and VGA USB AV LVDs Driver Board

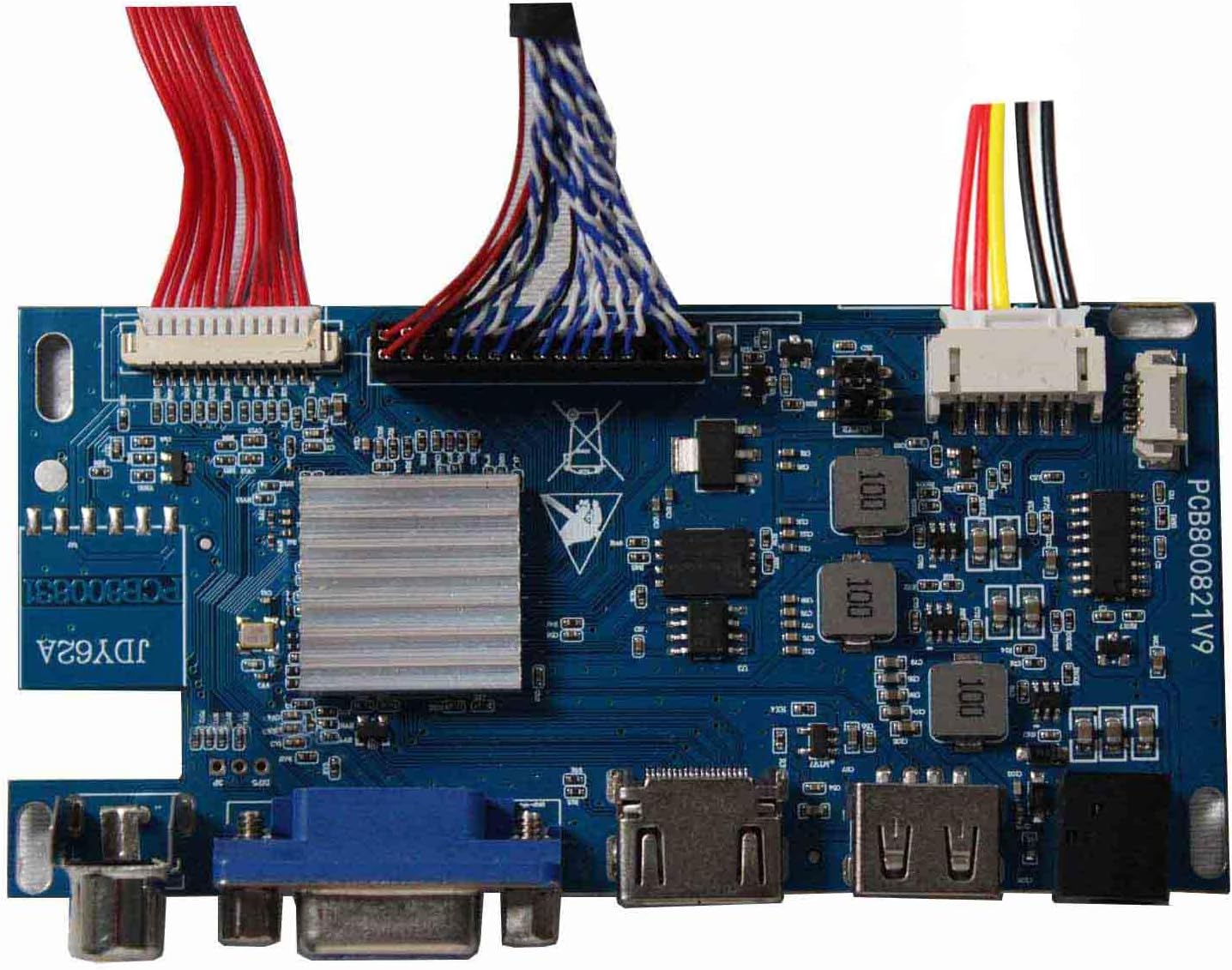

LCD Controller Board: Input Power Adapter: 12Vdc More than 2A-5A.Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: VGA USBAudio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 112mm x 56mm x 12mmFeatures：Support mobile phone wire--less wired screen projection and charge, Requires original data cableThe WI--FI module needs to be inserted into the USB port When use AIR-PLAY MIRA-CASTSupport image 0 degree 90 degree 270 degree 360 degree rotationOptional Blue--tooth module and WI--FI moduleUSB port supports USB memory less than 32G and support audio and video playback（Files containing patented formats such as Dol-by, AC3, DTS, etc. are not supported.）21.5" M215HJJ-2000 1920x1080 LCD Screen:Display Mode MVA, Normally Black, TransmissiveResolution 1920(RGB)×1080, , 102PPI Outline Size 487.664(W)×279.286(H) ×1.29(D) mmDisplay Area 476.064(W)×267.786(H) mmBrightness 2000 cd/m²Contrast Ratio 3000:1 (Typ.) (TM) Viewing Angle 89/89/89/89 (Typ.)(CR≥20)Interface LVDS (2 ch, 8-bit) , 30 pins ConnectorBacklight WLEDInput Voltage 5.0V (Typ.) Packing list:1× VGA USB LCD Controller Board VS-TY2660H-V8311×21.5" M215HJJ-2000 1920x1080 LCD Screen1× LVDS Cable1× Backlight Cable1× Keyboard With Cable

• 【Application】 Work for compatible 1920x1080 30pin LVDs LCD Screen
• 【LCD Driver Board】Video input: VGA USB ,Audio Output: Speaker Connector (8ohm 2W 4Pin PH2.0 connection).The video input function is wide ,do setting according to your demands, Please use in insulated environment.
• 【Input Power Supply】12V DC more than 2-5A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.
• 【Compatible Screen models 1】HM215WU1-500 M215HGE-L10 M215HGE-L21 M215HW01 VB M215HW02 V0 M215HW03 V1 M215HW03 V2 M215HTN01.1 M215HGE-L21 LM215WF3-SLK1 T215HVN01.0 M215HW02 V0
• 【Compatible Screen models 2】LM230WF5-TLF1 LM230WF5-TLF2 LM230WF5-TLF4 LM230WF5-TLE1 LM230WF5-TLH1 LM230WF3-SLK1 M236HGE-L10 M236HGE-L20 M270HW02
