2/4 Conductor 24AWG Flexible Drag Chain Cable, Signal Control Oxygen-Free Copper Core, Cold-Resistant NBR Insulation, 100ft Robot Wire for CNC Automation & Industrial Equipment(32ft,24AWG-2C)

SpecificationsProduct Model:High Flexible Drag Chain CableWire Gauge：24AWG≈0.2mm2,22AWG≈0.3mm2,20AWG≈0.5mm2,18AWG≈0.75mm2,16AWG≈1.5mm2,14AWG≈2.5mm2,12AWG≈4mm2,10AWG≈6mm2Rated Voltage:<; 1.0 mm²: 300/300VCross Section ≥ 1.0 mm²: 300/500VTemperature Rating:Fixed Installation: -30°C to +90°CFlexible/Moving Installation: -5°C to +90°CMinimum Bending Radius:Fixed Installation: 5 × Cable Diameter (5D)Moving Installation:<; 10m: 7.5 × Cable Diameter (7.5D)Travel Distance ≥ 10m: 10 × Cable Diameter (10D)Conductor Material:Oxygen-Free Copper (OFC), Fine StrandedInsulation Material:High-Flex Nitrile Rubber (NBR)Sheath Material:High-Flex Nitrile Rubber (NBR)Filler Material:Special Non-Woven Fabric Wrapping for Cushioning & Structural StabilityApplications:Suitable for dry or damp indoor environments, designed for occasional movement without tensile stress or forced guidance. Ideal for bending and flexing applications in industrial environments such as:Logistics Conveying Equipment,Woodworking Machinery,Lifting Equipment & Cranes,Machine Tools & Processing EquipmentTechnical specifications are for reference only. We continuously improve our products, and the actual item may be updated. Please refer to the most recent product details.

• [Oxygen-Free Copper Conductor]Made with high-purity OFC copper for low resistance, excellent conductivity, and stable signal transmission. Precision fine-stranding improves flexibility, reduces heat generation, and extends service life

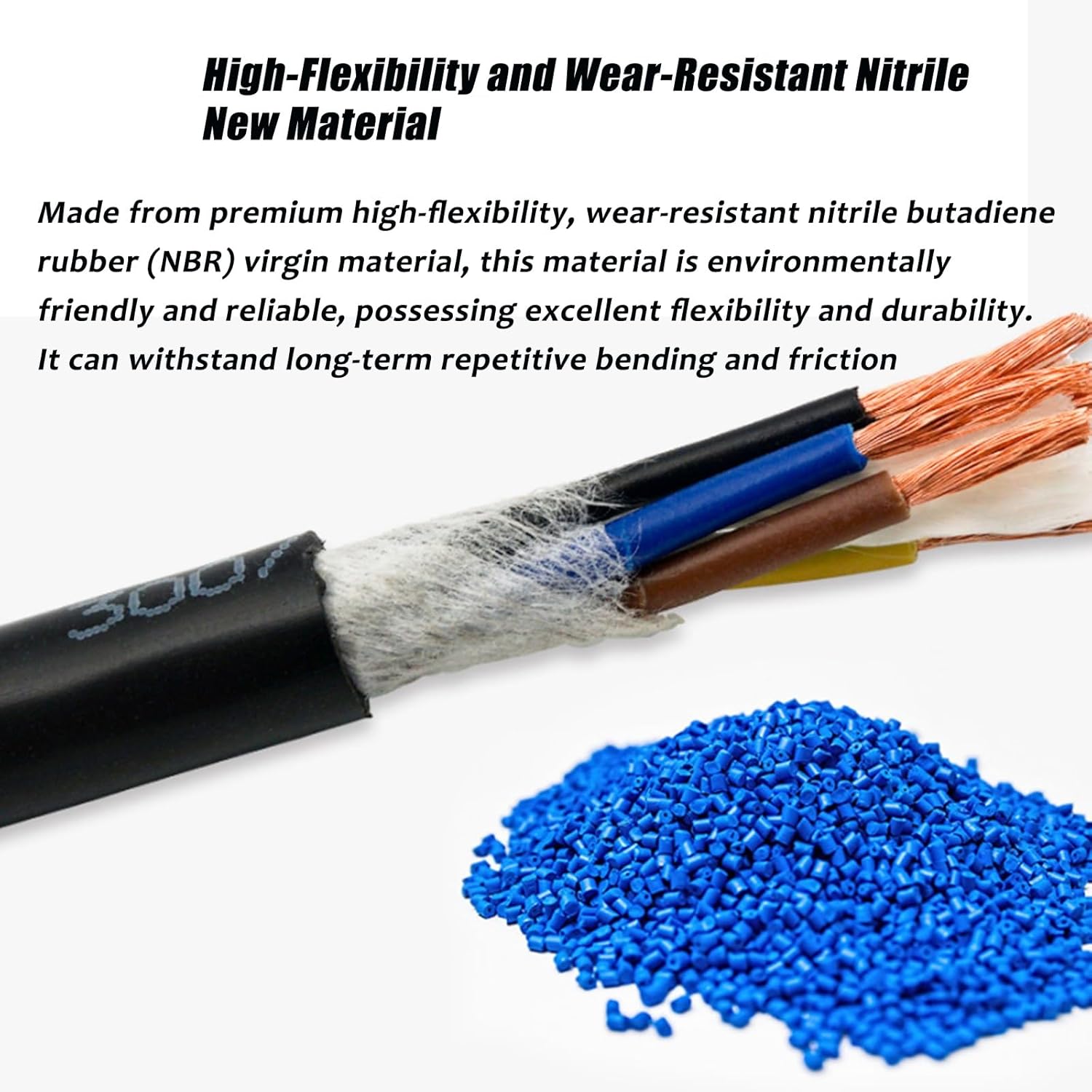

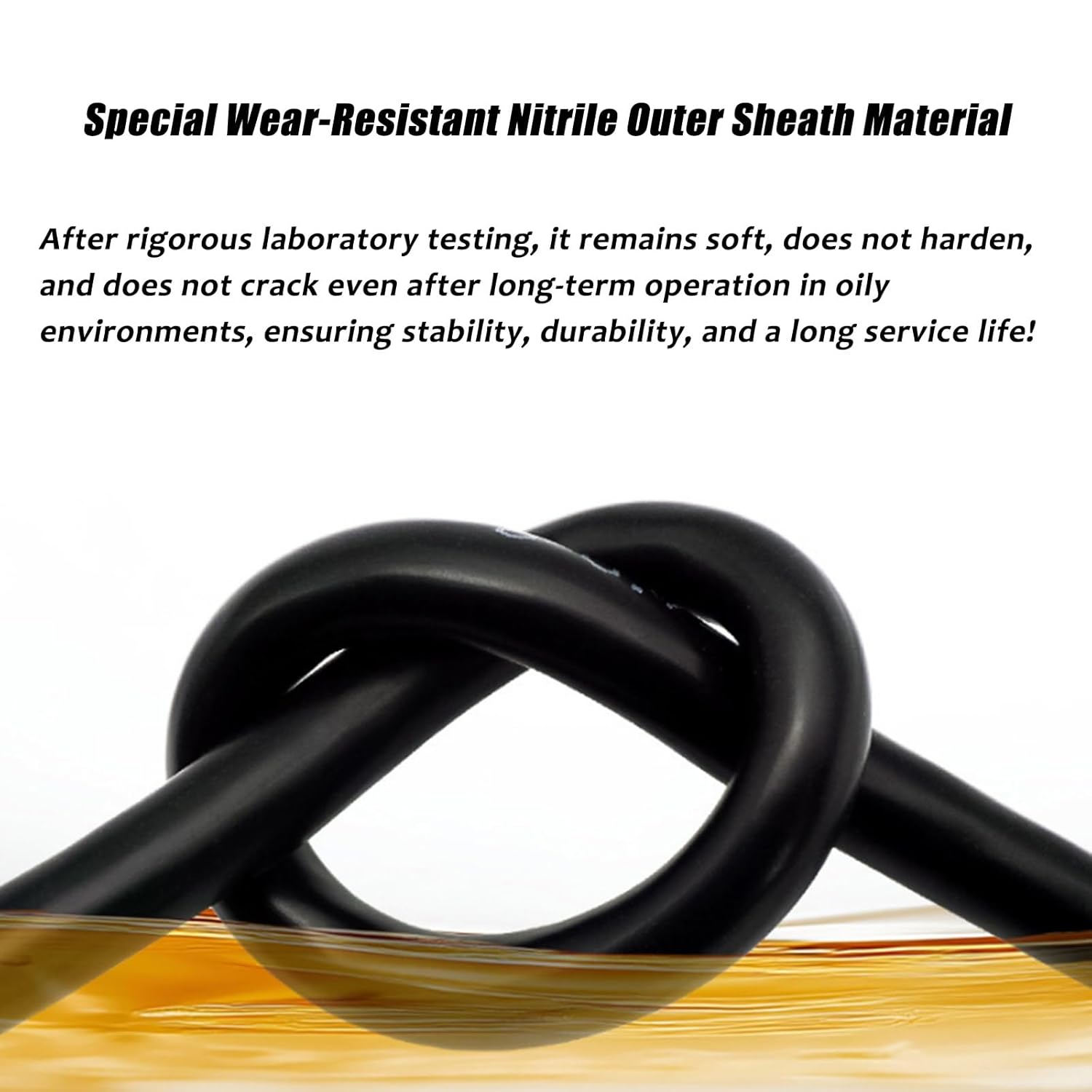

• [High-Flex NBR Jacket]Upgraded nitrile rubber (NBR) outer sheath offers superior flexibility, wear resistance. Designed to withstand harsh industrial environments without cracking or hardening
• [Wide Temperature Range]Maintains excellent mechanical performance in extreme temperatures, ensuring reliable operation in both high-heat and low-temperature working conditions
• [Reinforced Flexible Structure with Tensile Core]Features ultra-fine copper strands and a built-in tensile core for enhanced strength and flexibility. Resistant to repeated bending, pulling, and twisting without breaking

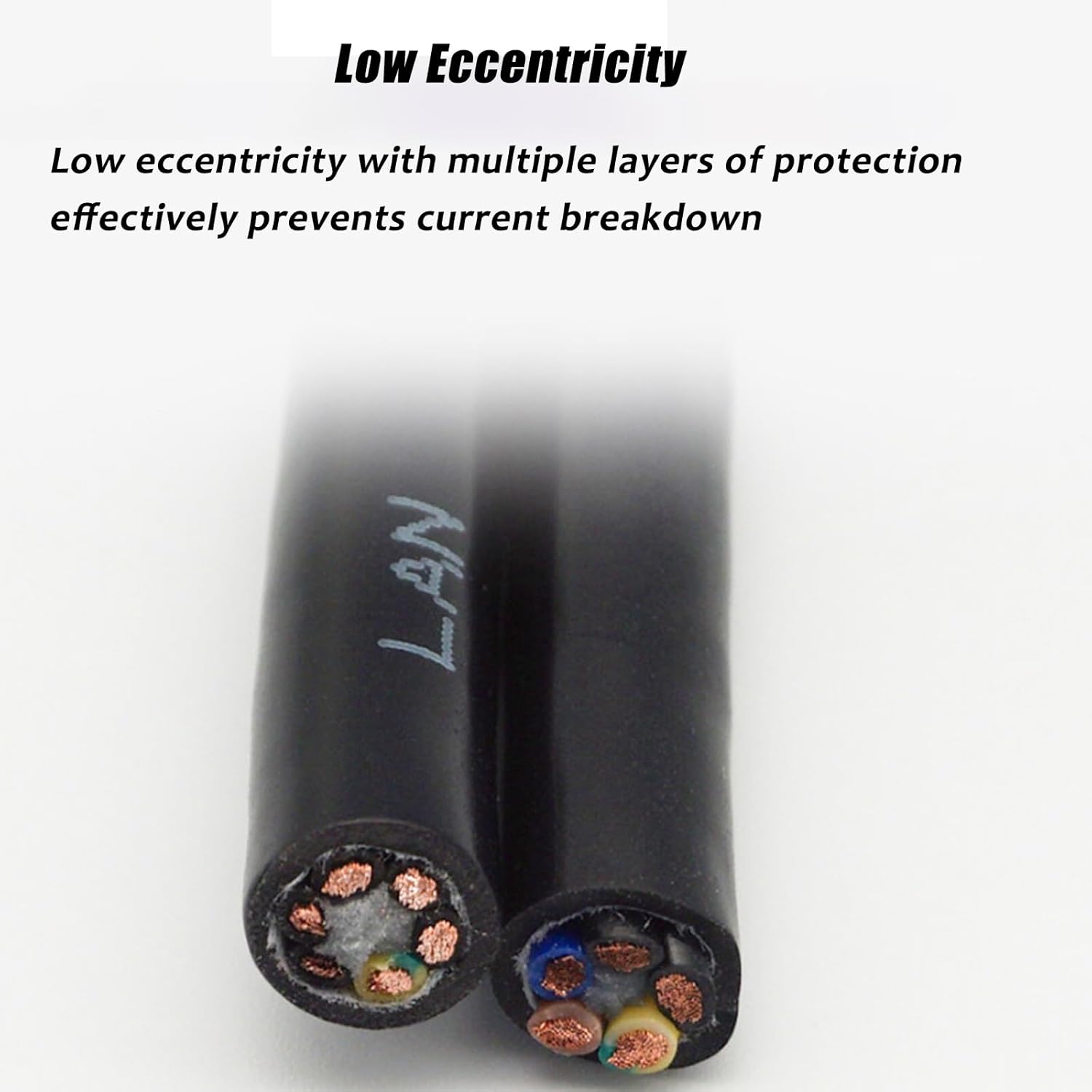

• [Low Eccentricity for Enhanced Safety]Manufactured with advanced production technology to ensure uniform insulation thickness and low eccentricity, effectively preventing electrical breakdown and ensuring safer, more stable performance
