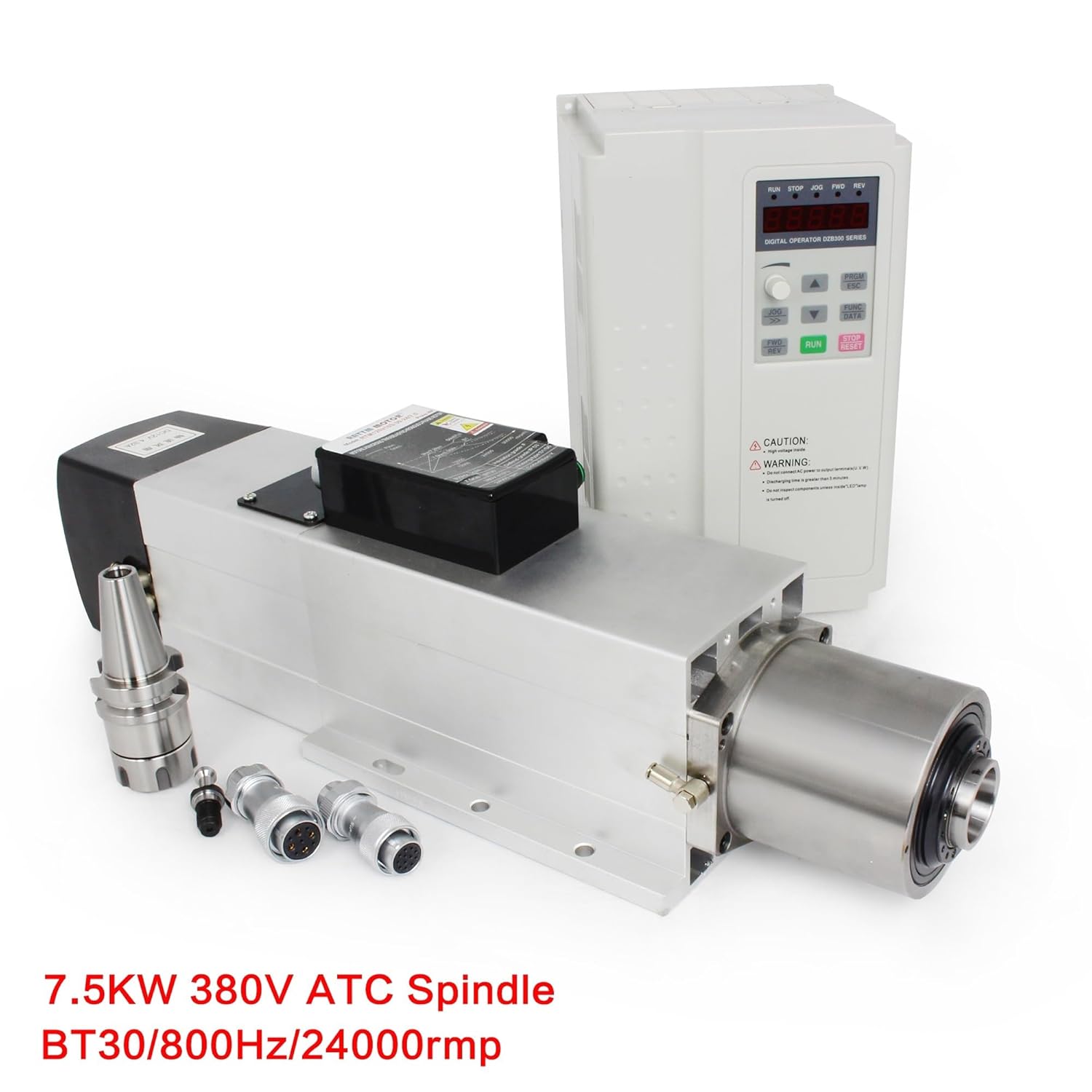

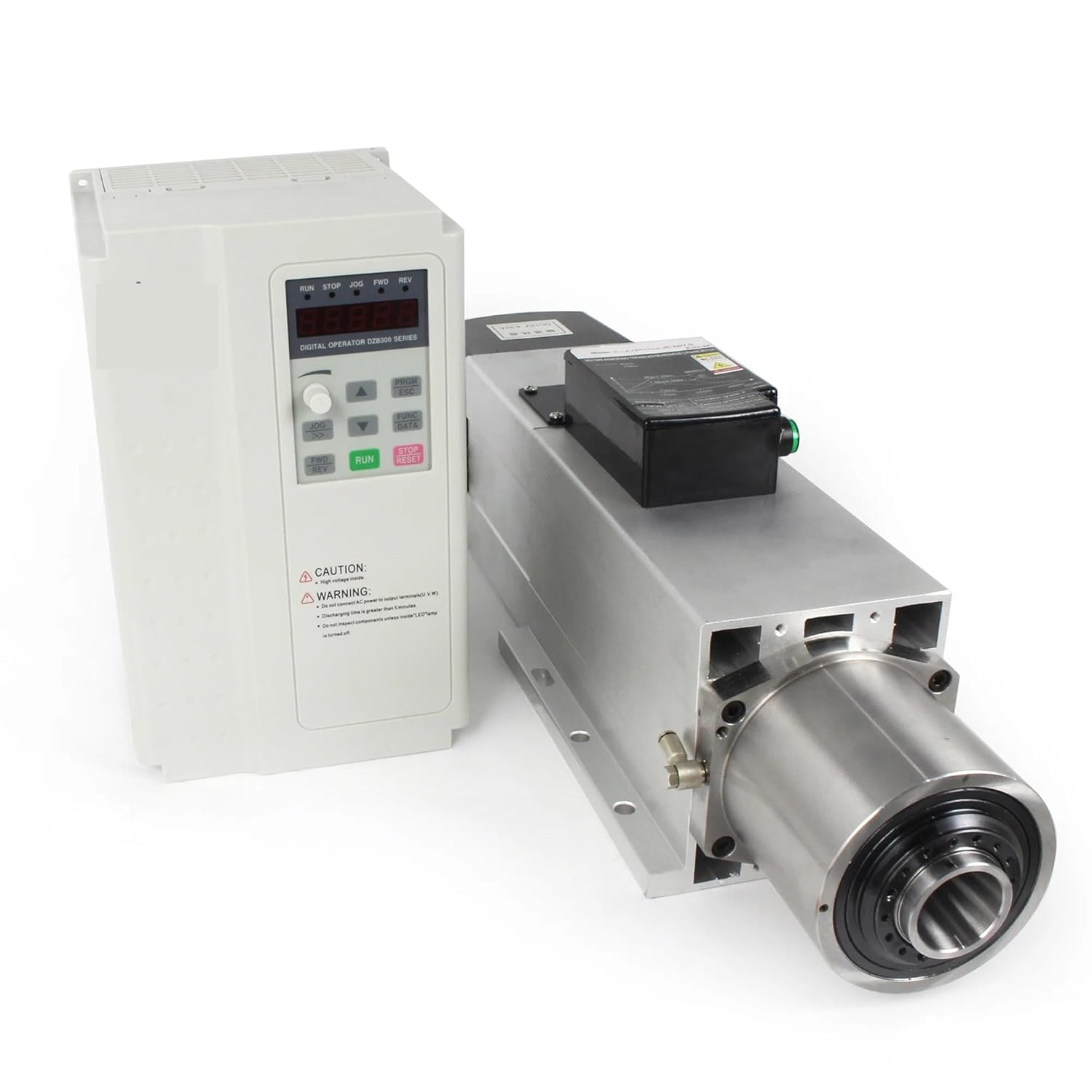

4.5KW 7.5KW BT30 Air Cooled Cooling for Metal Computerized Numerical Control Router Milling Kit Automatic Tool Change ATC Motor + FuLing Inverter(7.5KW Spindle kit,220V)

Industrial MotorsPackage include:1x 4.5KW / 7.5KW Square ATCAir motor 220V / 380V (4 bearing BT30 24000rpm) 1 x Fuling inverter 220V /380V (OPTIONAL)1 x BT30-ER25 Tool Holder with Pull stud2 x Air Package description:1.This is built-in type motor, built-in three asynchronous motors,by the inverter control.As the has a compact structure,high power, big Tq, small vibration, low noise characteristics,so it can achieve high speed,high powe cutting,high recision and high stability operation.2.The bearing of use grease lubricated angular to contact bearings,can be achieved lifelong lubricating within the life cycle.3.This uses air cooling to cool the motor and front and rear bearings. The wind is provided by the fan at the rear end, from the rear of the through the inner and outer air slots directly to the front of the , there by taking away the heat generated by the high-speed rotation of the , achieving thermal balance, and keeping the temperature of the within a certain value.4.The built-in 140 temperature sensor(Technical parameters are visible in other sections of this specification),you can read it anytime if you need to protect the motor temperature.5. The tool clamping methods:this built-in automatic tool changedevice,shank form is BT30.installation explanation1.Fan cooling system description When the rotates, the rear fan system must be started to ensure the correct supply voltage and the supply voltage is 12V.2.Air sealing control (AS)In order to prevent water or impurities enters internal of the , will have gas sealing device,the gas seal machine must be started start with the machine at the same time. And the need to go through multi-stage filtration.3.Compressed gas quality requirementsThe quality requirement of gas which is used in gas seals:Oil content:0.01mg/m³solid particle:5µ mPressure dew point:7.5(0.7MPa)3. Running-in program instructionsOnly all monitoring issued no failures operational signals,at the same time,all safety devices have been installed and working properly,then allow start . Note: or which is not used for a long time must to be running slowly.First,start run for half an hour as 25% of the maximum speed,then increase to 50% of the maximum speed,to run 15 minutes,finally,increase to maximum speed.It's need to check the temperature of the during the whole process, will get , but not hand, if the becomes , pls stop the operation and contact our customer service department.
