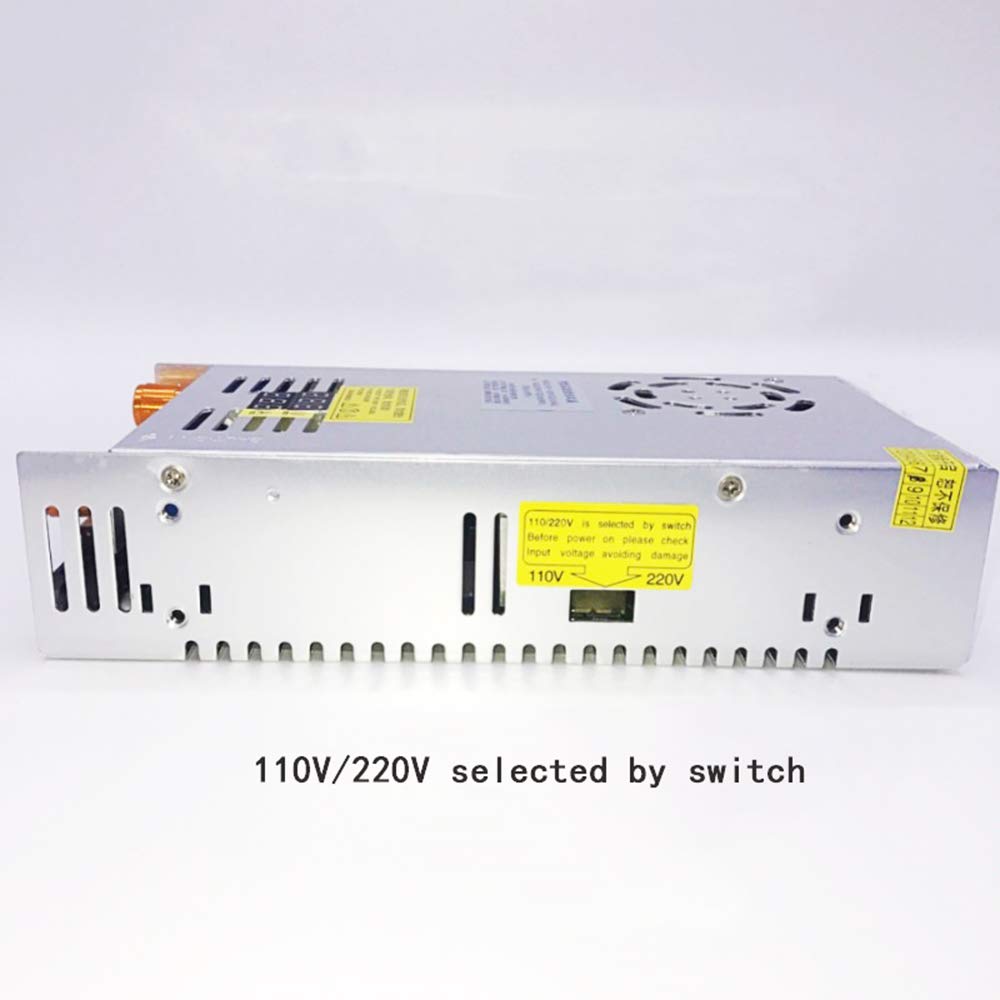

480W 0-80V 0-6A Current and Voltage Adjustable Power Supply Current limiting SMPS with Digital Display 110V/220V AC to 0-80V DC Transformer 80V 6A Power Converter

SpecificationThe current-limited adjustable power supply is stable and reliable, and the DC output voltage is continuously from 0-80V. High adjustment precision, high-precision multi-turn potentiometer, with overload current limit function, current limit output 0-6A continuously adjustable, 0-5V signal control voltage and current, power 0-480WOperation to use(How to limit current) to adjust current?1. Operate in the case of power failure, pull the small pull switch in the lower left corner to the current regulating gear2. Pull out (dedicated current regulating insert) to the 2nd and 3rd ports of the wiring port, loosen the port screw with a screwdriver, and tighten with a screwdriver (at this time, connect to the listed power), and then connect The voltage of the meter shows 0.00V, and the current shows the current current parameter. At this time, the power supply will emit a small current.3. On the right side (adjust current knob), you can adjust the desired current limit parameter, and display the current parameter synchronously with the digital display. can be adjusted in the whole process.4. Remove the (special adjustment current plug) and insert it back into the original insert card holder. After removing the digital display, the voltage is about 0.90V, and the current is 0.00A.5. Pull the pull switch in the lower left corner to the right to open the "open (use)" position.6. The current power supply is in the parameter value of the current limit. The power supply is adjusted to a few V (the digital display shows the output voltage in real time), the current does not change, and the current reaches the current limit of 95% of the current limiting parameter. Overload protection 7. The current parameter displayed by the digital display at this time is the current value of the device load, and the load current is monitored in real time.

• The output voltage range: 0-80V adjustable, the maximum output current: 6A
• Current limiting output current range 0-6A continuously adjustable
• With short circuit current limit protection, automatic recovery function
• When the load device is connected, the current value can be adjusted directly in real time. The maximum current value is the maximum current value of the load device. If the current adjustment knob clockwise exceeds the maximum current value of the device, the digital current value will not last. Real-time synchronized digital display, showing only the maximum current value of the device.
• Usage: Mainly used for various battery charging, DC equipment, DC motor stepless speed regulation, LED stepless dimming, chemical electroplating speed regulation, scientific research test, student experiment, etc., and a wide range of uses.
• Special attention: If using inductive load such as motor or fan, please pay attention to the maximum starting current parameter of the motor. This parameter must not be higher than the maximum operating current of the power supply. Otherwise, the power supply may be damaged. You should select a higher current power supply or soften the motor. The protection circuit is activated to absorb the inrush current.
• If there is no need for current limiting, use the general equipment, without the Limit Current Operation, pull the pull switch in the lower left corner to the "open (use)" position, and turn the (current adjustment knob) clockwise to the top.
