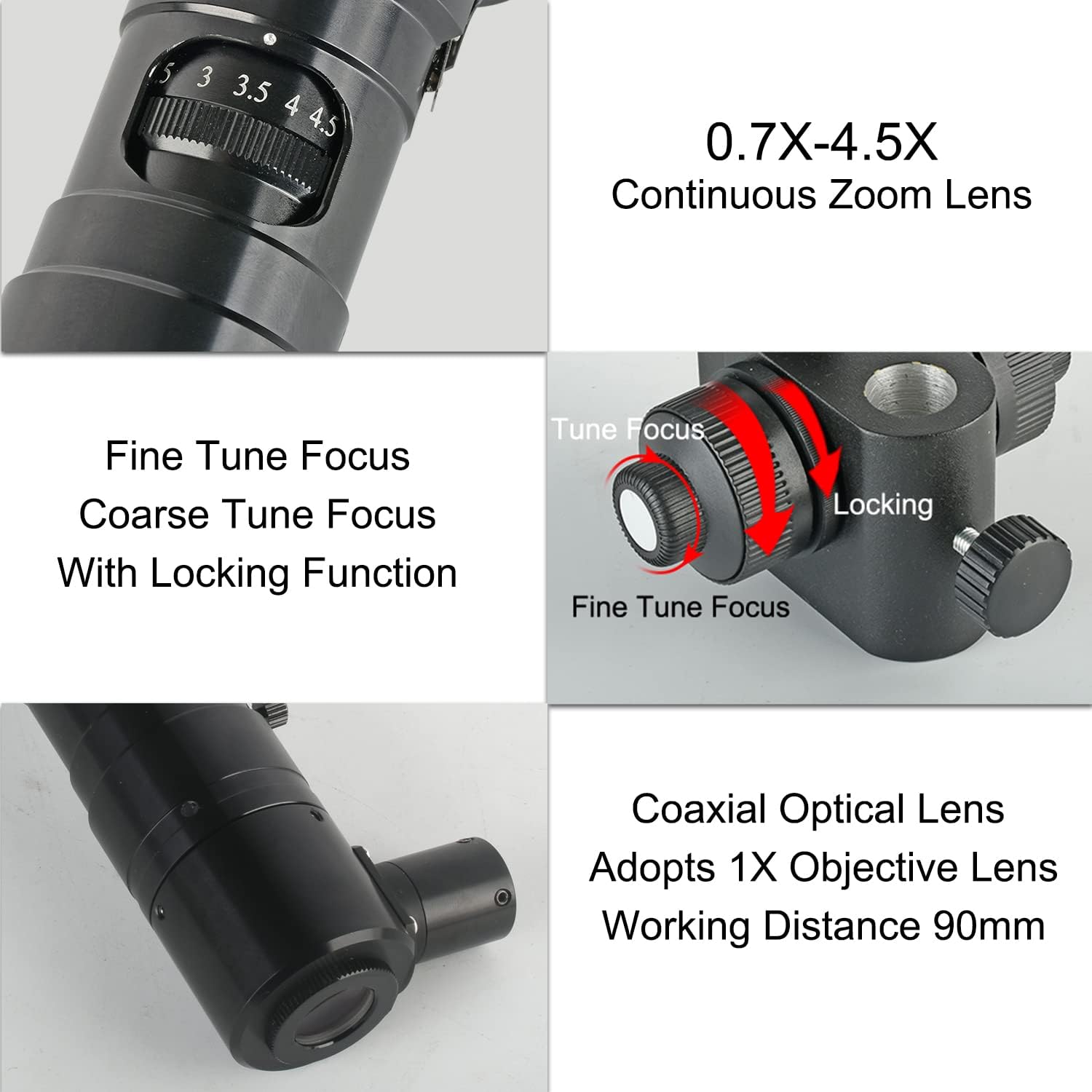

48X-300X 2 Million Pixel Coaxial Photoelectron Microscope Can Take Photos and Video Measurements 0.7X-4.5X Continuous Zoom Lens

Model：KP-Z6000V-2K Working Stroke：65mm Column Height：300mm Column Diameter：25mm Center Distance：165mm Precision Fine-Tuning：0.002mm Base Size：330mmX300mm Mobile Platform：Panel Size:180x155x26mm Stroke:Horizontal 75mm Vertical:55mm Reading Accuracy:1mm Magnification：48.8X-313.8X Field of View：1.77mm-11.42mm Eyepiece：1X Objective Lens：0.7X-4.5X Continuous Adjustable Auxiliary Objective：1X Point Light：DC 5V 8W LED White light Working Temperature 0-60℃ Lifetime:50000 Hours Optical Magnification：0.7X-4.5X Working Distance：90mm Length：260mm Lens Mounting Diameter：50mm Pixel：2 Million Pixels Image Sensor：1/2＂CMOS Resolution：1920×1080 Pixel Size：3.75×3.75um Frame Rate：60FPS Color Adjustment：R、G、B Independently Adjustable White Balance Regulation：Single Automatic White Balance Exposure to Adjust：Manual/Automatic Reflective Elimination：Manually Contrast Adjustment：Manually Output Method：HDMI Menu Operation：Mouse Operation Photo Way：Manual Storage Mode：U Disk. Can Take Pictures,Video,Measurement Crosshair Function：100 Groups Camera Interface：C-Mount Power Supply：DC-12V Camera Function：Point Spacing,Point line Spacing,line Spacing,Center Distance,Arc,Circle,Corner,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Finding Packing List： 1、Coaxial Optical Lens *1 2、Point Light Source *1 3、Power Adapter *1 4、Pillar *1 5、Base Plate *1 6、Anti-Skid Ring *1 7、Fine Tuning Bracket *1 8、XY Mobile Platform *1 9、2 Million Pixel Digital Camera *1 10、HDMI HD Line *1 11、Camera Power Adapter *1 12、Measuring Calibration Ruler *1

• 1920*1080 frame rate can reach 60 fps, no drag delay;
• Supporting U-disk photo-taking function, compatible with 4G-32G brand U-disk/SD cards;
• Accurate measurement function, supporting line, circle, angle, rectangle and other measurements;
• Powerful OSD menu and convenient mouse operation, just like computer operation.
• Supporting screen mouse dragging function, setting crosslines and measuring operation is very convenient.
• With 100 sets of marking lines, the position can be moved, and the color and display can be set.
• This Product is an HDMI HD Output and Can only be Connected to a Display With an HD Connector.The Product Has Two USB Outputs,one For Connecting a Mouse and One for Connecting to a USB Flash Drive. Measurements Can be Performed Directly on the Display With the Mouse.Save Pictures and Excel Data.
• This Product Does not Contain a Monitor..
