4x2 HDMI Matrix Switch, HDMI2.0/1.4 4 in 2 Out Matrix 4K60 with EDID Dual Audio Separation (HDMI 2.0)
4.2 (19 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212184123 | Release Date | 2026/04/06 | List Price | $36.00 | Model Number | 212184123 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Dear Customer Thank you for purchasing this product. This Matrix 4x2 can connect four high definition sources and two sinks with audio output optical or stereo simultaneously. It can easily switch or split four high definition video sources to two compatible displays or projectors The Optical and stereo audio output can extract audio signal from output A. Our devices offers solutions for noise, space and security concerns,data center control, information distribution, conference room presenation,school and corporate training environments. Specifications HDMI version：HDMl 2.0, HDCP 2.2 HDMI resolution：24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/4K x 2K@24/25/30fps@60Hz. Support video color format：24 bit/deep color 30bit,36bit,48bit Support audio format..DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD Audio output：SPDIF and RCAstereo Max transmission bandwidth….340MHZ Max baud rate：18Gbps Input/Output TMDS signal：0.5~1.5Volts p-p Input/Output DDC signal：5Voltsv p-p(TTL) Input cable distance：<10m AWG24 HDMl standard cable Output cable distance：<10m AWG24 HDMI standard cable Working current：1.3Amax Power adapterformat：Input:AC100V240V(50/60Hz);Output:DC5V/2A Operating Temperature range：(-15 to +55℃) Operating Humidity range：5 to 90%RH(No Condensation) Dimension(LxWxH)：218x106x28mm Weight：318q

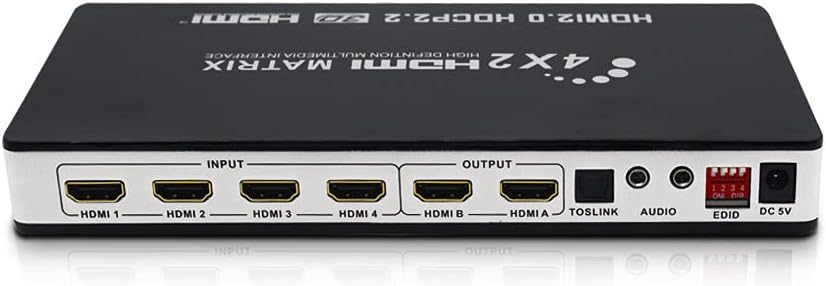

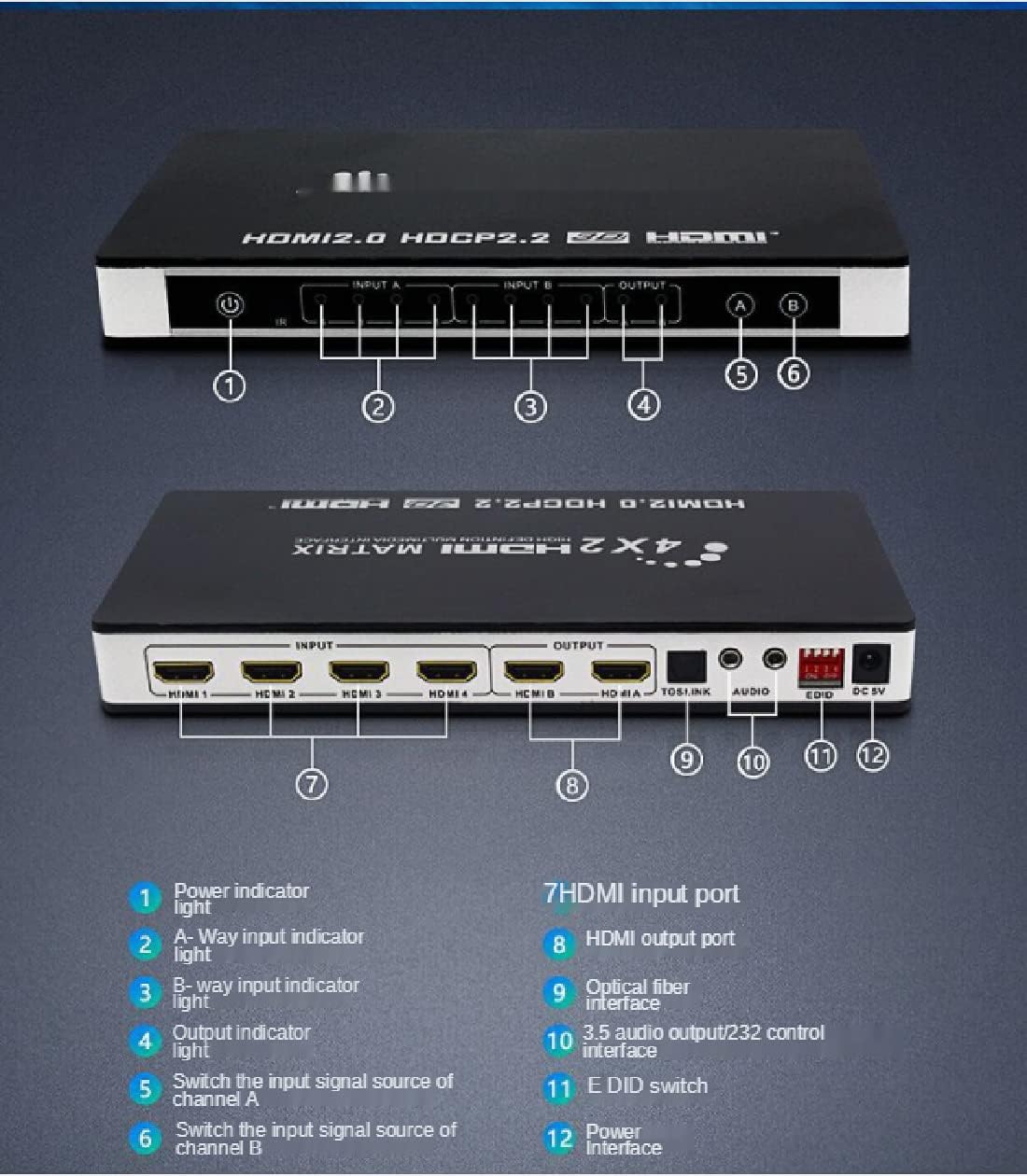

- Four HDMl input signals switched or split to two HDMI sink devices. Output HDMIA is with audio output through Toslink and Stereo.
- ● Audio sync separator output can be achieved with 2CH, 5.1CH, Pass three audio modes selectable.Supports 3D.Supports 4Kx 2K x 60Hz.With HDMI-CEC function.
- ● Supports deep color 30bit, 36bit.Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC.
- ● Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/Dolby-AC3/DSD.Supports signal retiming.Supports input no more than 10 metres (AWG24 HDMI standard cable length).

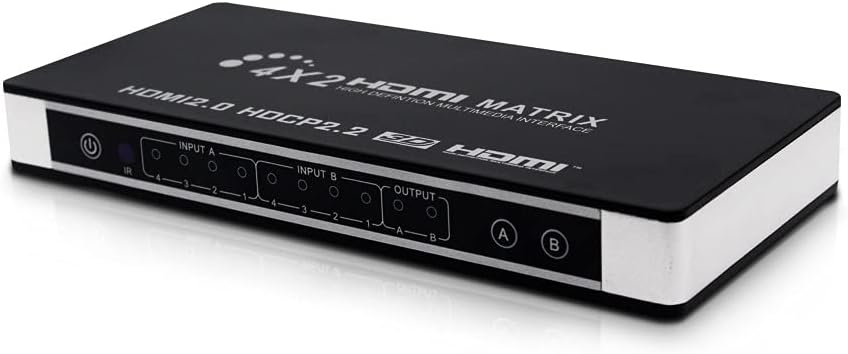

- ● Inputs can be switched with the IR remote control, also can be controled by two buttons.
| UPC | 710702394214 |
|---|---|
| Brand | Rendaysa |
| Cable Type | HDMI |
| Manufacturer | Swallow house |
| Compatible Devices | DVD Player |
| Warranty Description | 1 |
| Connector Type Used on Cable | HDMI |
