5V 12V 24V Relay Module with Full Optocoupler Output 1 2 4 Channels/Way Smart Switch High/Low Level Trigger for(1PCB Plate)

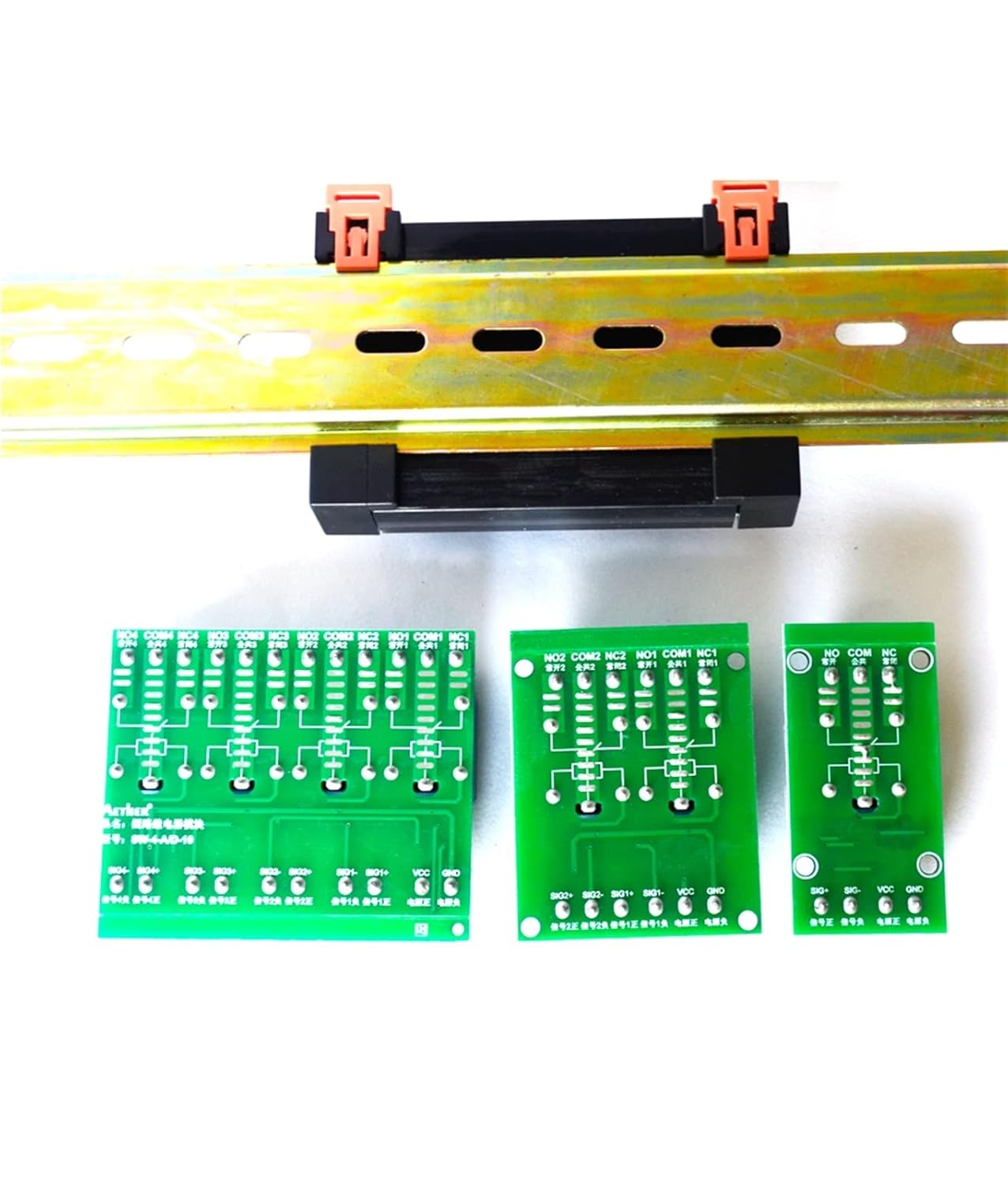

relay1/2/4 Channels 10A Relay Module with Optocoupler Isolation ManualInput voltage :5V/ 12V /24VQuiescent current :0 mASingle working current : 70mA-5V / 50mA-12V / 30mA-24V Trigger method : High level trigger or low level triggerLoad voltage : DC 30V/AC 240V Action response time : More than >30 msLoad current :Max 10ARelay life :More than>10,0000 timesModule size :Refer to the detailsMounting specifications :50mm flame retardant VO level, DIN/45 rail installationRelay :Original SONGLE1channel size:50x26.4x18mm (L/W/H) 2channels size: 50x42x18mm(L/W/H)1&2 channels Mounting hole diameteris 3mmmore detail refer to above two 4 channels size 50x64x18mm LW/H) pls pay attention,4channels have no Mounting hole,usually use PCB base or tape2/4 channels refers to the 1 channel connection.The principle is the same.1.High level trigger:2.Low level trigger:3.Fully isolatedtrigger:4.Relay work description:1.The module needs DC power supply, and the voltage is consistent with the voltage of the relay2.The VCC (positive) and GND (negative) ports are the power supply ports of the module, which are used to provide electrical energy for the relay coil and signal amplifying circuit.3.SIG+ (signal positive) and SIG- (signal negative) are signal trigger ports. When high level (PNP) triggers, the signal is connected to the signal positive port, and at the same time,short-circuit the high-level jumper on the circuit board. When the low level (NPN) triggers, the signal is connected to the negative port of the signal,and at the same time,short the low-level jumper on the circuit board.4.The module supportsthe signal full isolation trigger mode. In this mode, when the high level (PNP) triggers, the signal is connected to the positive port of the signal , and the negative port of the signal is connected to the negative terminal of the signal power
