8.4 inch 8.4" 800x600 4:3 AA084SC01 600nit IPS LCD Screen and Audio LVDs Controller Board

LCD Controller Board: LCD Board Work for LVDS Interface LCD ScreenInput Power Adapter: 12Vdc More than 2A.Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: HD OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm8.4" AA084SC01 800X600 LCD Screen:Display Mode SWV, Normally Black, TransmissiveResolution 800(RGB)×600Outline Size 199.5 ×149×12(H×V×D)Display Area 170.4 × 127.8 (H×V)Brightness 600 cd/m² (Typ.)Contrast Ratio 1000:1 (Typ.) (TM)Viewing Angle 85/85/85/85 (Typ.) (CR≥10) [Left / Right / Up / Down]Signal Interface 20 pins LVDS (1 ch, 6/8-bit), Connector Backlight WLEDInput Voltage 3.3V (Typ.)Packing list:1× LCD Controller Board VS-TY2660H-V6611× 8.4inch AA084SC01 800X600 LCD Screen1× Backlight Cable1× LVDS Cable1× Keyboard With Cable

• 【4:3 600nit IPS display】8.4" AA084SC01 800X600 LCD Screen,Outline Size 199.5 ×149×12(H×V×D)mm,Display Area 170.4 × 127.8 (H×V)mm, Contrast Ratio 1000:1 ,Viewing Angle 85/85/85/85 ,Signal Interface 20 pins LVDS (1 ch, 6/8-bit),Backlight WLED,Input Voltage 3.3V.
• 【LCD Controller Board】 Video input: Audio ,Audio Output: Speaker (4Pin PH1.25 connection).Please use in insulated environment.
• 【Input Power Supply】12V DC 2A, port size :5.5x2.1mm, (Pls prepare the power adapter seperately).

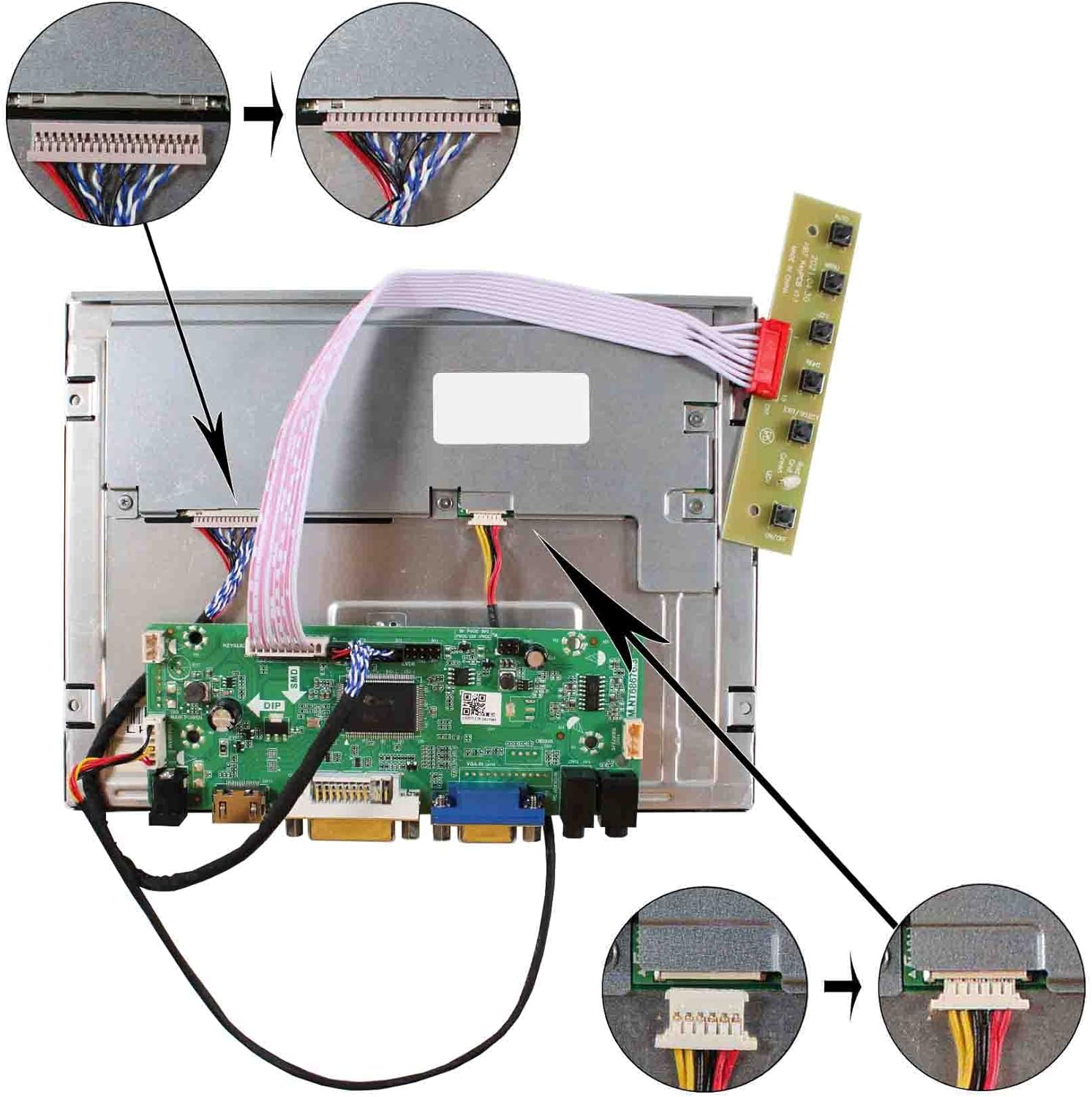

• 【Plug and play】 Connecting cables and ports as picture ,power on ,LED light become green ,then connect signal cable ,the screen will be lit up .
• 【Packing lists】1× LCD Controller Board VS-TY2660H-V661,1× 8.4inch AA084SC01 800X600 LCD Screen,1× Backlight Cable,1× LVDS Cable,1× Keyboard With Cable
