9016 Cast Aluminium Body Adjustable Dual Valve Door Closer w Back Check (c66417f0f660119c3d7fa040890ee18b)

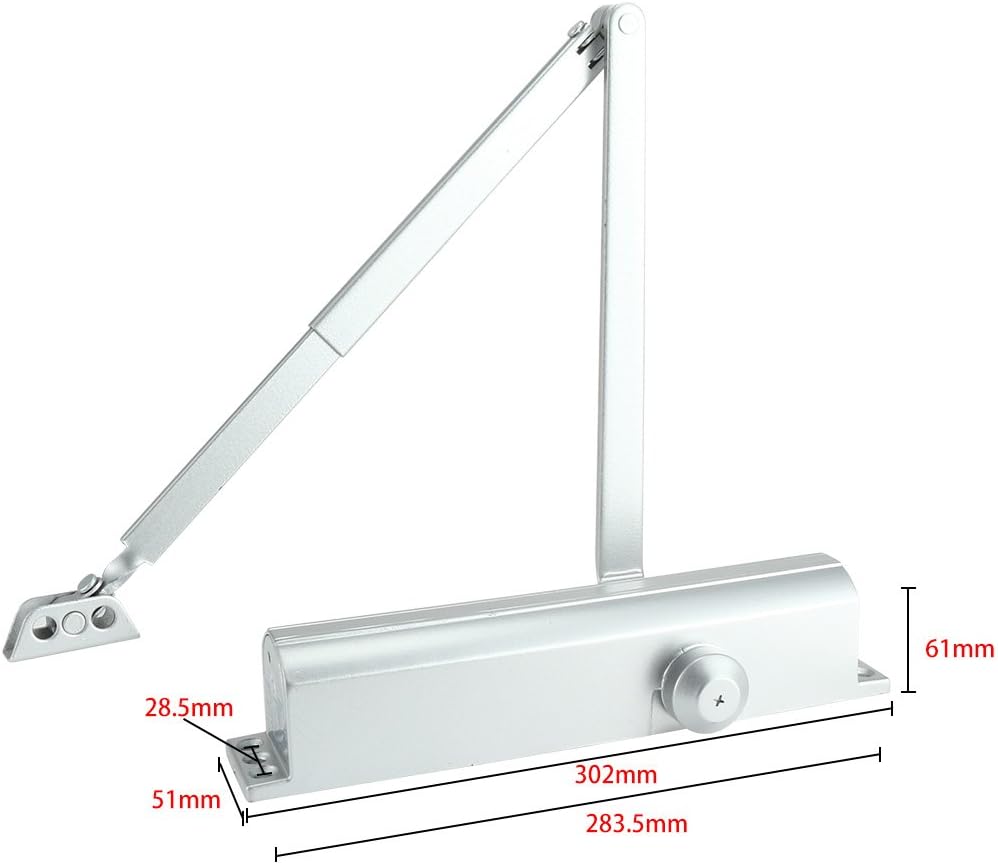

Aexit 9016 Cast Aluminium Body Adjustable Dual Valve Door Closer w Back Check (c66417f0f660119c3d7fa040890ee18b)Product Name: Door CloserMain Color: Silver ToneWeight: 3351gType: 9016Material: Cast AluminiumTotal Size: 302 x 90 x 61mm /11-57/64-inch x 3-27/50-inch x 2-13/32-inch(L*W*H)Package Content: 1 x Door Closer, Some Install PartsSuit for Door Weight: 15kg-150kgShaft Length: 200-300mm / 8-inch-11.8-inch(Approx)Mounting Hole Diameter: 7mm / 0.28-inchHole Center Distance: 283.5 x 28.6mm/11-1/32-inch x 1-1/8-inch(L*W)Build-in Hole Fuction: Stop at 75 DegreeApplication for: Steel Security Door, Fire Door Arm Bracket Size: 127 x 90 x 22mm / 5-inch x 3.5-inch x 0.87-inch(L*W*H) Arm Bracket Hole Diameter: M5/0.2-inch Female Thread, 7mm / 0.28-inch Arm Bracket Hole Center Distance: 50mm / 2-inch,70mm / 2.8-inchClosing Speed Valve Adjustable Range: 180 Degree-15 DegreeLatching Speed Valve Adjustable Range: 15 Degree-0 DegreeCE Certification: YesUL/C-UL Listed: YesHex Wrench Width: 4mm/0.16-inch0America style designed.for commercial doors. UL certificate and UL 10 C fire rating. Precise cast aluminum body blanking steel arm, hold open arm optional.Back check function: provide you with a temporary stop function between 65 degree to 180 degree to help prevent damage to door and or wall in case of the door opens with exercise force.Description in FrenchCorps en aluminium moulé 9016 Double-Porte soupape réglable avec Retour VérifierRack précis (piston),claire,le roulement à du pignon construit en fonction hold: arrêt à 75 degré. Demande de porte de bureau, porte coupe-feu en bois, l'acier inoxydable porte coupe-feu.Vanne de fermeture à double verrouillage, et vitesse contrôlée par deux vannes de régulation séparée. Deux vannes de vitesse: vitesse de fermeture de 180 degrés à 15 degrés, à l'enclenchement de la soupape de vitesse d

• America style designed.for commercial doors. UL certificate and UL 10 C fire rating. Precise cast aluminum body blanking steel arm, hold open arm optional.
• Precise rack (piston),pinion clear, bearing made in hold function: stop at 75 degree. Application for office door, wooden fire door, stainless steel fire door.
• Dual valve, closing and latching speed controled by two separate regulating valves. Two speed valves: closing speed valve 180 degree to 15 degree, latching speed valve 15 degree to 0 degree.
• Back check function: provide you with a temporary stop function between 65 degree to 180 degree to help prevent damage to door and or wall in case of the door opens with exercise force. (9d3291f5-2b17-11ea-990f-4cedfbbbda4e
• Max.Door Widths(mm):1400mm, Suit for Door Weight(kg):15-150kg,Adjustable Power size from 1-4.Installation instructions are included. (
