98H Series 40A 50A 60A 70A 80A Manual Reset Thermal Overload Protector Switch Circuit Breakers for Generator(65A)
4.4 (110 items)
Limited Time Sale$26.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210099311 | Release Date | 2026/04/02 | List Price | $17.60 | Model Number | 210099311 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

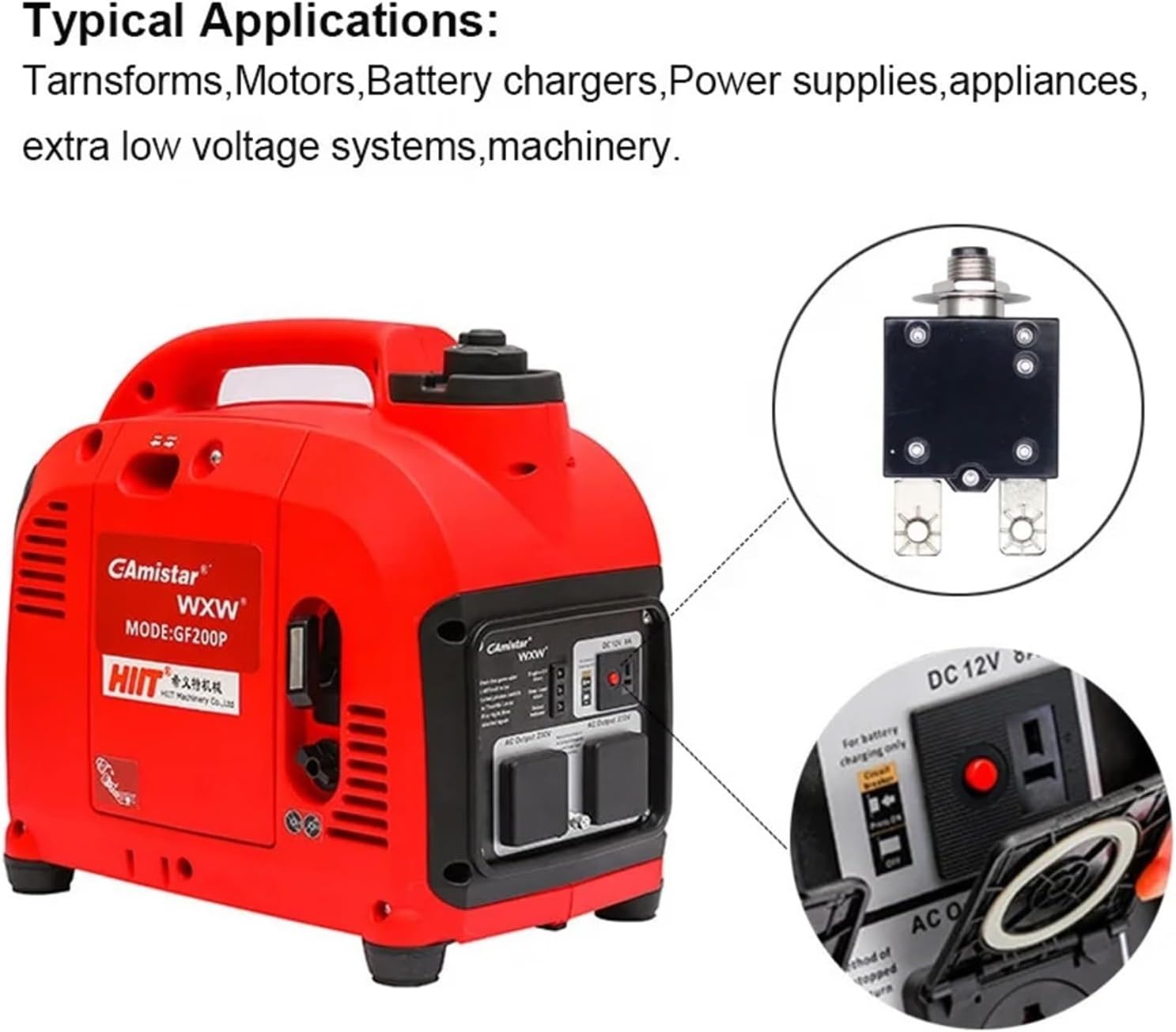

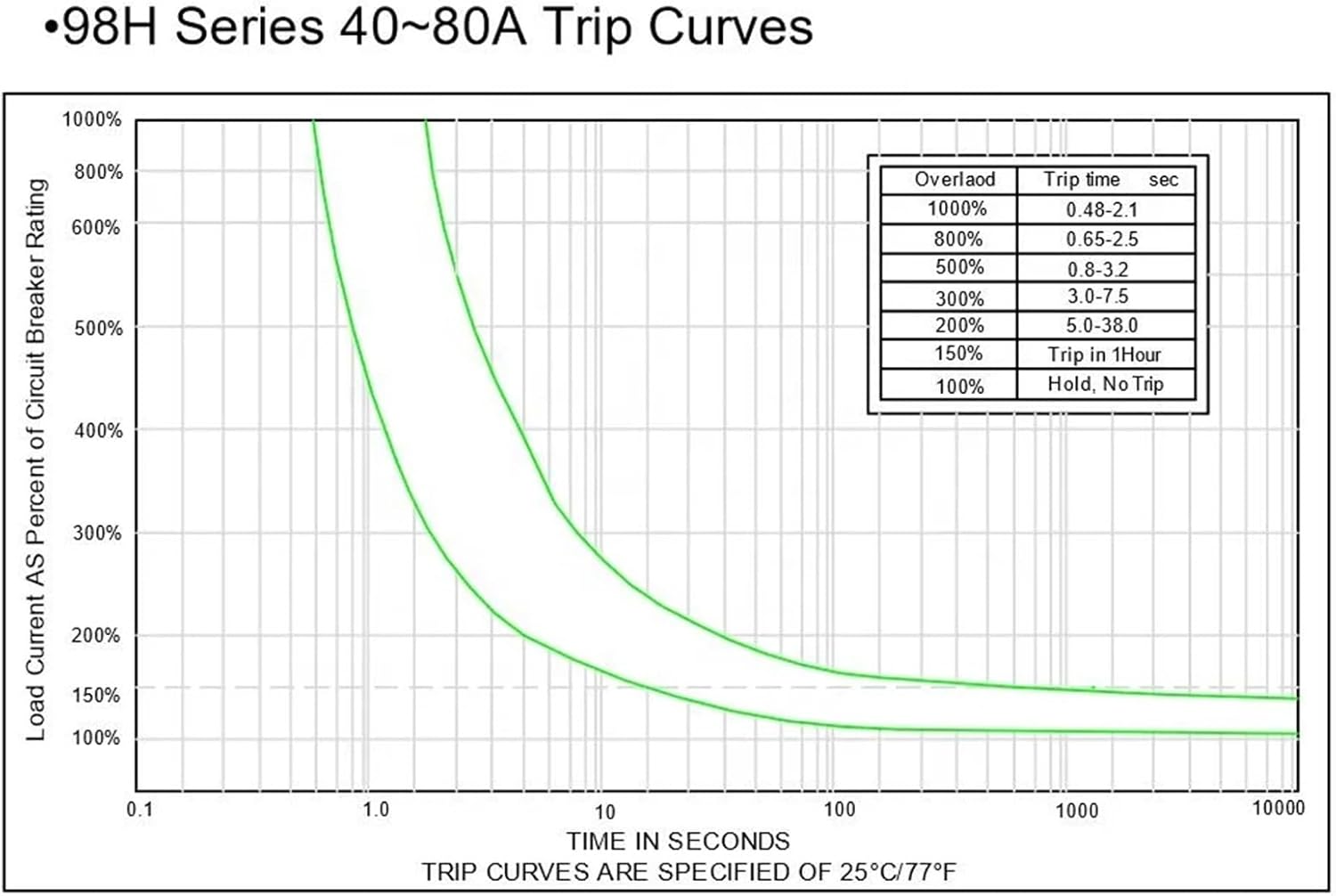

Circuit BreakersProduct DescriptionCurrent rating range:40~80AInput voltage rating:125/250VACInterrupting Capacity:125/250VAC x 1,000A(UL 1077)Typical life:500 operations at 200% overloadInsulation co-ordination:Rated impulse withstand voltage 2.5kVDielectric Strength:>1,500VAC/minInsulation Resistance:>100MOHM (DC 500V)Degree of protection:operating area IP40Mechanical/Environmental DataOperating Ambient Temperature: -10 to +60Termination: Thickness 1.5mm; 10/24 unc ScrewaNickle of platedNickle of platedMounting: Various options. See Ordering Information and drawingsCompliance with The product accords with the requirement of ( 2011/65/EU) Contacts use Exempted item of Directive 2010/571/EU 8(a)Compliance with , PAHS, PH1, PH2, PH3Typical applicationsTarnsforms, Motors, Battery chargers, Power suppliesappliances, extra low voltage systems, machinery.Calibration(at25) of Rated Current: Hold , No Trip150% of Rated Current: Trip Within 1 Hour200% of Rated Current: 5-38 sec Trip300% of Rated Current: 3.0-7.5 sec TripApproval & File No Approval Rated current Rated voltage CUL UL E155159 4080A 125250VAC; 50VDCRelated Products88 series98 seriesar series92 series94n series91 series
- Circuit Breakers
- 98H series 40A 50A 60A 70A 80A manual reset thermal overload protector switch circuit breakers for generator
| Department | Unisex Adult |
|---|---|
| Item Weight | 1.76 ounces |
| Manufacturer | JDOUNFMO |
| Number of pieces | 1 |
| Assembly required | No |
| Item model number | JDOUNFMO |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
