AC 220V 1/2" inch Electric Timer Auto Water Valve Electronic Drain Solenoid Valve for Air Compressor Condensate(Controller)

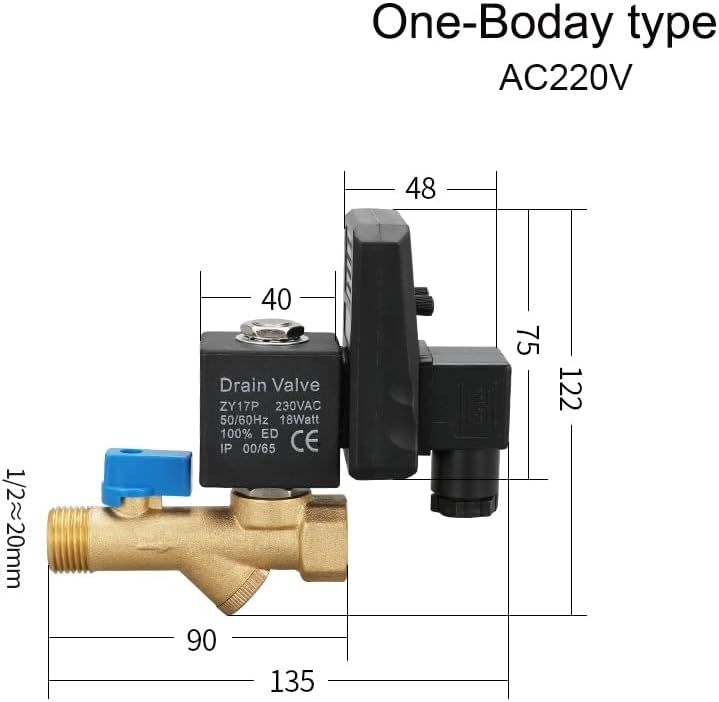

ValvesSolenoid ValvesValvesSpecification:Brand newType: two two direct-acting valveShell material: flame retardant ABS plasticManual test button ( micro switch )Size: as picture shownVoltage: DC12V/DC24V/AC110V/AC220VTime interval (OFF): 0.5--45 minutesDischarge time (ON): 0.5--10 secondsAmbient temperature: -40°C to 60°CElectrical connection: DIN43650AInterface: G1 / 2" internal threadThe current consumption of the largest 4mAMaximum working pressure: 1.6MpaMaximum temperature: 90°CForging brass valve flow aperture of 5 mmInsulation class: H levelProtection grade: IP65Voltage range: ±10%Feature:Electronic drain valve to solid-state electronic timer and solenoid valve to match the time to achieve automatic discharge of compressed air condensate.Discharge time and interval time can be adjusted according to different needs.Easy to install fully automatic operation.Durable in use.Used in filters oil-water separator refrigerated dryers cold and dry machines air compressors air cylinders dripping feet and other compressed air system components.Package list:Electronic Drain Valve * 1setNote:Please allow 1-5mm errors due to manual measurement.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
