AM370DPW Mini 370 Water Pump DC 12V Diaphragm Pump Self-priming Suction Water Pump DIY Dispenser Pumping 1Pcs

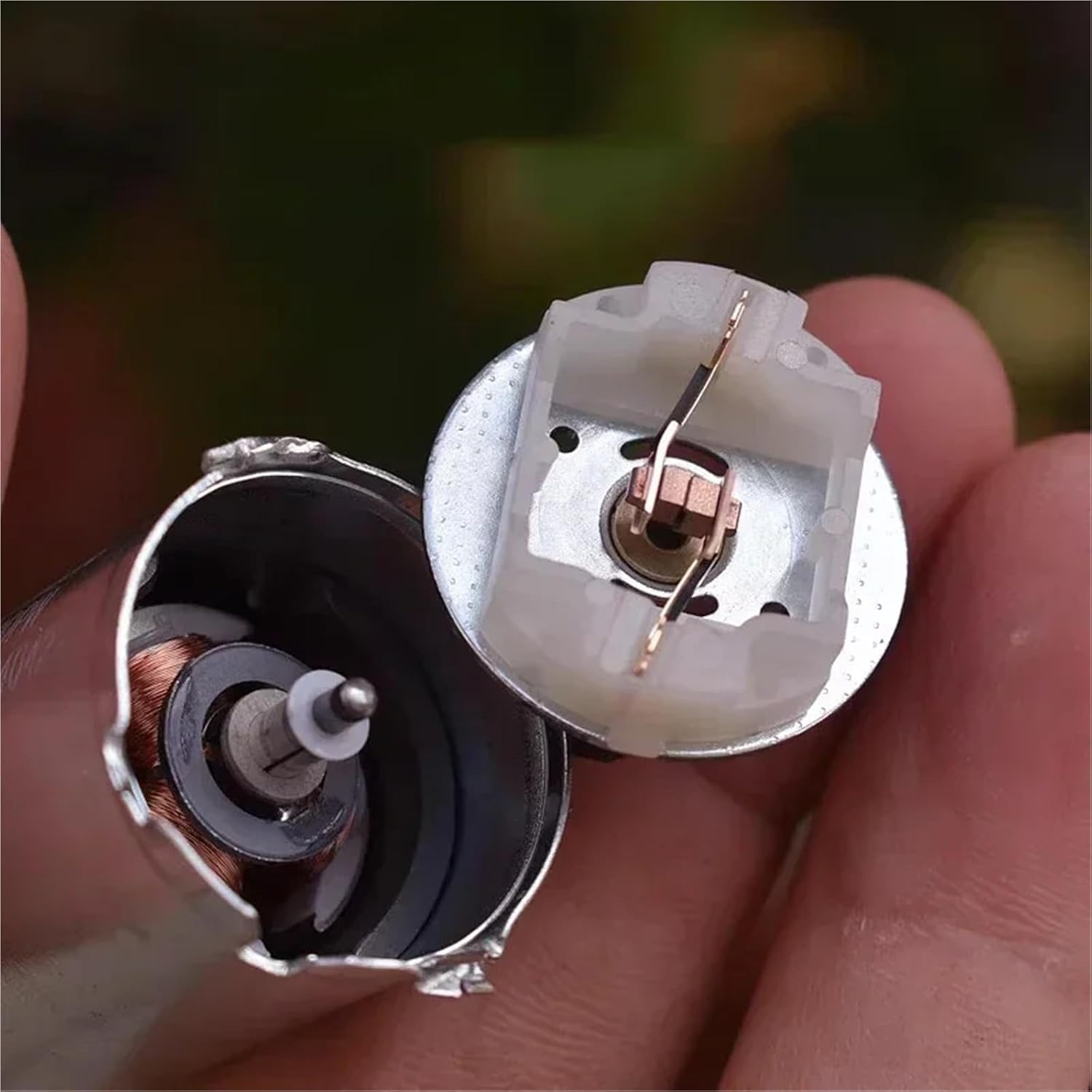

Dosing PumpsSpecification:mini 370 water pump, self-priming pump, diaphragm pump, and 370 motor with carbon brushes are made of high copper alloy carbon brushes, suitable for a voltage of DC12V and a current of 0.11 A when pumping water.Note: Although the outer diameter of the inlet and outlet of this water pump is the same, the size of the inner hole is different. The inner hole of the inlet is large, and the inner hole of the outlet is small, so when this water pump pumps water, the outlet water is relatively small, but the outlet pressure is high, and the outlet water is sprayed out directly.1.Model: AM370DPW 2.Motor diameter: 24.3mm 3.Pump height: 60.8mm 4.Water inlet/outlet diameter: 6.3mm 5.Installation bracket hole spacing: 35mm 6.Weight: 60g 7.Cable length: 150mm 8.Rated voltage: DC 12V 9.Working current: 0.11A 10.Power on the test machine, the water pump produces a quiet sound, good suction, and good flow rate when pumping water. Although the water output is a thin line, the water pressure is high. And the motor is a carbon 370 motor with a good service life.Package List:Mini Water Pump x 1PCS
