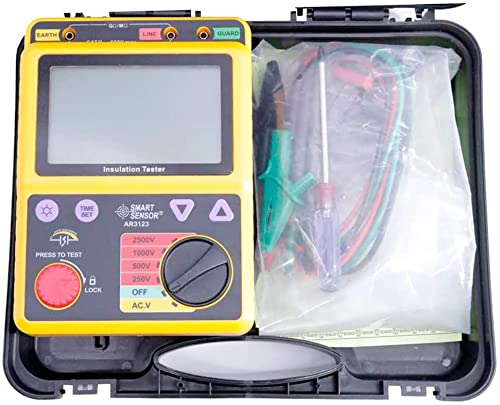

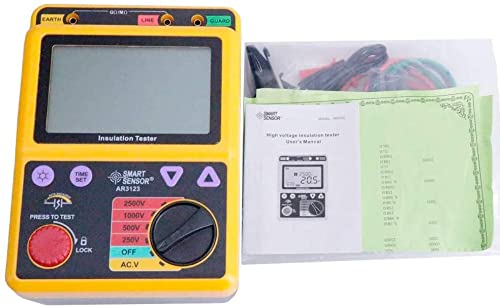

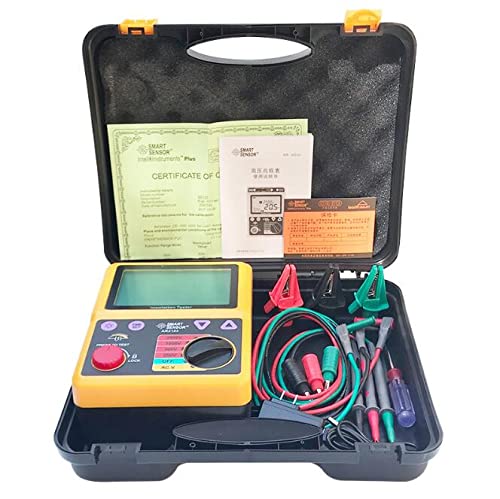

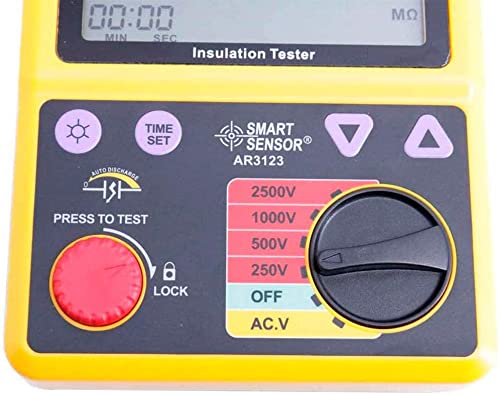

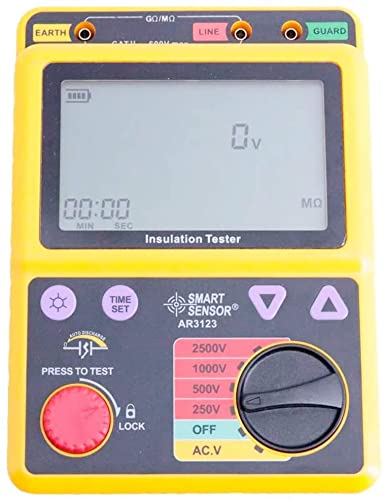

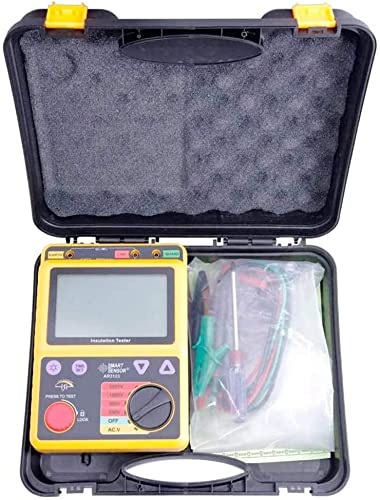

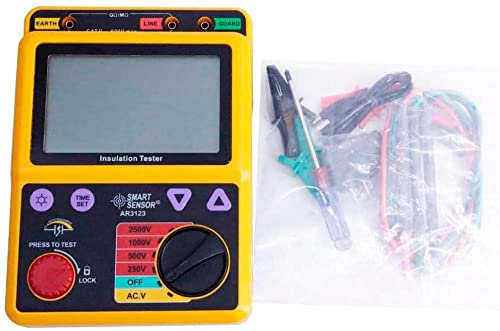

AR3123 Digital High Voltage Insulation Resistance Tester Megohmmeter Voltage Tester Ohm Meter
4.1 (71 items)
Limited Time Sale$128.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211160868 | Release Date | 2026/04/04 | List Price | $85.60 | Model Number | 211160868 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

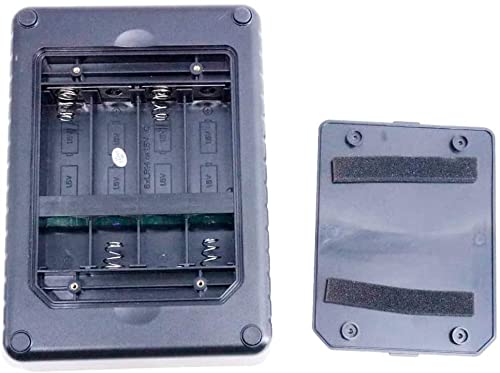

SPECIFICATIONS:Rated voltage:250V / 500V / 1000V / 2500VOpen Circuit Voltage:DC 250V +30%, -0% ~DC 2500V +20%, -0%Insulation ResistanceTesting Range:0.0MΩ~99.9GΩShort Circuit Current:1.3 mA ApproxInsulation ResistanceAccuracy:±5% rdg ±3% rdgVoltage Testing Range:DC : ±30 ~ ±600V ; AC : 30 ~ 600V (50/60Hz)Voltage Resolution:1VAccuracy:±2%rdg ±3rdgSampling Rate:0.5 ~ 10 times / secOperation Condition:0°C ~ 40°C, ≤ 85% RHStorage Condition:-20°C ~ 60°C, ≤90% RHOver Load Protection :√Auto Discharge:√Battery Indication:√Alarm :High Voltage Warning Symbol & Buzzer AlarmExternal power supply:DC adapter 12V / 1APACKING INFORMATION:Power:8*1.5V LR14 Battery (not included in package)Product Net Weight:1027gProduct Size:153*213*95mm
- AR3123 High voltage insulation testers are suitable for non-destructive measurement of insulation resistance in electrical systems, machines, transformers and cables.
- AR3123 These testers are useful for preventive maintenance in the generation, transmission and distribution of electrical energy.
- Voltage :Testing Range DC : ±30 ~ ±600V ; AC : 30 ~ 600V (50/60Hz).
- Insulation Resistance Testing Range:0.0MΩ~99.9GΩ.
- Rated voltage:250V / 500V / 1000V / 2500V
| UPC | 767580955631 |
|---|---|
| Brand Name | RaeSung |
| Style Name | Digital |
| Manufacturer | RaeSung |
| Power Source | Battery Powered |
