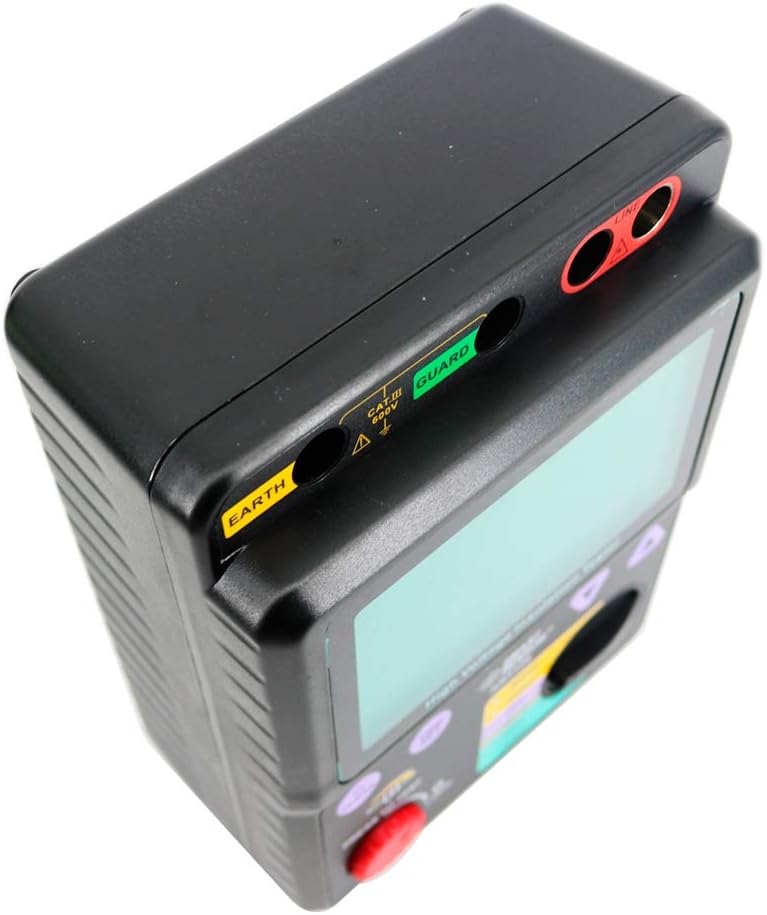

AR3126 High Voltage Insulation Resistance Tester Megohmmeter Megohm 500V/1000V/2500V/5000V

Feature:Insulation resistance tester, usually called megohmmeters or high resistance meter, widely used for measuring the generator, motor, power transformer, wiring, electrical appliances and other electrical equipment (such as cable control, signal, communication and power supply) insulation resistance. They are often used in routine maintenance procedures to indicate changes in insulation resistance for a few months or years. A large change in the insulation resistance may indicate a potential fault. As a result, regular calibration is necessary to ensure that the meter itself does not change over timeSpecification:Rated Voltage 500V/1000V/2500V/5000VTesting Range 500V:0.0~999MΩ1000V:0.0~1.99GΩ2500V:0.0~99.9GΩ5000V:0.0~1000GΩAccuracy ±2%rdg±3dgtDC/AC Voltage Test 30~600VResolution 1.0VOverload Protect AC 1200V/10secWithstand Voltage AC 8320V/5 secInsulated Impedance 1000MΩMax. Short Circuit Current 1.4mAPolarization Index √External DC Adapter DAR √PACKING INFORMATION: Power C*8 battery Product Net Weight 1027g Product Size 153*213*95mm Packing knapsackStandard Quantity Per Carton 3PCS Standard Carton Size 44.5*33*28.5cm Standard Carton Gross Weight 6KG

• AR3126 High Voltage Insulation Resistance Tester Accuracy ±2%rdg±3dgt
• Rated Voltage 500V/1000V/2500V/5000V
• DC/AC Voltage Test 30~600V
• Insulated Impedance 1000MΩ
• Resolution 1.0V
