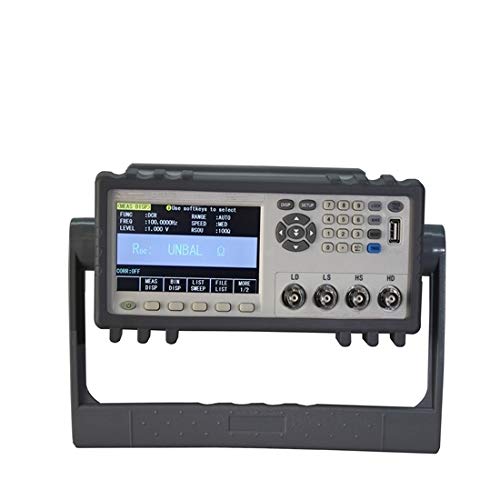

ATO Digital LCR Meter, Tester for Capacitance Resistance Inductance Measuring 20Hz~200kHz for Various Electronic Component Selection (50Hz-100kHz)

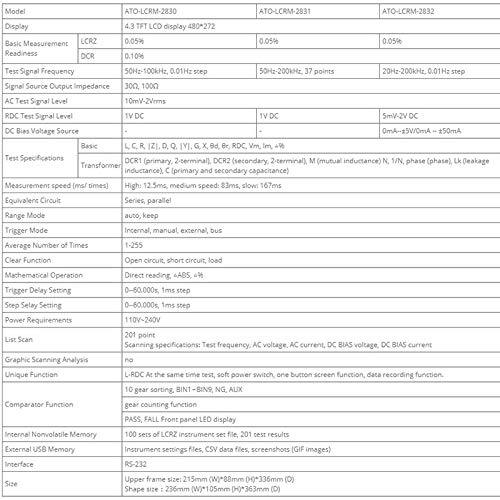

LCR meter is a tester used to test the capacitance, inductance, and resistance of components.Unlike ordinary resistance, for inductance and capacitance, it is needs to use AC method to measure. Digital LCR meter uses AC power for measurement.ATO Digital LCR Meter is a high-performance and compact digital LCR bridge suitable for various electronic component. Frequency range 20Hz~200kHz/50Hz~100kHz/50Hz~200kHz for selection.Basic test specifications are L, C, R, |Z|, D, Q, |Y|, G, X, θd, θr, RDC, Vm, Im, △%. SpecificationDisplay 4.3 TFT LCD display 480*272Basic Measurement Readiness LCRZ 0.05% DCR 0.10%Signal Source Output Impedance 30Ω, 100Ω AC Test Signal Level 10mV-2VrmsTest SpecificationsBasic L, C, R, |Z|, D, Q, |Y|, G, X, θd, θr, RDC, Vm, Im, △%Transformer DCR1 (primary, 2-terminal), DCR2 (secondary, 2-terminal), M (mutual inductance) N, 1/N, phase (phase), Lk (leakage inductance), C (primary and secondary capacitance)Equivalent Circuit Series, parallel Range Mode auto, keepScanning specifications: Test frequency, AC voltage, AC current, DC BIAS voltage, DC BIAS currentUnique Function L-RDC At the same time test, soft power switch, one button screen function, data recording function.Comparator Function 10 gear sorting, BIN1∽BIN9, NG, AUX gear counting function PASS, FALL Front panel LED displayExternal USB Memory Instrument settings files, CSV data files, screenshots (GIF images)Interface RS-232

• Voltage and current monitoring and automatic level adjustment
• Specification test function for single transformer (part type only)
• 4.3-inch TFT LCD display, compatible with standard SCPI instructions
• 10mVrms-2.0Vrms programmable test level, built-in 0- + 5V/50mA bias source
• Ls-Rd/Lp-Rd function (L and Rd display at the same time). Supports U disk file storage, can be upgraded through U disk
