BOJACK 2 Pcs 45+5uF 45/5 MFD ±6% 370V/440V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight

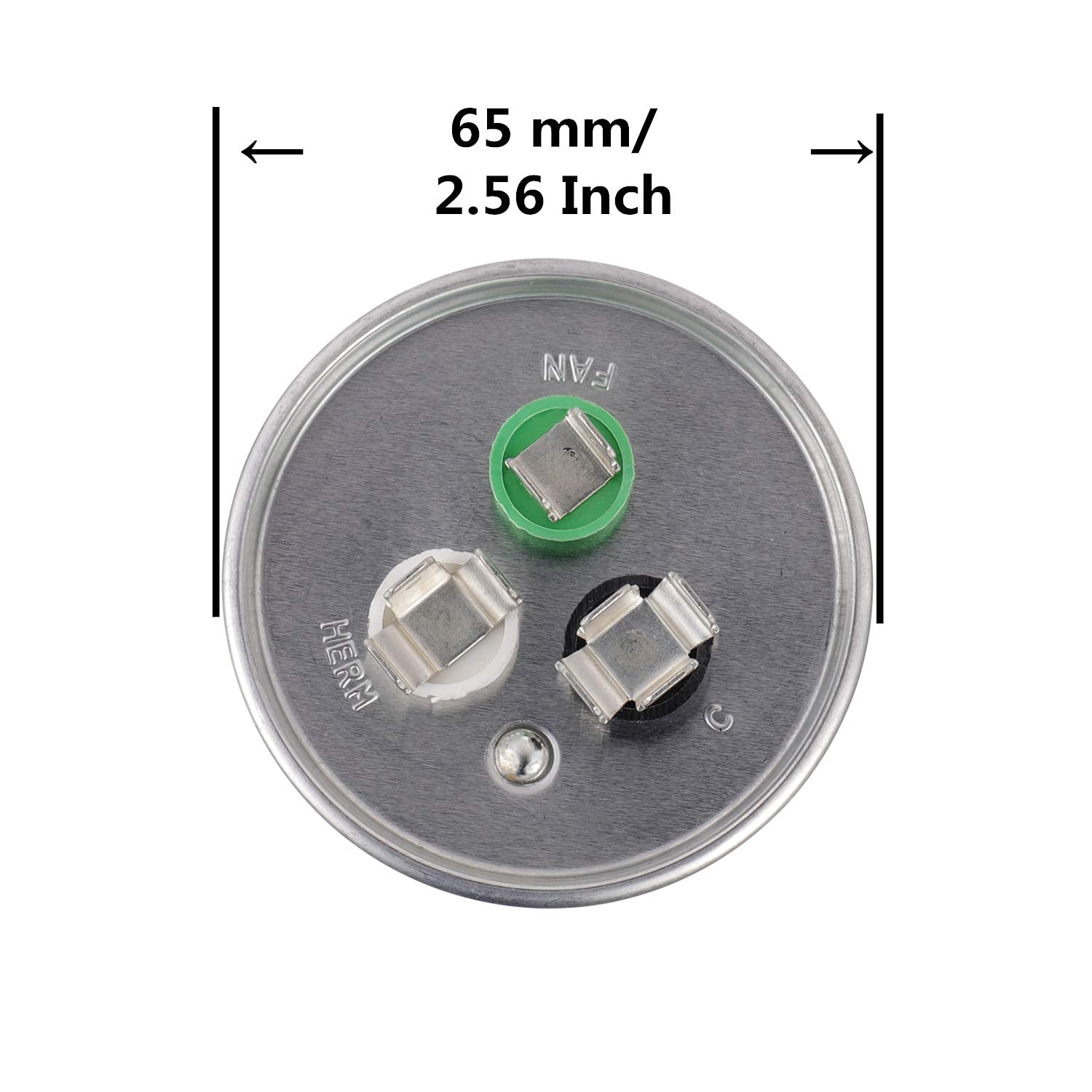

BOJACK 2 Pcs Dual run circular start capacitor Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor Model: CBB65B（Universal model） Shell material: metal Dielectric Material: metallized polypropylene film Capacity: 45+5uf Tolerance: ±6% Rated voltage: 370V/440V AC Frequency: 50 / 60Hz Safety rated: 10,000 AFC Capacitor dimension: Diameter(65 mm/2.56 inch) Height(95 mm/3.74 inch) Operating temperature: -40 ℃ to +70℃/-104℉to+158℉ This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz such as Industrial Grade Replacement for Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors.It is small in size, lightweight, heat resisting and anti-explosion. Round capacitor can be used to substitute oval shape one with the same MFD AND Volt specs.A 440 volt capacitor can be used in place of a 370 volt, as it is build better, but the 370 can’t be used in place of a 440 volt.

• BOJACK 2 Pcs 45+5uF ±6% 370V/440V CBB65B Dual run circular start capacitor
• Capacitor dimension: Diameter(2.56 inch) Height(3.74 inch)
• Operating temperature: -40 ℃ to +70℃/-104℉to+158℉ ，Safety rated: 10,000 AFC
• Safety rated: 10,000 AFC
• Replacement for 97F9895 , Z97F995 , 97F9895BZ3 , 27L880 , TRCD455 , TRCFD455 , PRCFD455 , 27L889 , 97F9851 , 97F9851S , 12788 , RC0114 , Z97F9895 , 97F9895 , TT-CAP-45/5/440R , HC98KA046 , TP-CAP-45/5/440R , CAP050450440RT , HC98JA046 , HCKS450D050R440Z , 00662441180262
