Buyohlic HV4 110 mm Tilting Indexing Milling Rotary Indexing Table 4 Slot

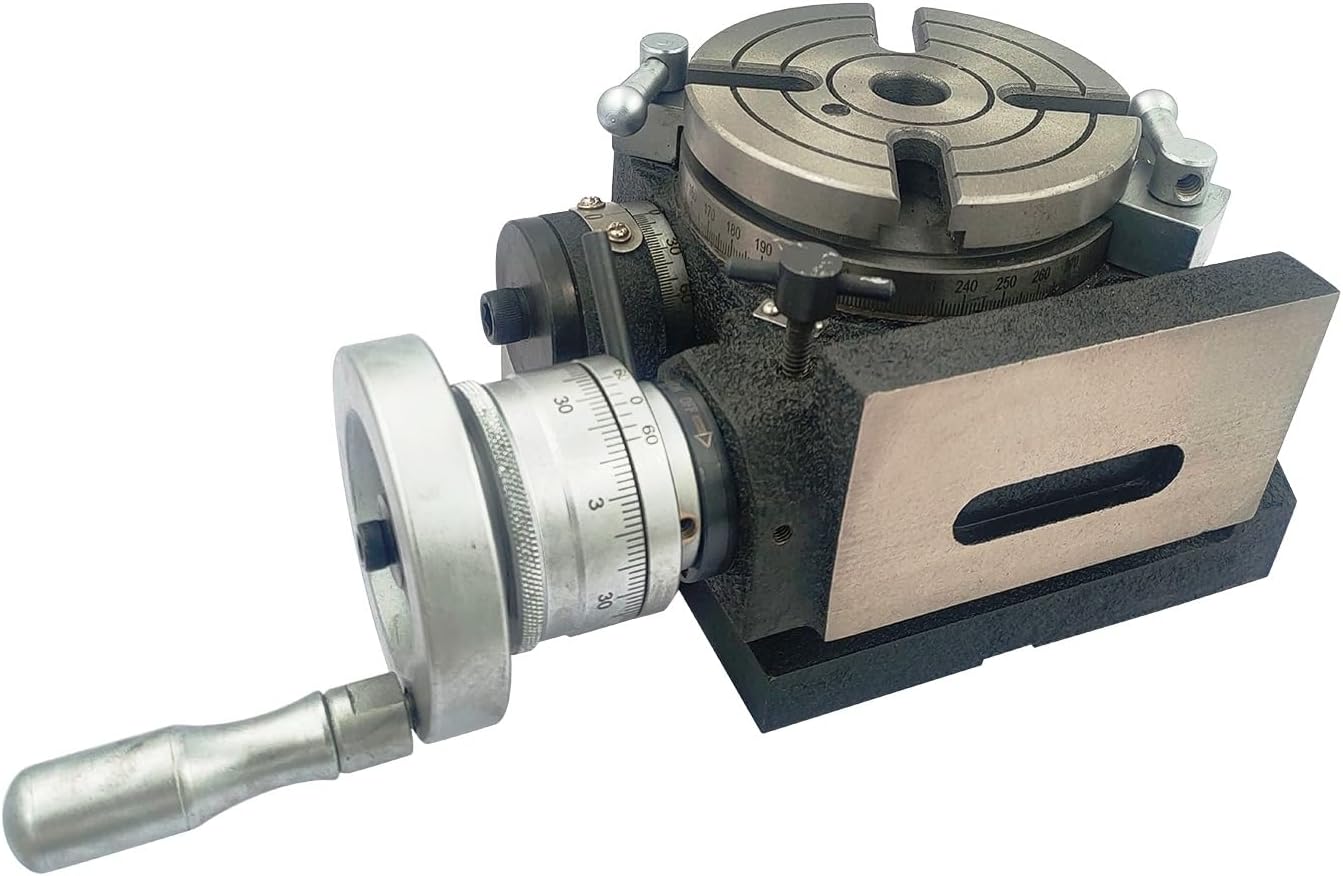

Rigid & Precision made, cast iron HV4- 4 Slots has tilting feature and can also be mounted horizontal & vertically. Diameter of the rotary table is 110 mm. Tilt calibrated 0-90°. Positive stops to locate horizontal / vertical positions. Dis-engageable handwheel for free table rotation. Lubrication points to worm and table rotation. Alloy steel worm. Cast iron gear. Micro collar graduated in steps of 1 min. Worm gear ratio : 1:90, One rotation of the hand-wheel rotates the table 4 degrees Specification: Table diameter : 110 mm II 4" Inch base diameter : 175 x 45 mm , Tee slot width : 11 mm Height ( horizontal) : 120mm, center height in vertical position : 80mm center bore : 2MT

• Use of product-A rotary table is a precision tool used predominantly in metalworking, particularly in machining operations like milling and drilling. Its primary function lies in enabling machining at precise angular intervals around a fixed point, commonly referred to as indexing. This capability facilitates the creation of intricate geometries, circular features, and multi-sided machining without the need for manual repositioning of the workpiece. By mounting the workpiece on the rotary table and rotating it, machinists can execute complex operations such as gear cutting, spiral grooving, and helical cuts with high precision.
• Rigid & Precision made, cast iron HV4- 4 Slots has tilting feature and can also be mounted horizontal & vertically. Diameter of the rotary table is 110 mm. Tilt calibrated 0-90°.
• Positive stops to locate horizontal / vertical positions. Dis-engageable handwheel for free table rotation. Lubrication points to worm and table rotation. Alloy steel worm. Cast iron gear. Micro collar graduated in steps of 1 min.
• Worm gear ratio : 1:90, One rotation of the hand-wheel rotates the table 4 degrees Specification: Table diameter : 110 mm II 4" Inch
• Base diameter : 175 x 45 mm , Tee slot width : 11 mm Height ( horizontal) : 120mm, center height in vertical position : 80mm center bore : 2MT
• Robust Construction: Built with quality materials, this rotary table boasts a sturdy and durable design, providing long-lasting reliability in your workshop. Worm Gear Ratio - 1:90, which means that 1 handle rotation shall turn the table by 4 Degrees
• Versatile Compatibility: Compatible with a wide range of machining tasks, including milling, drilling, cutting threads, and more, making it a versatile addition to your workshop.
