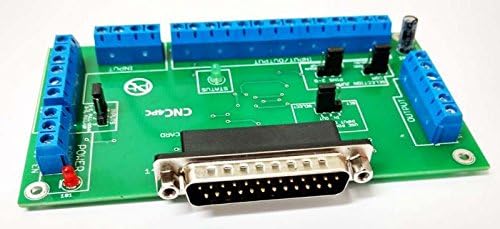

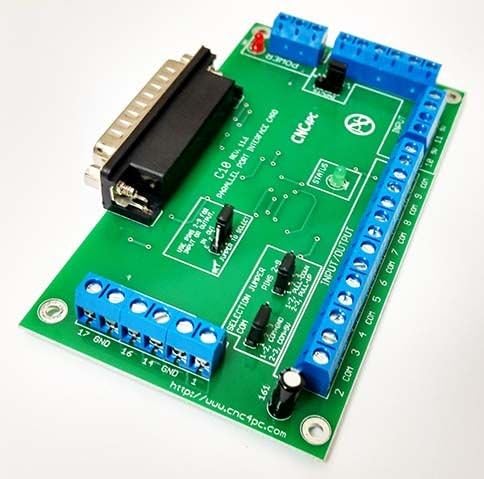

C10 - BI-Directional Parallel Port CNC Breakout Board
4.6 (127 items)
Limited Time Sale$18.60 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215173671 | Release Date | 2026/04/12 | List Price | $12.40 | Model Number | 215173671 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This card provides an easy way of interfacing your inputs and outputs from you parallel port. It provides terminals for the connections and conditions the signals for use in CNC applications. -Output pins 1, 2, 3, 4, 5, 6, 7, 8, 9, 14, 16, 17. Or 1, 14, 16, 17. -Input pins 10, 11, 12, 13, 15. Or 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 15. -Input and output pins with close by ground or +5vdc connections -Input pins 10, 11, 12, 13, 15. -Input and output pins with close by ground or +5vdc connections -Works directly with popular CNC hardware and software. -All TTL 5VDC signals. -Screw-On connections for all terminals. -Status LEDs for enable.
- EEE 1284 Standard compatible.
- PULL-UP or PULL-DOWN selection for inputs.
- Buffered inputs and outputs.
- Bidirectional pins 2-9.
- External Enable Pin (EN).
| Brand | CNC4PC |
|---|---|
| Style Name | Classic |
| Manufacturer | CNC4PC |
| Model Number | C10 |
| Operating System | Windows, macOS, Linux |
| Compatible Devices | Desktop Computer, Laptop |
| Hardware Interface | IEEE 1284 |
