CAN Recorder CAN Bus Data Logger Offline Recording Offline Playback Relay Battery-Powered SD Card Storage

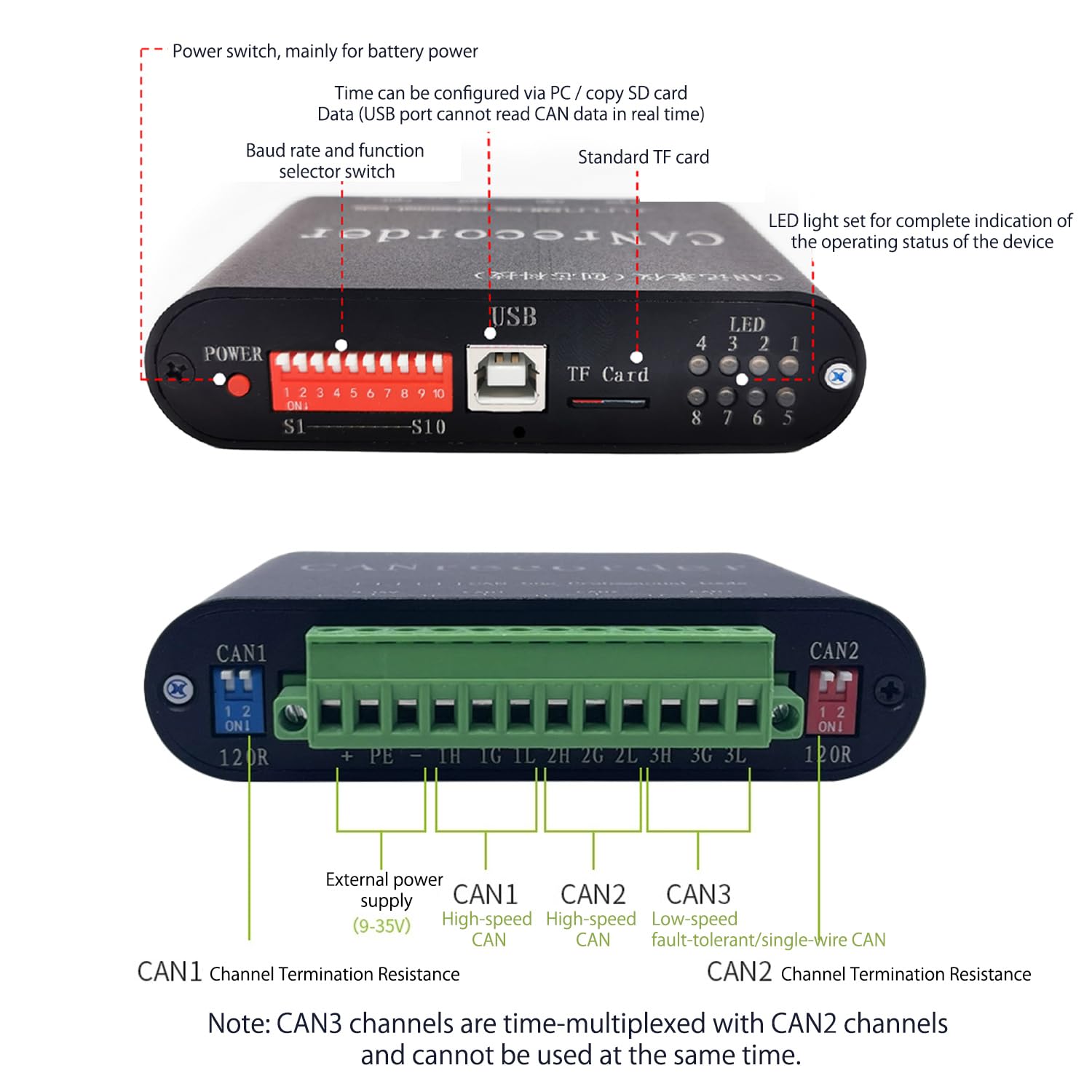

2-channel CAN digital signal recording channel After the configuration is completed, it runs independently, the default configuration supports a 32GB TF card, and the user can replace the memory card (support more than 1TB), two channels can work at the same time, storage. CAN interface type: high-speed CAN, fault-tolerant CAN, single-wire CAN, etc; When recording messages, you can set up filtering conditions according to user requirements to filter out irrelevant messages. Message recording, support for memory card scrolling record or full stop two modes File size can be set for file storage; Internal clock with RTC, which can be set after connecting to the host computer. USB interface, you can configure the device or read and write TF card; The stored data format can be exported CSV, ASC, txt, .can format data Power supply voltage: 9-36VDC (DC power supply using industrial sockets, to ensure stability). Vehicle power supply can be used Operating temperature: -40° C ~ +85° C Rugged and drop-resistant, meets the requirements of automotive testing Power supply: 1.Battery power: built-in 2500mAh high-capacity battery, can run for 15 hours without power supply. 2.USB power supply: 5V power supply through USB cable, can be connected to cell phone charger/computer. 3.DC power supply: 9V-35V wide range power supply, 0.5A.

• 2-channel CAN digital signal recording channel,Support offline relay function.
• CAN interface type: high-speed CAN, fault-tolerant CAN, single-wire CAN.
• Message recording, support for memory card scrolling record or full stop two modes.

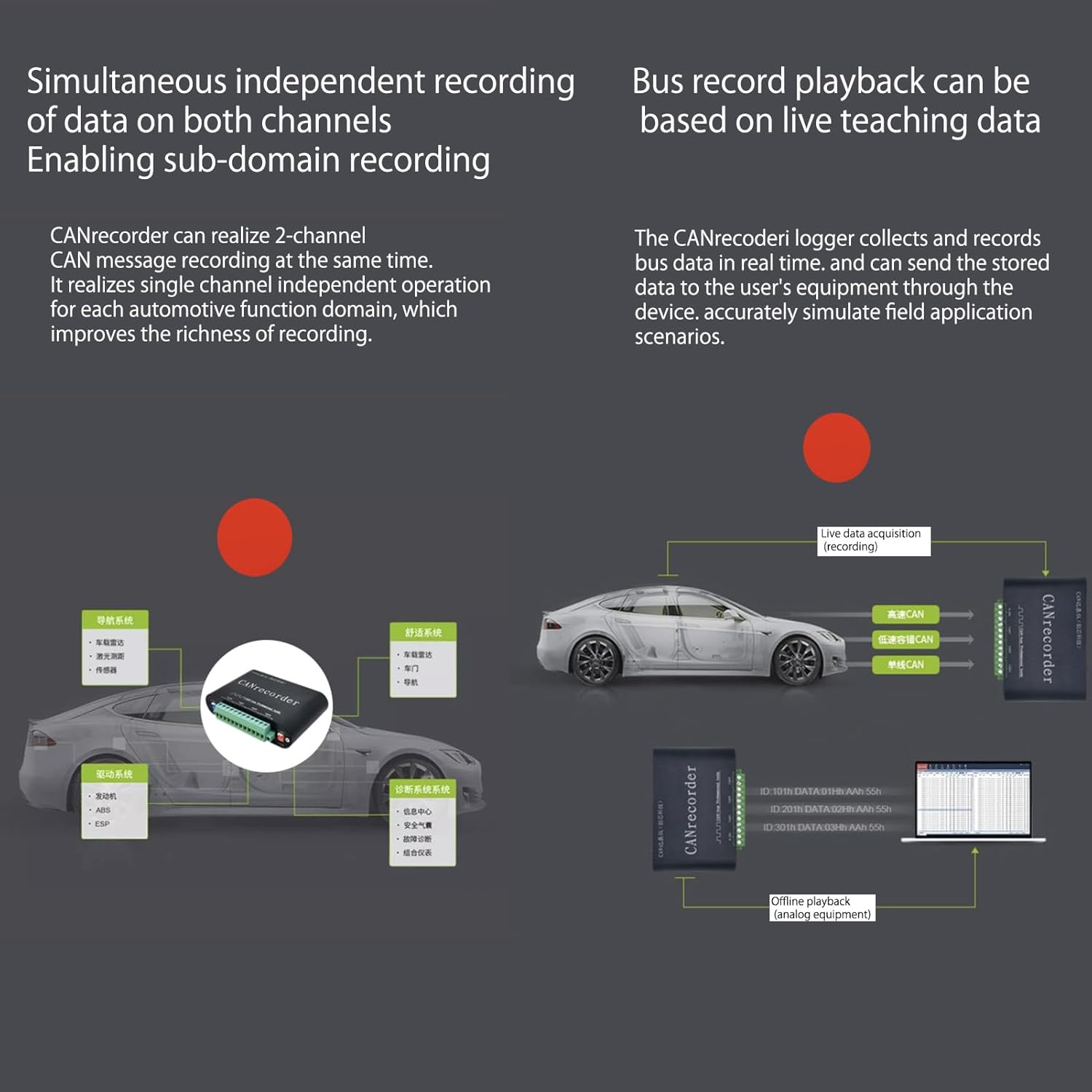

• Black and white list mode effectively reduces load. Simultaneous independent recording of data on both channels, enabling sub-domain recording
• Bus record playback can mimic on-site teaching evidence, Configurable for any baud rate, termination resistance and error frame logging.
