Car Body Repair Equipment 6600LB/3000KG Loading Capacity Auto Body Frame Puller Straightener 10Ton PSI Car Frame Machine Frame Puller Set with Hydraulic Jack

SpecificationsLength: 92.5"/2350mmWidth: 74.8"/1900mmHeight: 7.87"/200mmAir Supply Required: 100-120PSI(0.6-0.8MPa)Hydraulic Power: 5,000PSI(35MPa)Pulling Capacity of Tower: 10Ton(98KN)Range of Tower: 180°Max Loading Capacity: 6600lbs/3000kgsFrame machines for auto body frame repair characteristic1.Movable working bench,small working place needed.2.Long service life foot pump is equipped.3.It can be moved to anywhere you need.4.Patent design of main clamp jaw, one screw,and fixes the car body and the main clamp together.5.Scientific design, fixed firmly, quick operation,and greatly improve the work efficiency.6.High quality chain and forged sheet metal tools are easy and convenient to operate with long service life.

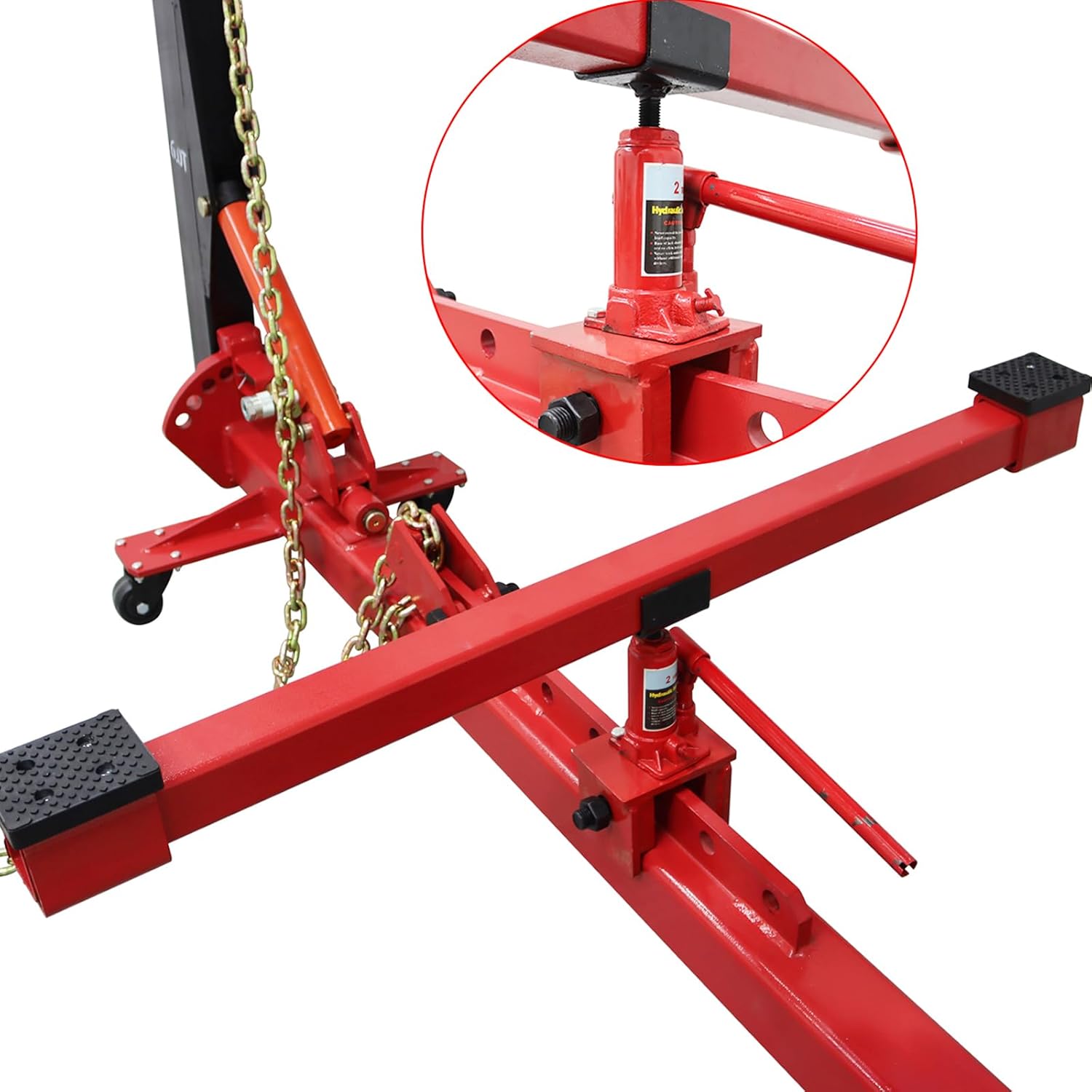

• Powerful Hydraulic System: Equipped with 10 tons of Psi hydraulic power, the hydraulic system delivers 5000PSI (35MPa) of pressure, strong kinetic energy, long life
• Easy to Use: The tower angle can be adjusted up to 180°, featuring multiple adjustable holes to accommodate various stretching angles. Movable working bench, small working place needed. It can be moved to anywhere you need
• Stable and Secure Fixtures: The double-head clamp provides excellent clamping force, ensuring the body is fixed more smoothly and securely. The high-strength chain, with exceptional tensile strength, ensures durability and stability during operation
• Robust Construction: Built with a sturdy frame and durable materials, this frame puller set is designed to handle heavy loads up to 6600lbs/3000kgs. It also features 8 tire support frames for added stability
• Tool Cart: Removable Tool Cart, complimentary hook, you can put repair tools on it, where to use where to push. The set includes car sheet metal repair tools, a long chain, a short chain, and jig, wire rope, sling, etc
