CHT3541X-8 Multi-Channel DC Resistance Tester DC Low Resistance Tester 0.01mΩ~300.00kΩ
4.6 (36 items)
Limited Time Sale$778.80 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211159969 | Release Date | 2026/04/04 | List Price | $519.20 | Model Number | 211159969 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

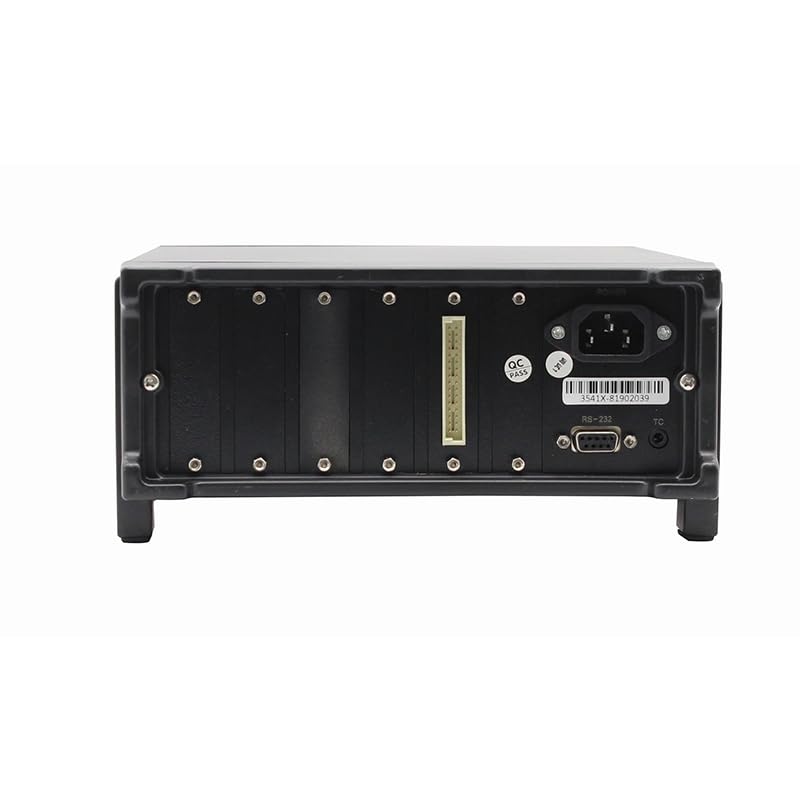

The CHT3541X multi-channel resistance tester adopts the plug-in design. A maximum of six eight-channel test cards can be configured for the CHT3541X, which can complete a maximum of 48 resistance tests. Test range of 0.01mΩ~300.00kΩ, basic accuracy of 0.05%. The instrument is equipped with standard RS-232C serial port and optional I/0 port jack, and complete multi-channel resistance quick sorting test with automatic test equipment.
- Power supply:Voltage :90VAC-250VAC; Frequency :47Hz~400Hz: Frequency power :10VA(host)2VA
- Port:RS-232C Interface (SCPI Protocol),Flip-flop:Internal trigger, manual trigger, external trigger
- Test speed:30 times per second, 10 times per second, 3 times per second
- Number of channels:8-way measurement card, serial scanning test in cartoon channel, parallel test between test cards
- Display result:Up to 48 overview displays
| Color | Gray |
|---|---|
| Model | CHT3541X-8 |
| Brand Name | Tonghui |
| Style Name | Industry |
| Manufacturer | Tonghui |
| Power Source | Corded Electric |
| Included Components | ABS |
