CHT3564 Battery Tester with 10micro V - 1000V Voltage Range

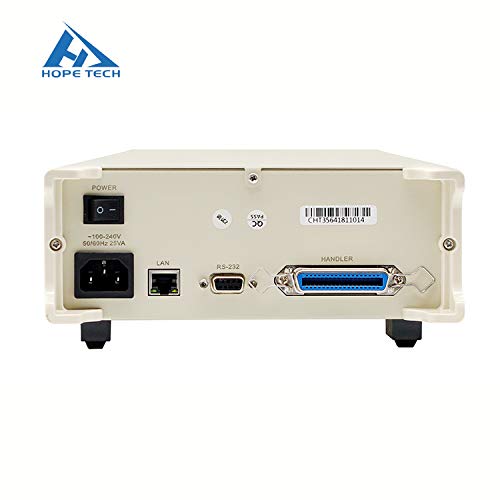

●CHT3564 high-accuracy battery internal resistance tester is designed for the new measurement requirements of the battery industry. It is special for measurement use in low-resistance batteries, large-scale lithium battery packs and fast product sorting in production lines. ●With the technology advantage of Hopetech in battery internal resistance testing for many years, the CHT3564 is able to offer a high resolution of 0.1uΩ, maximum test voltage of 1100V and test cycle of 10 ms. ModelCHT3564 Display4.3 inch TFT-LCD display Measurement parametersESR,DCV ResistanceAccuracy0.30% Range0.1μΩ ~ 3kΩ VoltageAccuracy0.01% Range10μV~1100V Signal SourceMeasurement current frequency:1kHz; Open circuit voltage:<5V;Test current:<100mA Range7 different ranges-3mΩ,30mΩ,300mΩ,3Ω,30Ω,300Ω,3kΩ; Auto and manual modes are available in each range Measuring speed100 meas/sec.,50 meas/sec., 20 meas/sec., 3 meas/sec. Maximum display valueResistance32,000 Voltage1100,00 CalibrationShort-circuit reset for all ranges; Comparator30 sets of data records, 7 bins sorting, bin count Othersdata report export, saved in USB disk Trigger modeInternal/manual/external trigger InterfaceRS-232C, Handler (PLC interface), USB(Host) Power supplyVoltage: 90VAC~250VAC; Frequency: 47Hz~400Hz; Power(max)15VA Dimension （L*W*D）385 mm*249 mm*102 mm Weight3 kg

• battery meter, high voltage battery tester, battery internal resistance meter
