Clamp Earth Ground Resistance Tester Meter Clamp On Ground Resistance Measurement with Resistance 0.010Ω-1500Ω Resolution 0.001 Current 0.000mA-40.0A

QIUSUO Clamp Earth Ground Resistance Tester Meter Clamp On Ground Resistance Measurement with Resistance 0.010Ω-1500Ω Resolution 0.001 Current 0.000mA-40.0A Technical specifications Resistance range 0.010Ω-1500Ω Resistance resolution 0.001Ω Maximum precision of resistance ± (1% rdg + 0.01Ω) Current range 0.000mA-40.0A Current resolution 0.001mA Maximum accuracy of current ± (1.5%rdg + 0.5mA) Power Supply:DC: 6V ( 4 PCS of LR6 Alkaline batteries)(batteries not included during shipment!!!) Single Measurement Time:0.5 second LCD Screen:4 Digits LCD display, Screen : 47mm×28.5mm Data Memory:999 sets Audible and Visual Alarm:“du—du—du” for alarming , press AL for on/off Alarm Threshold Setting Range:Resistance : 1-199Ω; Current:1-499mA Protection Level:Double insulation Shift:Automatically External Magnet / Electric Field:<40A/m;<1V/m Frequency For Resistance Test:>1KHz Interface:USB, Software, Data upload computer

• Resistance 0.010Ω-1500Ω Resolution 0.001 Current 0.000mA-40.0A

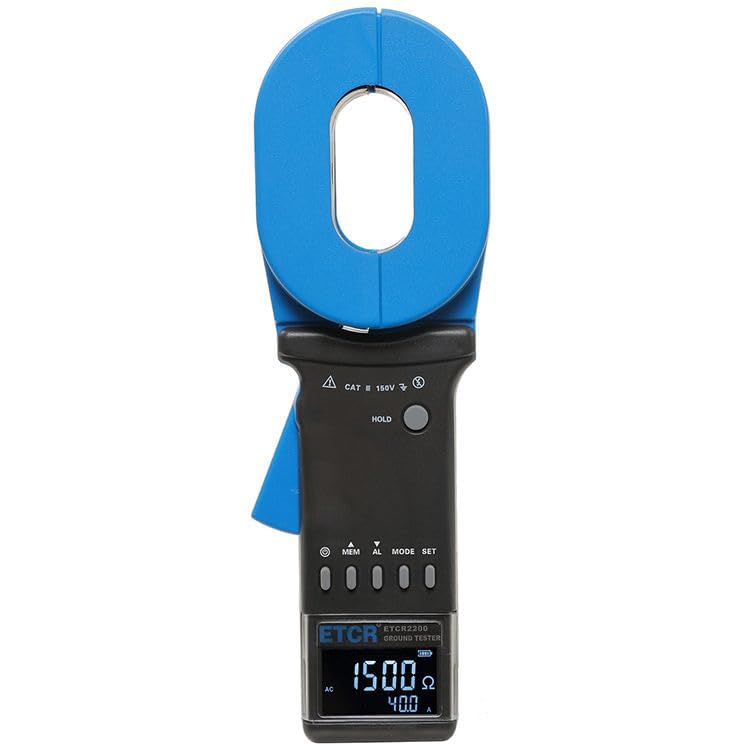

• Resistance and current are displayed on the same screen, and the test result is clear at a glance
• Sound and light alarm function, data storage, data retention function. Clock function, display the current test time.

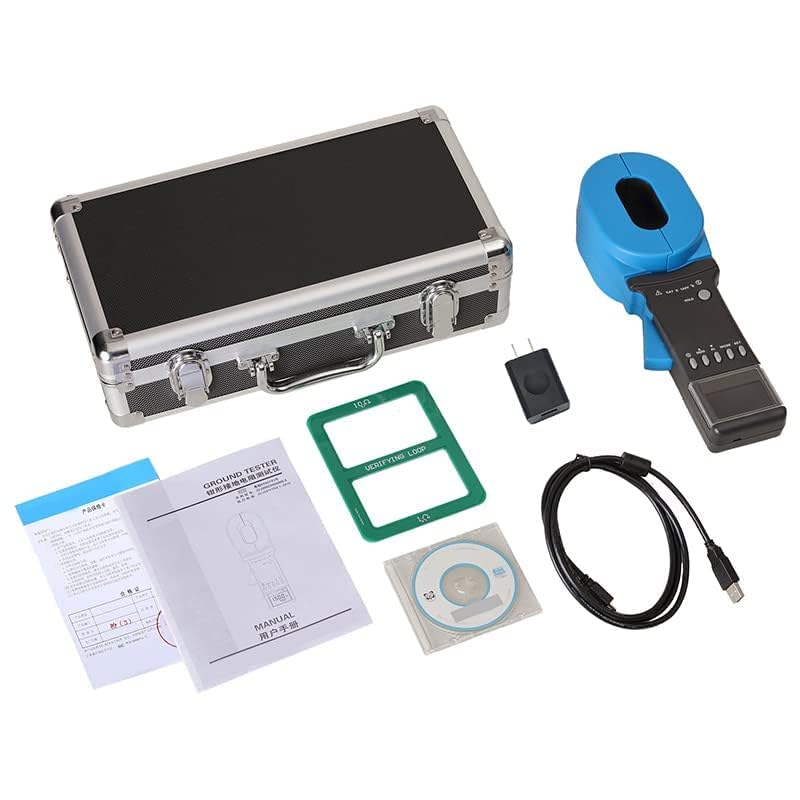

• Equipped with USB interface, communication cable and software, the stored data can be uploaded to the computer, easy to read, save, print and so on.
• A major breakthrough in grounding resistance testing technology, non-contact measurement is safe and fast. When measuring the grounding system with loop, no need to disconnect the grounding lead wire, no auxiliary grounding pole, saving time and labor.
