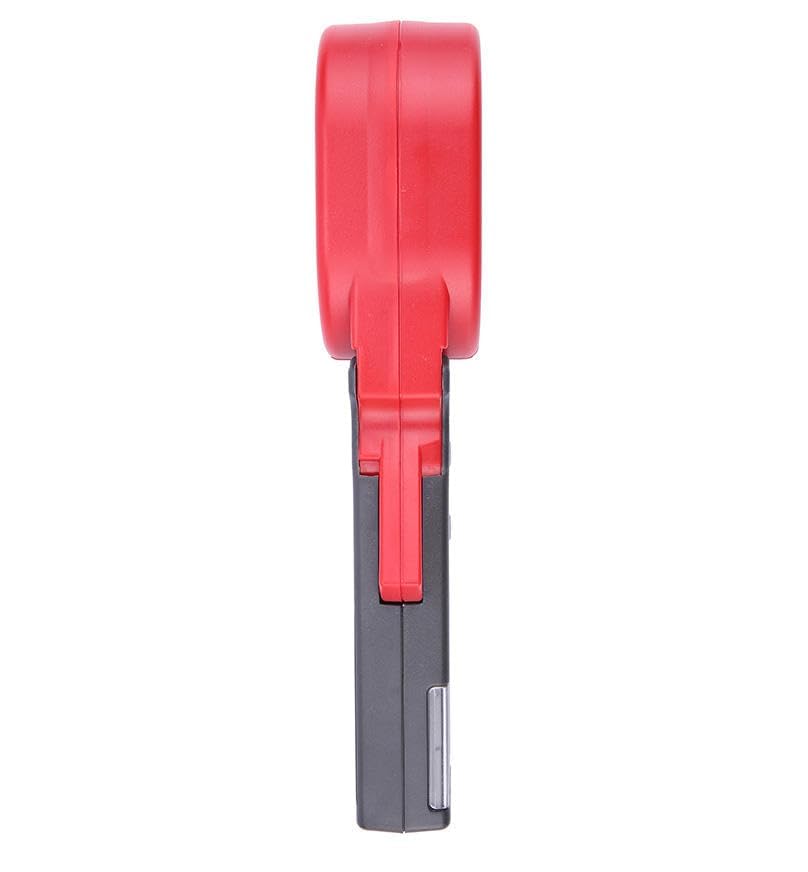

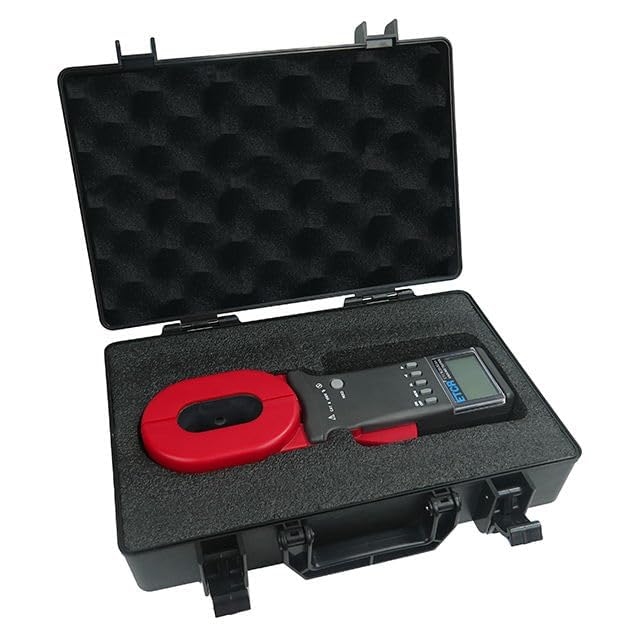

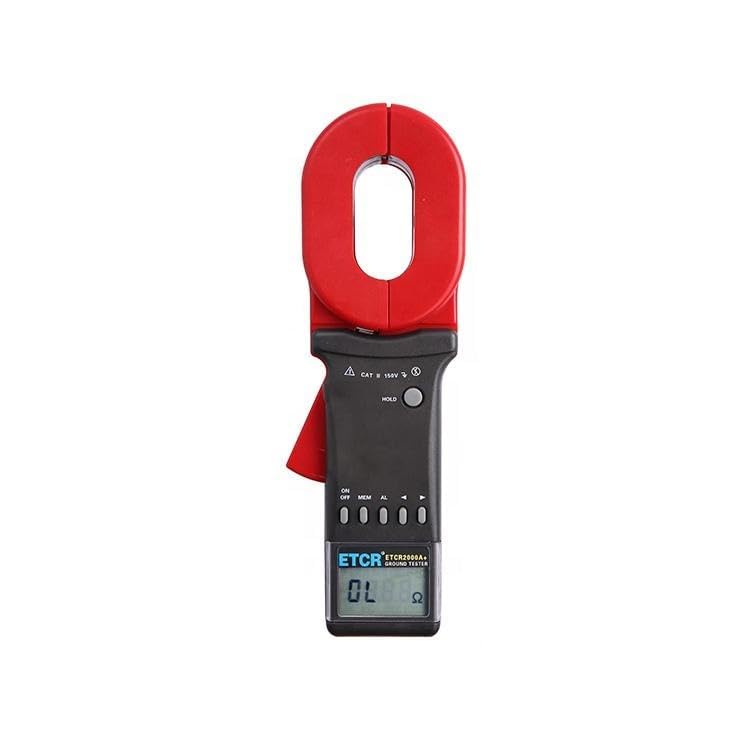

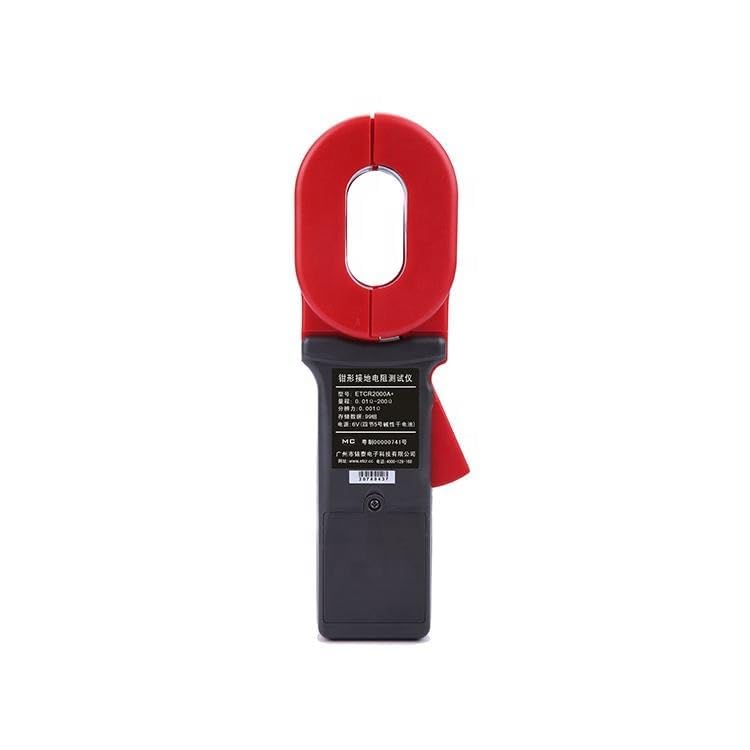

Clamp Ground Resistance Meter Earth Resistance Tester Clamp-On Earth Resistance Tester Meter with Resistance Range 0.01 to 200Ω Resolution 0.001Ω

QIUSUO Clamp Ground Resistance Meter Earth Resistance Tester Clamp-On Earth Resistance Tester Meter with Resistance Range 0.01 to 200Ω Resolution 0.001Ω Overview: This clamp earth resistance tester is a large diameter resistance clamp meter, jaw specifications 65 × 32mm, resistance range of 0.01-200Ω, resolution of 0.001Ω of the basic models, accuracy of ± (1% + 0.01Ω), the instrument is designed with 6 buttons, the function of the direct, but also has the data retention and preservation, as well as audible and visual alarms and alarm settings. Technical specification Resistance range 0.01-200Ω, resolution of 0.001Ω ;Accuracy ± (1% + 0.01Ω) Clamp Size:65mm×32mm Tester Size:285mmx85mmx56mm Tester Weight:2.3kg(include accessories) Power Supply:6VDC(4 PCS of No.5 Akaline dry batteries) (batteries not included during the shipment!!!) Single Measurement Time:0.5 second LCD Screen:4 Digits LCD display, 47mm x 28.5mm Data Memory:99 groups Audible And Visible Alarm:"du-du—du" for alarming, press AL to turn on/off Alarm :Threshold Setting Range Resistance :1-199Ω; current:1-499mA(only C type) Jaw Opening Size:32mm Protection Class:Double insulation Shift:Automatically RS232 Interface:Optional Accessories:Tester:1PCS; Test Ring:1PCS; Instrument Case: 1PCS

• Sound and light alarm function, data storage, data retention function.
• A major breakthrough in grounding resistance testing technology, non-contact measurement is safe and fast.
• In the measurement of the grounding system with a loop, without disconnecting the grounding lead, without auxiliary grounding pole, saving time and effort.
• Clamp grounding resistance meter can measure the ground fault which can not be measured by traditional methods, and can be applied to the occasions which can not be measured by traditional methods.
• This clamp earth resistance tester is a large diameter resistance clamp meter, jaw specifications 65 × 32mm, resistance range of 0.01-200Ω, resolution of 0.001Ω of the basic models, accuracy of ± (1% + 0.01Ω), the instrument is designed with 6 buttons, the function of the direct, but also has the data retention and preservation, as well as audible and visual alarms and alarm settings.
