CNCTOPBAOS 750W 220V AC Servo Motor Kit, 23-Bit Optical Encoder, 3000-6000rpm 2.39N.m/7.17N.m 80mm Flange 19mm Shaft, CNC Servo Driver Controller System Support RS485/Jog/Position/Speed/Torque Control
4.0 (34 items)
Limited Time Sale$165.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210095534 | Release Date | 2026/04/02 | List Price | $110.00 | Model Number | 210095534 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

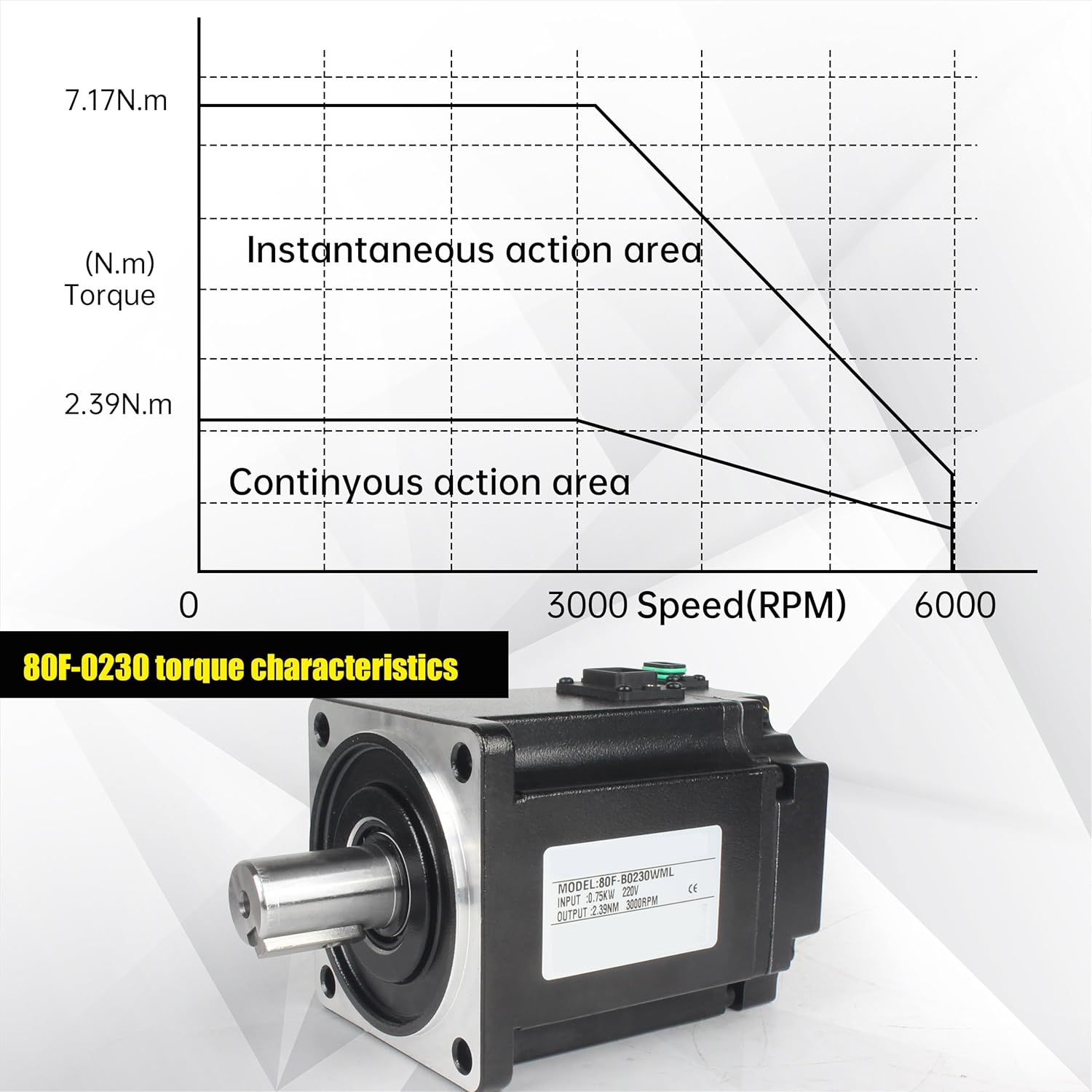

- Motor Parameters:Model 80F-B0230WML; Power: 750W; Poles: 5 pairs; Voltage: 220V; Rated speed: 3000r/min; Peak speed:6000r/min ;Rated torque: 2.39N.m; Instantaneous max torque:7.17N.m; Rated current: 4.4A; Insulation class: F; Waterproof grade: IP65; Net weight: 2.25kg/4.95LB
- Driver parameters: Model SDF08NK8X1; Max current: 10.5A; Voltage: AC170-253V; Operates with a single-phase or three-phase AC 220V power supply, and the L and N terminals are for the 220V power supply; Cooling method: Heat dissipation air cooling; Control mode: SVPWM; Operating temperature: 0~55℃; Storage temperature:-20~80℃; Protection level: IP54; Comes with a six of seven-segment display LED and four function keys for display and operation
- 23-bit Encoder: Matching with 23 bit multi turn absolute value optical encoder, 5 pairs of poles, ensuring high positioning accuracy, allowing for fine position control and meeting the demands of high-precision motion control scenarios; A variety of intelligent monitoring functions and operation panels are convenient for users to debug and diagnose
- Multi-functional Control Modes: Has built-in braking function and multiple protection functions such as under-voltage, over-voltage, overload, over-current, encoder exception, and position error; Supports various control modes including position control, speed control, torque control, jog operation, and RS485 communication
- More Functions: Supports saving, reading, backing up, and restoring parameters; 137 adjustable parameters covering control modes, gains, I/O definitions, communication, etc; Customizable input/output ports: 7 input points definable as 23 functions and 4 output points; Internal PLC function: Eliminates the need for external PLC in simple control scenarios; Compatible with debugging software for parameter configuration and monitoring
| Model | 80F-0230TBL |
|---|---|
| Brand Name | CNCTOPBAOS |
| Manufacturer | Changzhou Rattm Motor Co.,Ltd |
| Material Type | Copper |
