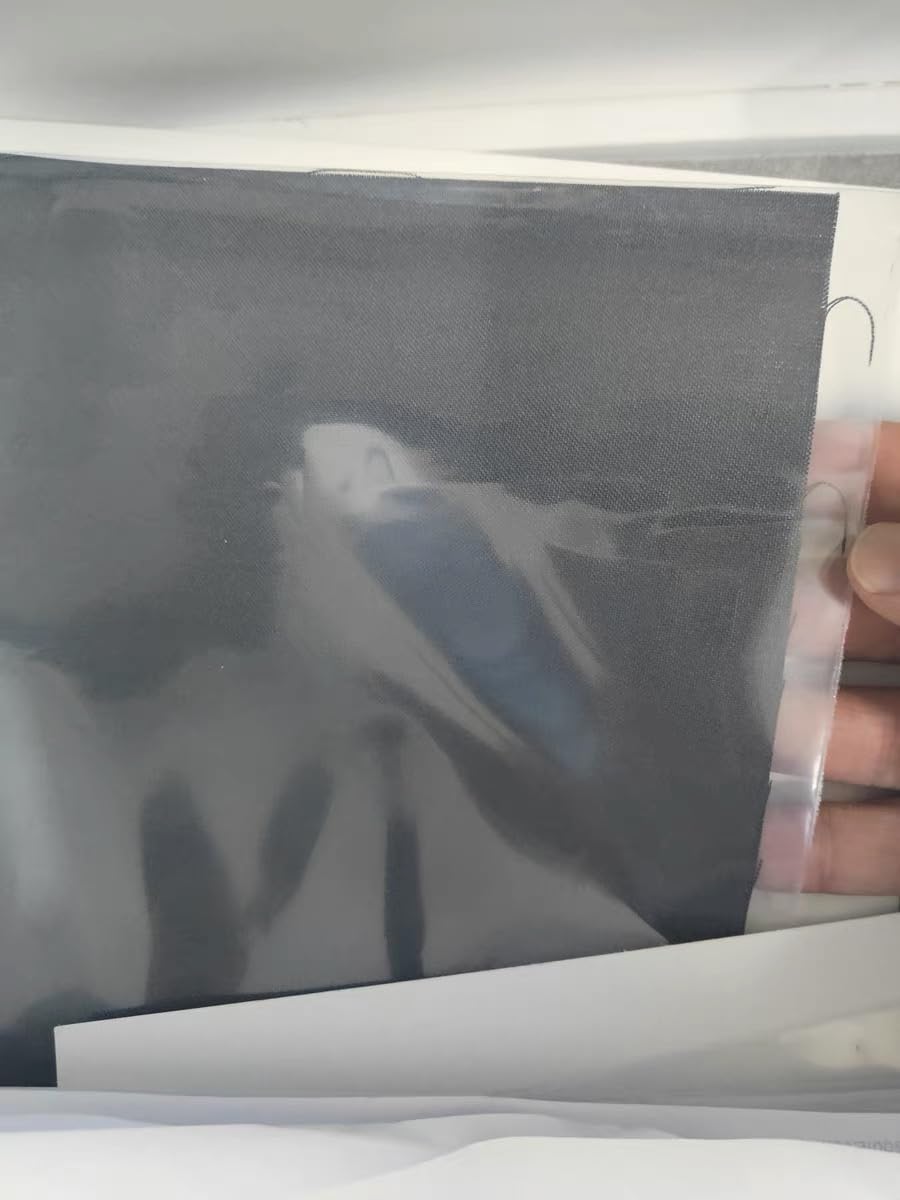

Conductive Carbon Paper H-060 Fuel Cell Specific Carbon Paper (1, 5% hydrophobic/20 x 20cm)

Model: H-060 Thickness: 0.19 mm Resistivity: 5.0 m Ω· cm Porosity: 78% Volume density: 0.44 g/cm3 Surface roughness: 8 μm Gas permeability: 1900 ml.mm/(cm2. hr. mmAq) Bending strength: 40 MPa Product use: 1. For preparing gas diffusion layer of hydrogen oxygen fuel cell 2. Substrates for biofuel cells 3. Used for supercapacitor 4. Prepare waterproof and breathable layer with air battery 5. Suitable for growing / depositing materials  Five core functions: gas conduction: guiding gas from the guide groove of the graphite plate to the catalyst layer Drainage: Successfully discharge the reactive biomass water outside the catalyst layer to avoid flooding issues Conductivity: a conductor of current； Heat dissipation: Provides heat dissipation function during fuel cell reactions Support: Sufficient strength to support MEA when it deforms due to excessive water absorption

• H-060 carbon paper can be used in PAFC and PEFC cells. It has good tolerance, good mechanical strength, high conductivity and gas permeability. It is very suitable for the gas diffusion layer of fuel cells.
• Hydrophilic carbon paper is relatively hydrophilic and has no hydrophobic layer. Hydrophobic carbon paper added hydrophobic layer can be waterproof.
• Carbon paper is prepared from PAN based carbon fibers. It can be used in PAFC and PEFC batteries, with good tolerance, good mechanical strength, high conductivity, and gas permeability, making it very suitable for use as a gas diffusion layer in fuel cells.
• Hydrophobic carbon paper: Refers to PTFE treatment of raw carbon paper to make it more hydrophobic. Our store can provide various types of corresponding hydrophobic carbon paper, ranging from weakly hydrophobic carbon paper (treated with 5wt% PTFE) to strongly hydrophobic carbon paper (treated with 30wt% PTFE).
