CRI100 High Pressure Common Rail Injectors Tester with 0-6000us Pulse Width and 1-30Hz Injection Frequency

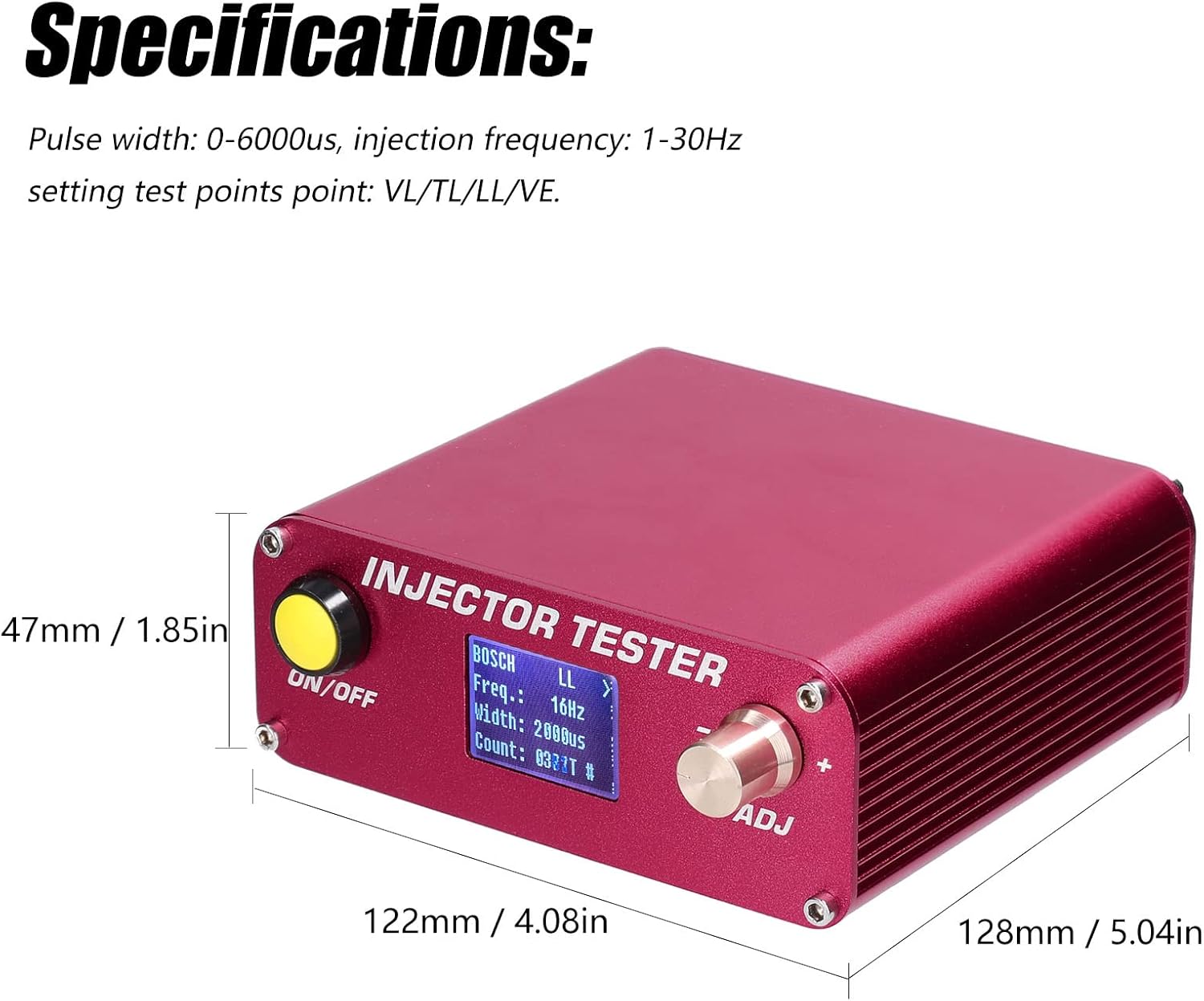

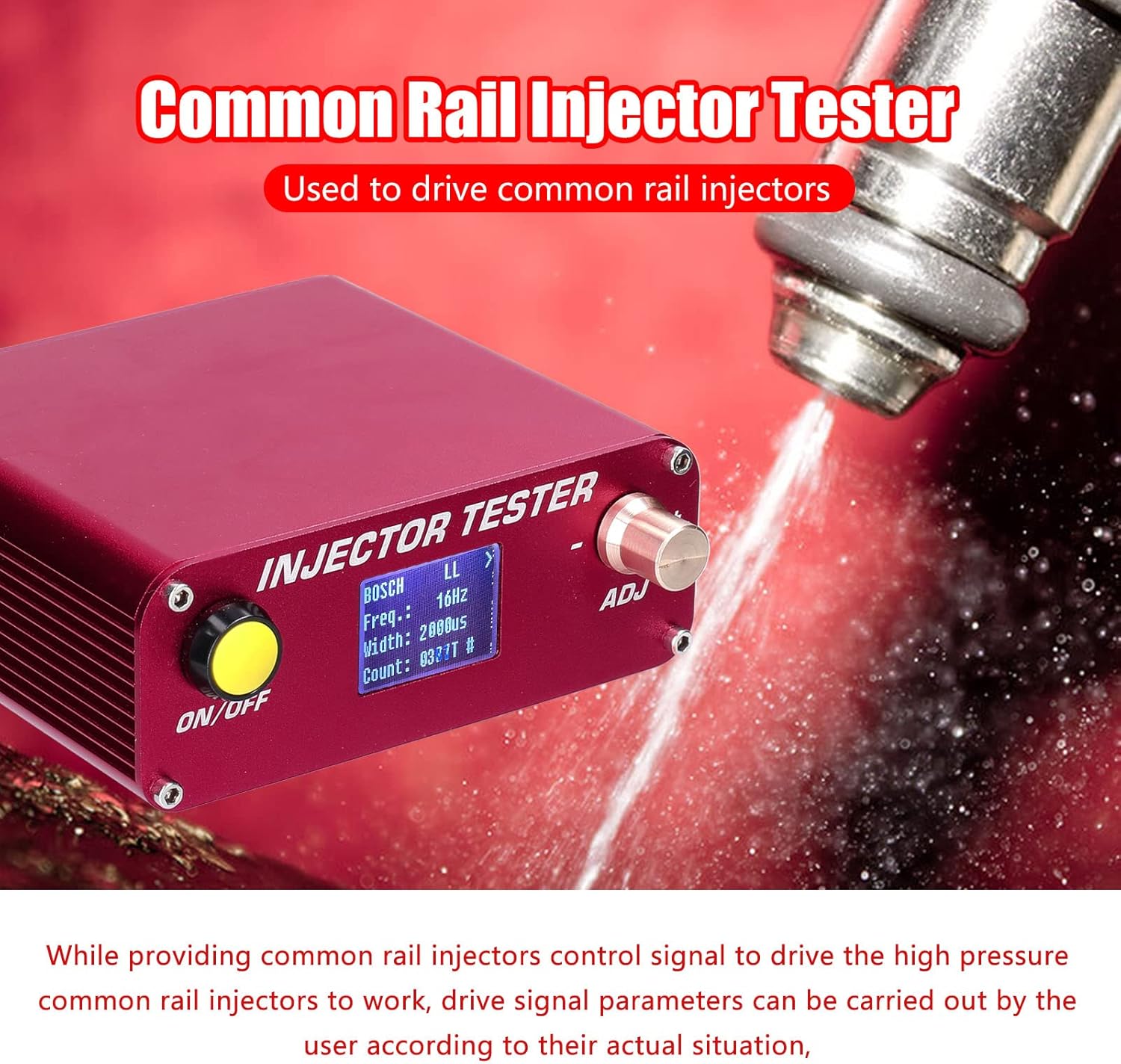

This is a kind of quality common rail injectors tester is used to drive common rail injectors, while providing common rail injectors control signal to drive the high pressure common rail injectors to work, drive signal parameters can be carried out by the user according to their actual situation, and can be saved grouped for easy maintenance personnel to high pressure common rail injectors in working condition to judge different conditions and maintenance. Specifications: Name: Common Rail Injectors Tester Material: metal+plastics Current Injectors conditions: VL, VE, LL,TL Pulse width: 0-6000us Frequency: 1-30Hz Item size: 122 * 128 * 47mm / 4.08 * 5.04 * 1.85in Item weight: 1052g / 2.32lb Package size: 255 * 205 * 100mm / 10.04 * 8.07 * 3.94in Package weight: 1217g / 2.68lb Packing List: 1 * Common Rail Injectors Tester 1 * Power plys 2 * Test Cable 5 * Wires

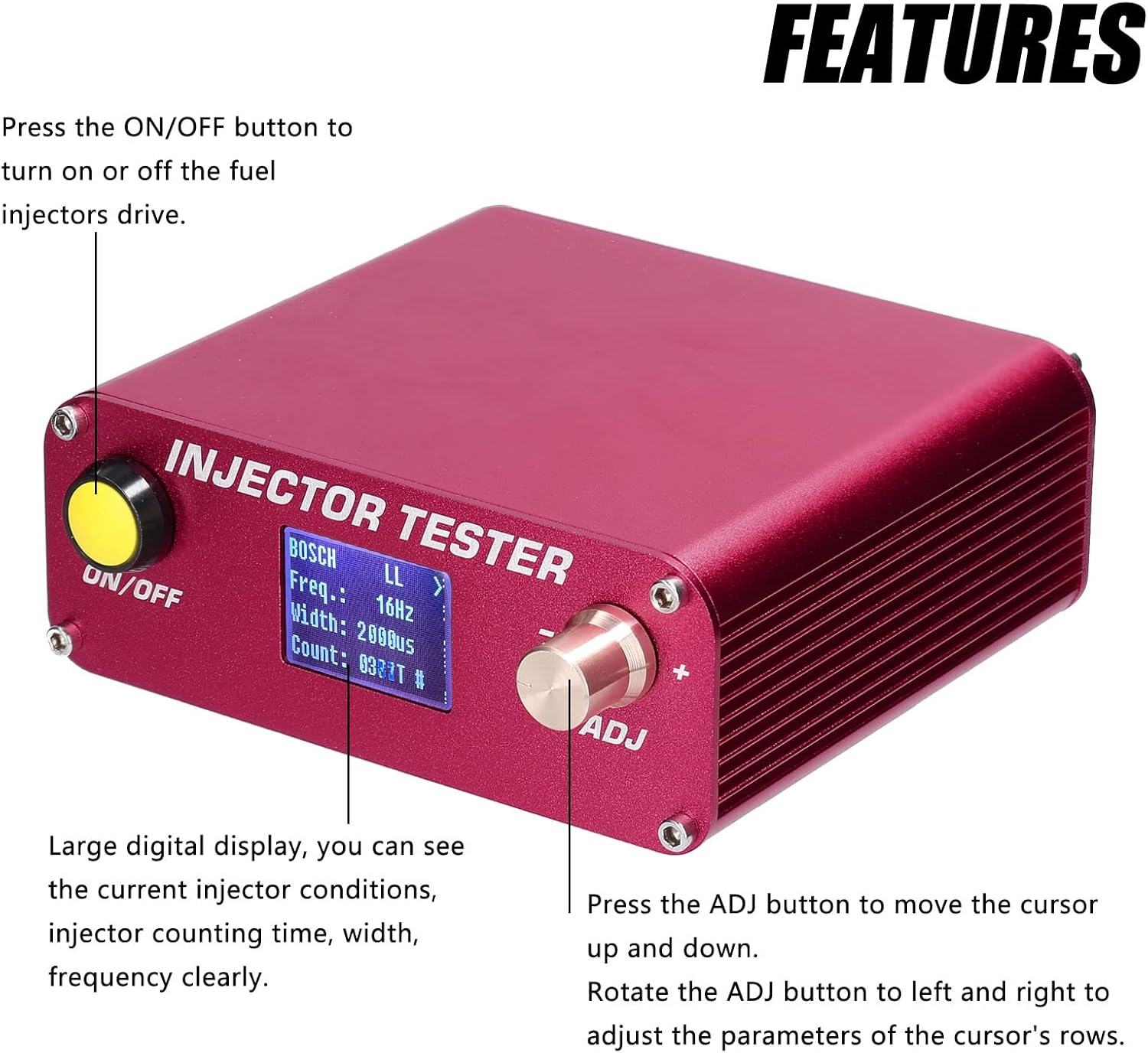

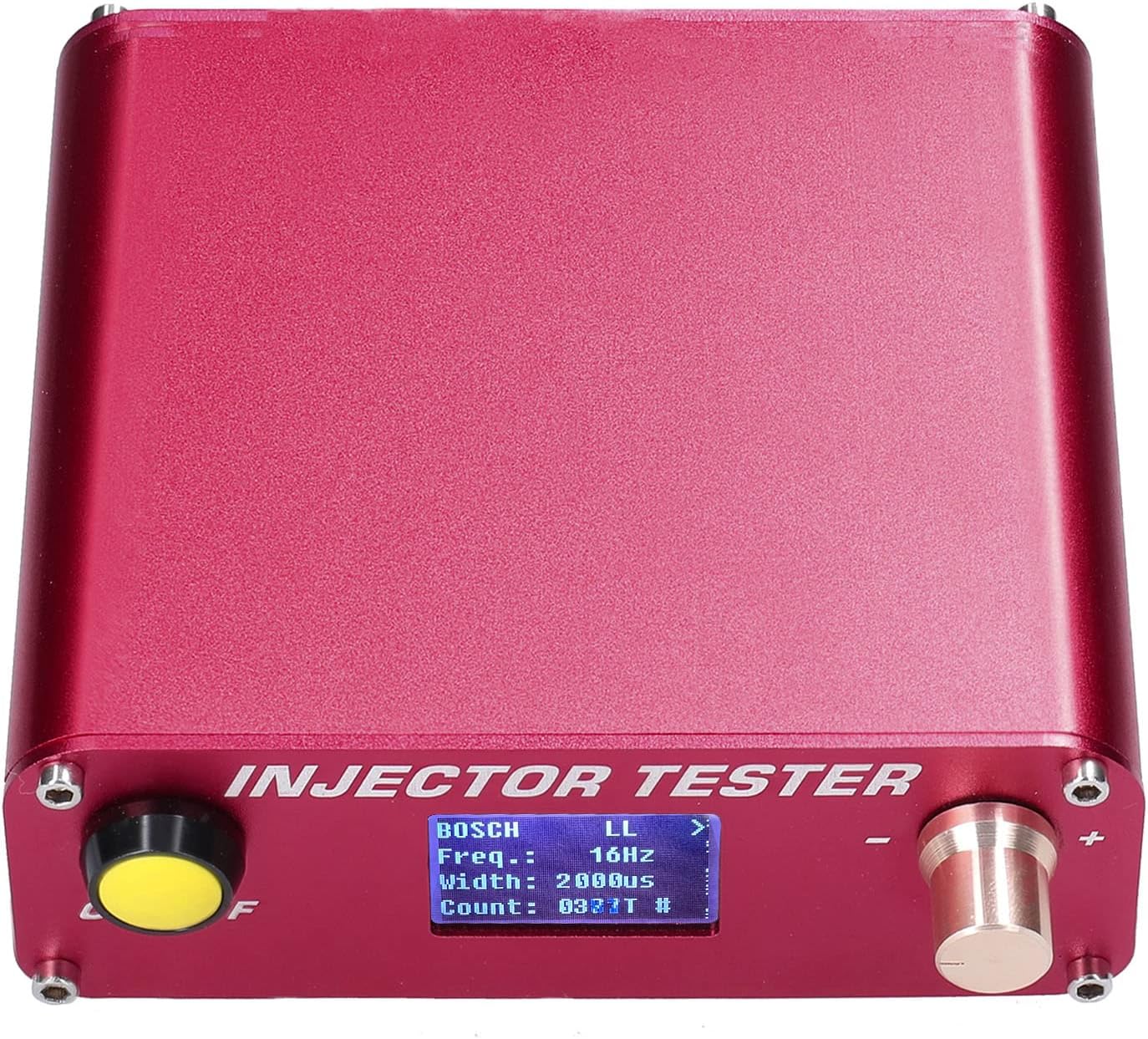

• Large digital display, you can see the current injectors conditions, injectors counting time, width, frequency clearly.
• Common parameter settable design, you can set according to your demands easily.
• port switch to a different injectors conditions.
• Press the ADJ button to move the cursor up and down.
• Rotate the ADJ button to left and right to adjust the parameters of the cursor's rows.
