Current probe Oscilloscope Probe 10/100A 300KHZ/800KHZ/2.5MHZ Apply to Measure Electrical Current(2100A 800KHZ)

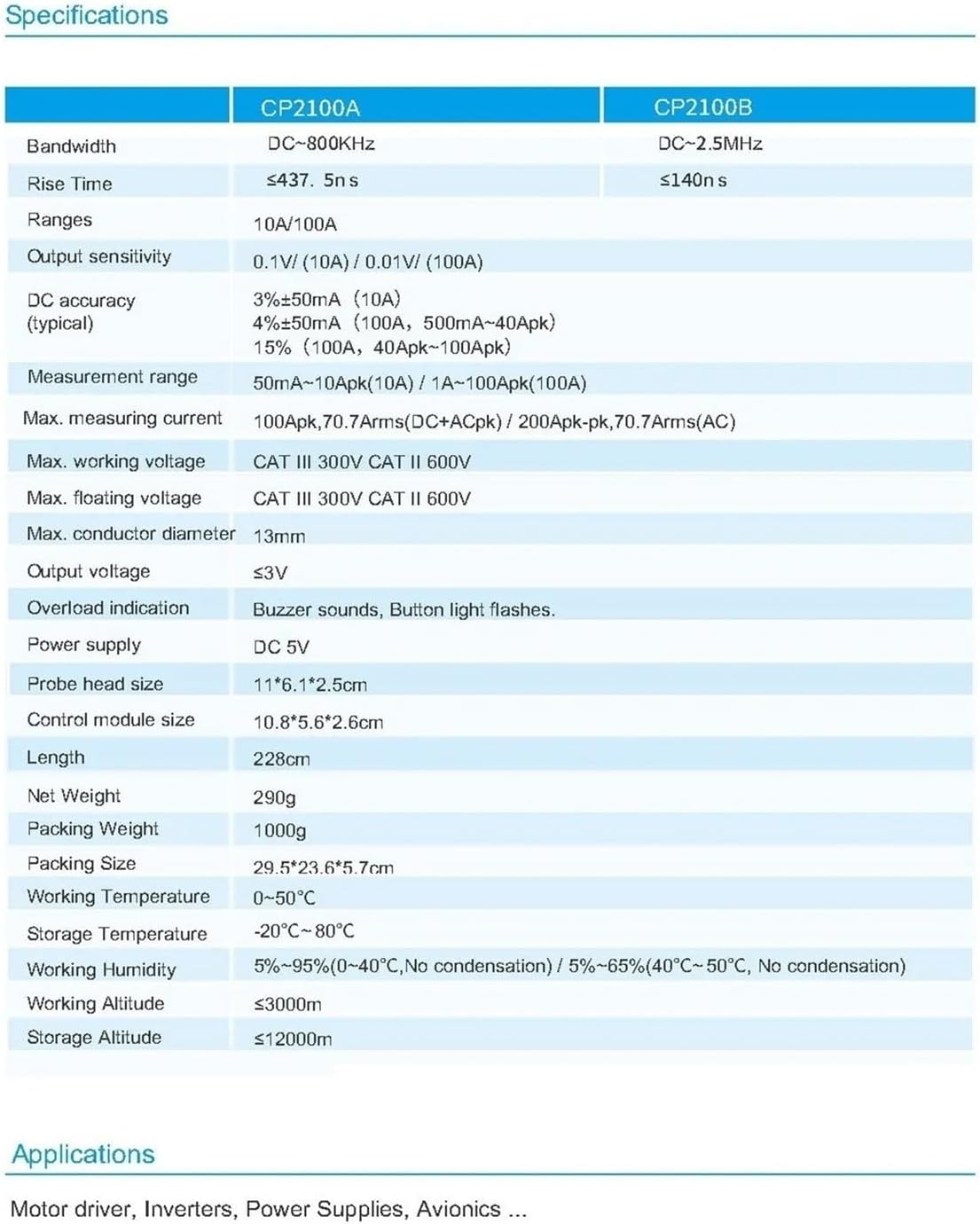

Product parameters:Bandwidth:DC~300KHz(CP2100X) /DC~800KHz(CP2100A) /DC~2.5MHz(CP2100B)Rise time: 1167ns(CP2100X) /437.5ns(CP2100A) /140ns(CP2100B)Ranges :10A/100A(Optional on the switch)Output sensitivity :0.1V/A (10A) /0.01V/A(100A)DCaccuarcy(typical):3%±50mA(10A) /4%±50mA(100A,500mA~40Apk) /15%(100A,40Apk~100Apk)Measuring range :50mA~10Apk (10A)/1A~100Apk(100A)Maximum measurable current:100Apk, 70.7Arms(DC+ACpk) /200Apk-pk, 70.7Arms (AC)Maximum working voltage :CAT III 300V CATII 600VMaximum float voltage :CAT III 300V CAT II600VMaximum conductor diameter:13mmOverload indication :The buzzer beeping, the button light flashingPower supply :DC 5VProbe head size: 11*6.1*2.5cmControl box size :10.8*5.6*2.6cmLength :228cmWeight :290gSingle package weight: 1000gSingle package size :29.5*23.6*5.7cmOperating Temperature: 0°C ~50°CStorage Temperature: -20°C ~80°COperating Humidity :5%~95% (0°C ~40°C, No condensation) /5%~65% (40°C ~50°C, No condensation)Operating Altitude :3000mStorage Altitude: 12000mUsage:Connect the BNC of the current probe to the oscilloscope (or other instrument equipment) and connect the SB cable to power the current probe;Select the appropriate range on the probe based on the current level, and the corresponding button light will turn greenAdjust the oscilloscope settings: input impedance 1M ; Select the current for the probe or display the unit as A; Set the probe attenuation multiple of the corresponding channel, set 100X for the 0.01VA range oscilloscope, and 10X for the 0.1VA range oscilloscope;Press the automatic zero adjustment button to achieve automatic zero adjustment of the probe. After successful zero adjustment, the buzzer will emit a "beep" sound; Otherwise, making three "drip drip drip" sounds indicates a failed zero adjustment; It can also be manually zeroed; The external magnetic field may have a slight impact on the DC zero position of the probe. Please do not move it extensively after the zero adjustment is completedAccording to the direction indicated by the clamp head, open the clamp of the current probe to clamp the measured conductor. Note: If the measured current flow direction is opposite to the direction indicated by the clamp head, the output is negativeAdjust the oscilloscope to obtain the best waveform;Note:When the current exceeds the range, the buzzer will sound for a long time and the button light will flashProduct Features:1. Small and exquisite: Adopting a split design, the appearance is small and exquisite, making testing convenient2. Automatic and manual zero and demagnetization, with automatic and manual zero adjustment functions, easy to use 3. Using USB power supply, directly connected to the oscilloscope USB, easy to use4. Adopting standard BNC interface, suitable for all BNC interface oscilloscopes, or using adapter suitable for multimeter5. Application fields: motor drive, power frequency, inverter, power supply, avionicsNote:The casing color has been changed from blue-gray to black, offering a more elegant and professional visual experience.==========Oscilloscope Parts & Accessories Type : Oscilloscope Probe & AccessoriesOperating Altitude : 3000mStorage Altitude : 12000m

• 1. It is a transducer that allows your oscilloscope to measure current waveforms.
• 2.The current probe is Friendly in use: turn on, clamp it over a conductor, and get a reading;
• 3.If connected to an oscilloscope via a BNC type connector, you can observe current waveforms.
• 4.The oscilloscope current probe is with Accurate circuit measurement.
• 5.【Application】Power circuit measurement and malfunction analysis; Frequency converter (or other electronic components) measurement engine; Power electronic equipment measurement.
