DAE SMB350-UL-4-B Kit, UL,12 Channels Multi-Circuit, Multi-Function Electric Monitor with 8, 200A CTs (1.02” Inner Dia.), RS485
4.7 (127 items)
Limited Time Sale$419.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 213672316 | Release Date | 2026/04/12 | List Price | $279.60 | Model Number | 213672316 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

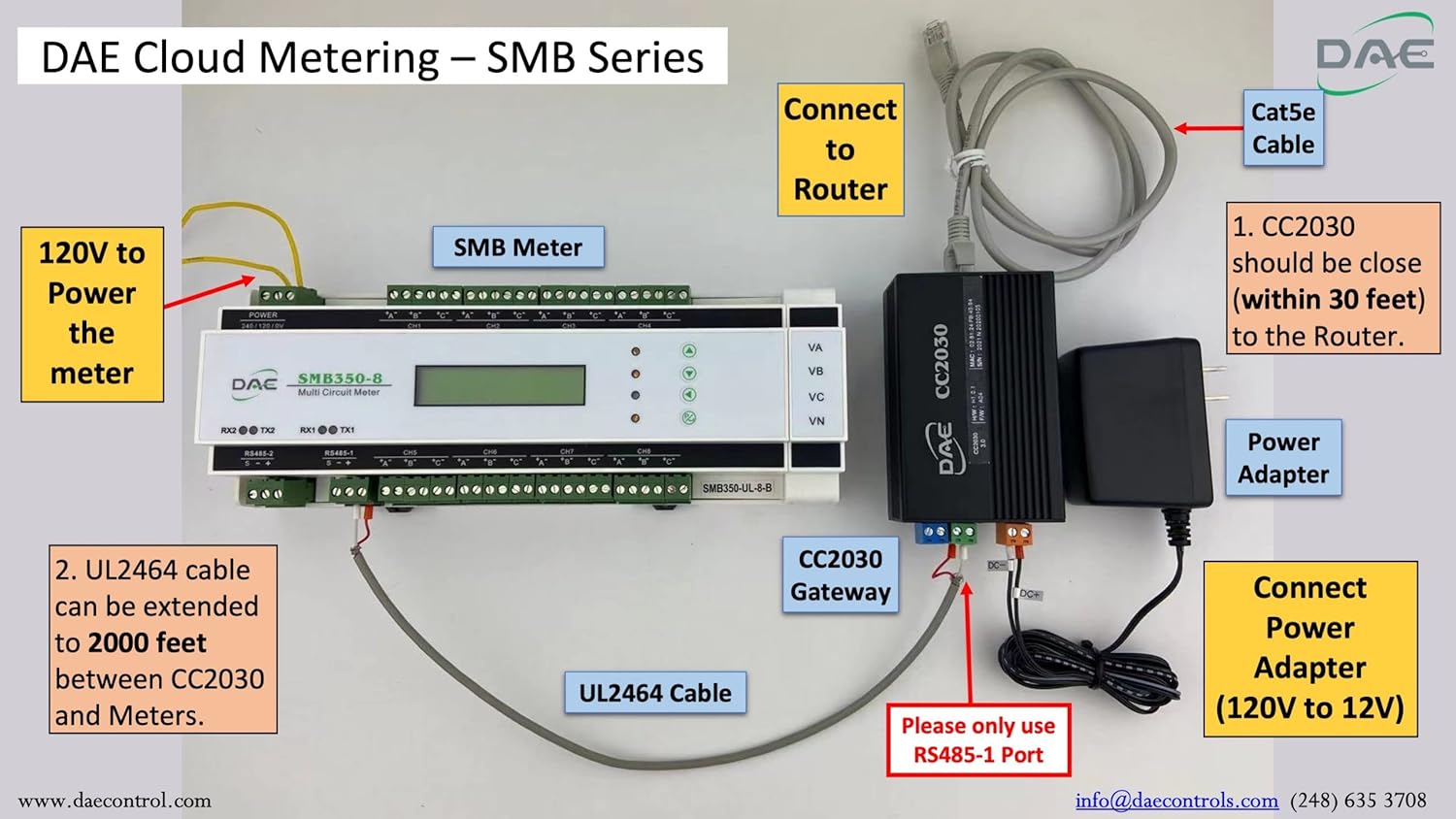

- DAE Cloud Metering (2nd picture) available with DAE CC2030 Gateway. CC2030 will collect energy data from DAE electrical meters and send them to Cloud Server through Ethernet. With PC, cell phone or tablet, landlords or property managers can get access to real time data, monthly kWh and billing reports to their tenants. TOU (Time of Use) billing reports are also available. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.
- For existing building, hard to draw cable between electric meter (close to electric panel) and CC2030 (close to your router), please choose 1 CC2030 KIT + 2 WSC500A RF Converters to connect electric meter and CC2030 wirelessly. (3rd picture)
- Factory Calibration Certificates available. DAE Controls LLC is an Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website. Following CTs are available with the meter. Split Core CTs DAE CT-5000SB (5000A), CT-3000SB (3000A), CT-2000SB (2000A), CT-1500SB (1500A), CT-1000SB (1000A), CT-600S (600A), CT-400S (400A), CT-200SB (200A), CT-100S (100A) and Solid Core CT-600D9 (600A), CT-400D6 (400A), CT-200D3 (200A).
- Monitor up to 4 apartments or 4 three phase electric panels (when adding 4 CTs). Modbus/RTU over RS485 communication, Max Voltage : 80~350 VAC (L-N), 600 VAC (L-L), Frequency : 50 or 60 Hz. Display cumulative kWh, real time kW load, volts per phase, amps per phase, power factor per phase, apparent power (kVA), reactive power (kVAr), reactive energy (KVArh), and frequency.
| UPC | 730707518293 |
|---|---|
| Color | grey |
| Model | SMB350-UL-4-B KIT |
| Brand Name | DAE |
| Style Name | 12 Circuits w/CTs |
| Unit Count | 1.0 Count |
| Manufacturer | DAE |
| Power Source | Ac |
| Item Dimensions | 9.06 x 3.74 x 2.36 inches |
| Specification Met | Ul, Cul, Ce, Fcc |
| Included Components | Fuse |
| Minimum Operating Voltage | 80 Volts (AC) |
