Davitu Electrical Equipments Supplies - QFN68 MLF68 burn in socket IC test socket pin pitch 0.4mm Clamshell chips size 8x8mm programmer adapter

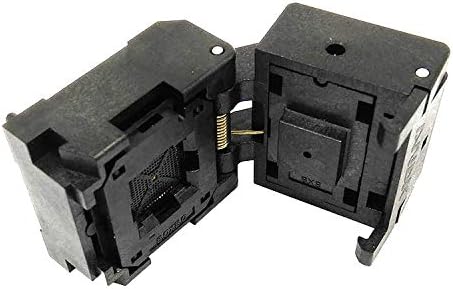

QFN68 MLF68 burn in socket IC test socket pin pitch 0.4mm Clamshell chips size 8x8mm QFN-68BT-0.4-01 programmer adapter Features:a.Clamshell structure burn in socket b.Adopting engineering material for socket structure,Strength is high ,lifetime is longc.Adopting import BeCu material for socket contactSpring ,thickening gold-plating surface ,impedance is small elasticity is goodd.For 0.4mm pitch packagee.Thru hole design Material & Performance:Ø socket Body: PEIØ Contacts:Beryllium Copper AlloyØ Contact Plating:Gold over NickelØ Operation Force:2.0KG min, the more PINs the greater forceØ Contact Resistance:50mΩ maxØ Dielectric:700V AC for 1 minuteØ Insulation Resistance:1,000MΩ500V DCØ Max Current Capacity : 1AØ Temperature Rating:-55℃~+175 ℃Ø Life Span 15,000 Times (Mechanical)2. Specification and Dimension :a) Package includes: QFN68b) Pin pitch : 0.4 mmc) Pin Count : 68d) Applicable IC Body Dimension : 8*8 mmItem specifics:Model number: QFN68-0.4 burn in socketType: QFN68 burn in socketPin count : 68Pin pitch : 0.4mmStructure : ClamshellIc chips size: 8*8Life time : 15000

• Package Includes: QFN68 | b) Pin pitch : 0.4 mm | c) Pin Count : 68 | d) Applicable IC Body Dimension : 8*8 mm |
• a.Clamshell structure burn in socket
• b.Adopting engineering material for socket structure, Strength is high ,lifetime is long
• c.Adopting import BeCu material for socket contact
• Spring ,thickening gold-plating surface ,impedance is small elasticity is good
