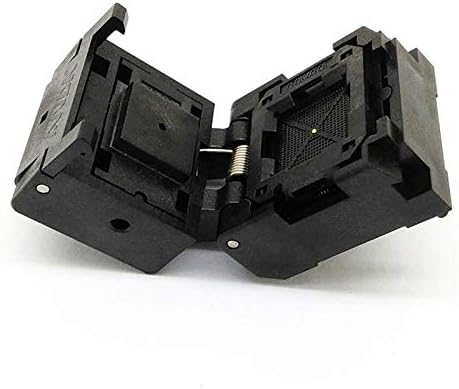

Davitu Electrical Equipments Supplies - QFN84 MLF84 IC Test Socket Pitch 0.4mm IC549-0844-018-G Burn in Socket Clamshell Chip Size10*10 Flash Adapter Programming Socket
4.7 (89 items)
Limited Time Sale$114.04 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211036561 | Release Date | 2026/04/04 | List Price | $76.02 | Model Number | 211036561 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
QFN84 MLF84 IC Test Socket Pitch 0.4mm IC549-0844-018-G Burn in Socket Clamshell Chip Size10*10 Flash Adapter Programming SocketFeatures:a.Clamshell structure burn in socketb.Adopting engineering material for socket structure,Strength is high ,lifetime is longc.Adopting import BeCu material for socket contactSpring ,thickening gold-plating surface ,impedance is small elasticity is goodd.For 0.4mm pitch packagee.Thru hole design Material & Performance:Ø socket Body: PEIØ Contacts:Beryllium Copper AlloyØ Contact Plating:Gold over NickelØ Operation Force:2.0KG min, the more PINs the greater forceØ Contact Resistance:50mΩ maxØ Dielectric:700V AC for 1 minuteØ Insulation Resistance:1,000MΩ500V DCØ Max Current Capacity : 1AØ Temperature Rating:-55℃~+175 ℃Ø Life Span 15,000 Times (Mechanical)Specification and Dimension :a) Type : QFN84 MLF84 WLCSP84 b) Pin pitch : 0.4 mmc) Pin Count : 84d) Applicable IC Body Dimension : 10*10 mm Related products:Item specifics:Model number: QFN84 burn in SocketType: IC549-0844-018-GPin: 84Pin pitch: 0.4 mmApplicable chip size: 10*10 mmStructure: Clamshell StructureLife span: 15000 timesTest type: manual testingDrop shop: Droppingshopping QFN84 socket
- a.Clamshell structure burn in socket
- b.Adopting engineering material for socket structure, Strength is high ,lifetime is long
- c.Adopting import BeCu material for socket contact
- Spring ,thickening gold-plating surface ,impedance is small elasticity is good
- d.For 0.4mm pitch package
| Brand Name | DAVITU |
|---|---|
| Unit Count | 1.0 Count |
| USDA Hardiness Zone | 1 |
| Expected Plant Height | 10 Meters |
| Expected Blooming Period | Spring |
| Expected Planting Period | Spring |
| Manufacturer Part Number | DVT-1F1B086FC6FAA4F7DD12BFA7E43B8D0F |
