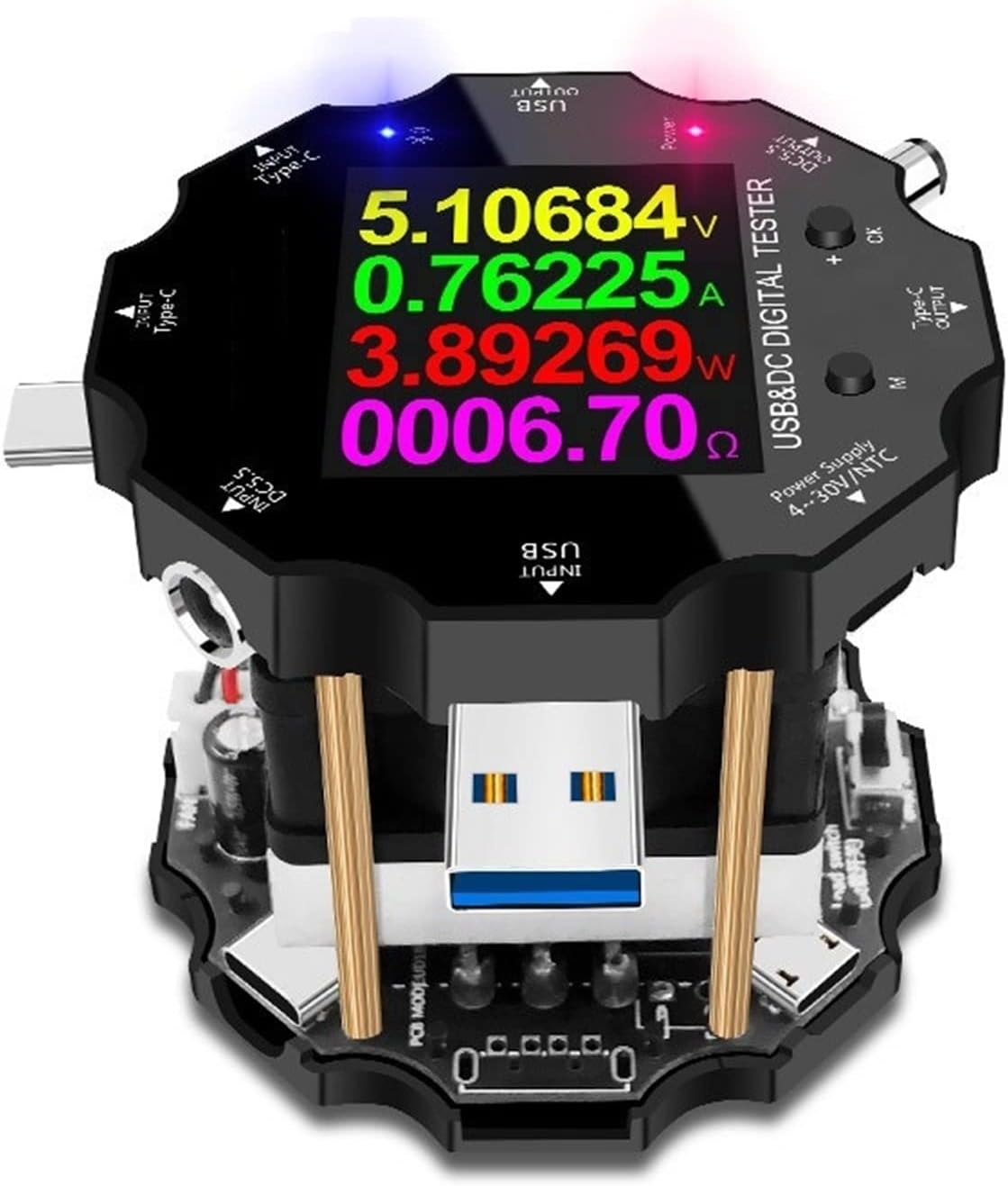

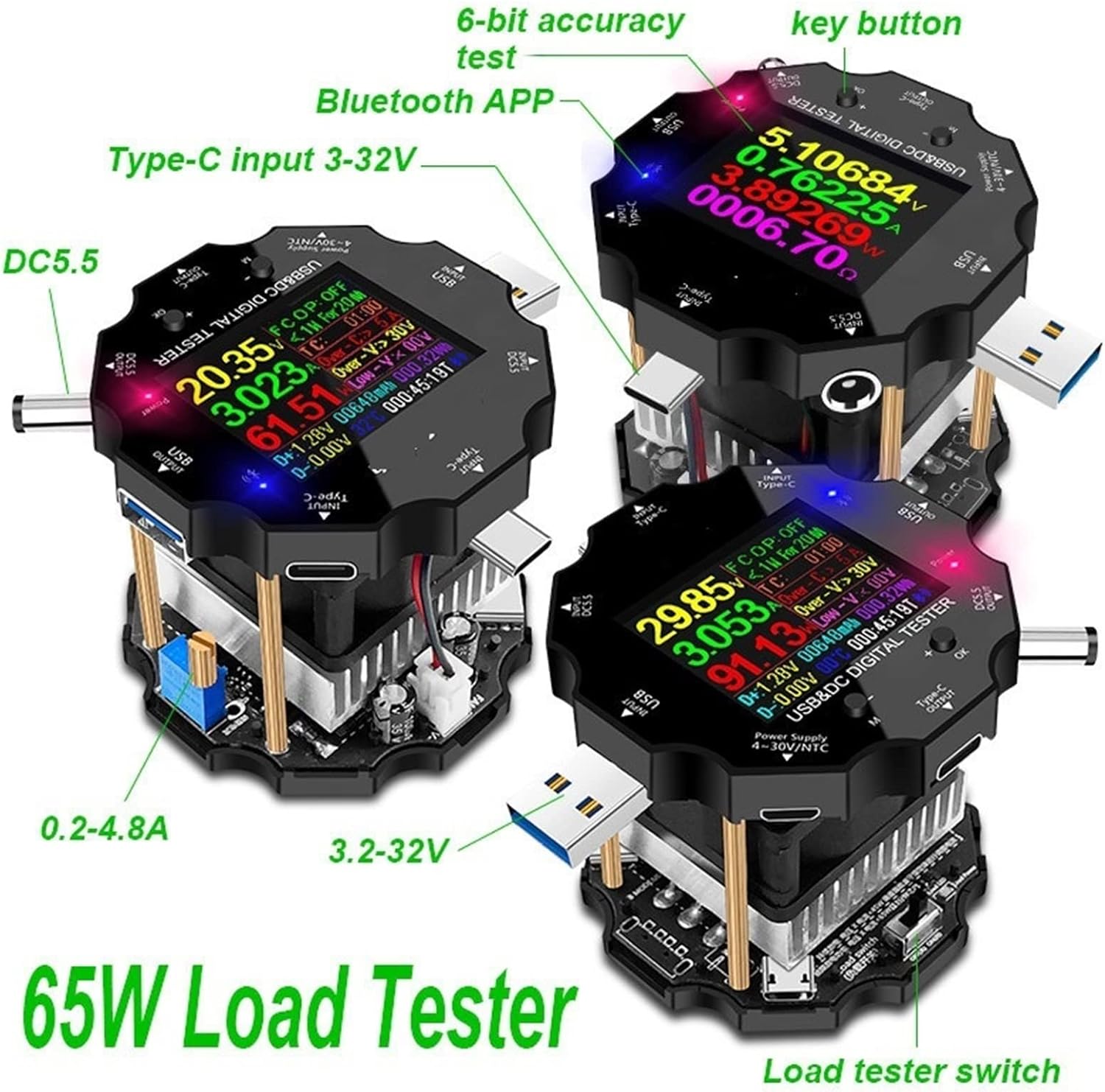

DC 3.2-32V 65W USB Load Tester 18650 Battery Electronic Capacity Monitor Indicator Power Supply Charger Checker Discharge Meter

Settings: Remote setting parameters (Please press the button to observe the setting parameters of the UD18 host will flash, press this button multiple times to cycle the parameter setting)+/- : Remote host interface switching and value addition and subtraction adjustment keysConfirm: remote host screen flip and setting parameter confirmation and value clear key button!--Product Parameter--Discharge tube models: IRFP260N (50 a / 200 v)Adjust potentiometer: precision adjustable potentiometerThe cooling way: intelligent temperature control fan + whole aluminum heat sinkThe input voltage: DC5 ~ 24.0 VAdjustable current: 0.1 ~ 4.8 A (maximum current to follow the law of conservation of energy input voltage control within the 65 w, according to the P = UI calculation principle)Constant current precision: : plus or minus 2%Current adjustment method: adopt many resistance way of fine adjustmentAging wattage rating: 45 w (sustainable); Limit the aging power: 65 w (short time within 3 minutes)Fan control mode: temperature intelligent control (the higher the temperature the greater the power the fan automatically increase speed to the faster)Highest fan speed: MAX12000 plus or minus 10 RPM (using large wind speed adjustable high-speed fan)Product size: 77 x 63 x 45 mm<; 0.02 AWorking temperature: - 10 ~ + 60 degrees Celsius - 10 ~ + 60 Working humidity: 10 ~ 80 (dew) undoubtedly 10 ~ 80 (no doubt)The pressure of work: 80 ~ 106 kpa

• Discharge tube models: IRFP260N (50 a / 200 v)
• Adjust potentiometer: precision adjustable potentiometer
• The cooling way: intelligent temperature control fan + whole aluminum heat sink
• The input voltage: DC5 ~ 24.0 V
• Adjustable current: 0.1 ~ 4.8 A (maximum current to follow the law of conservation of energy input voltage control within the 65 w, according to the P = UI calculation principle)
