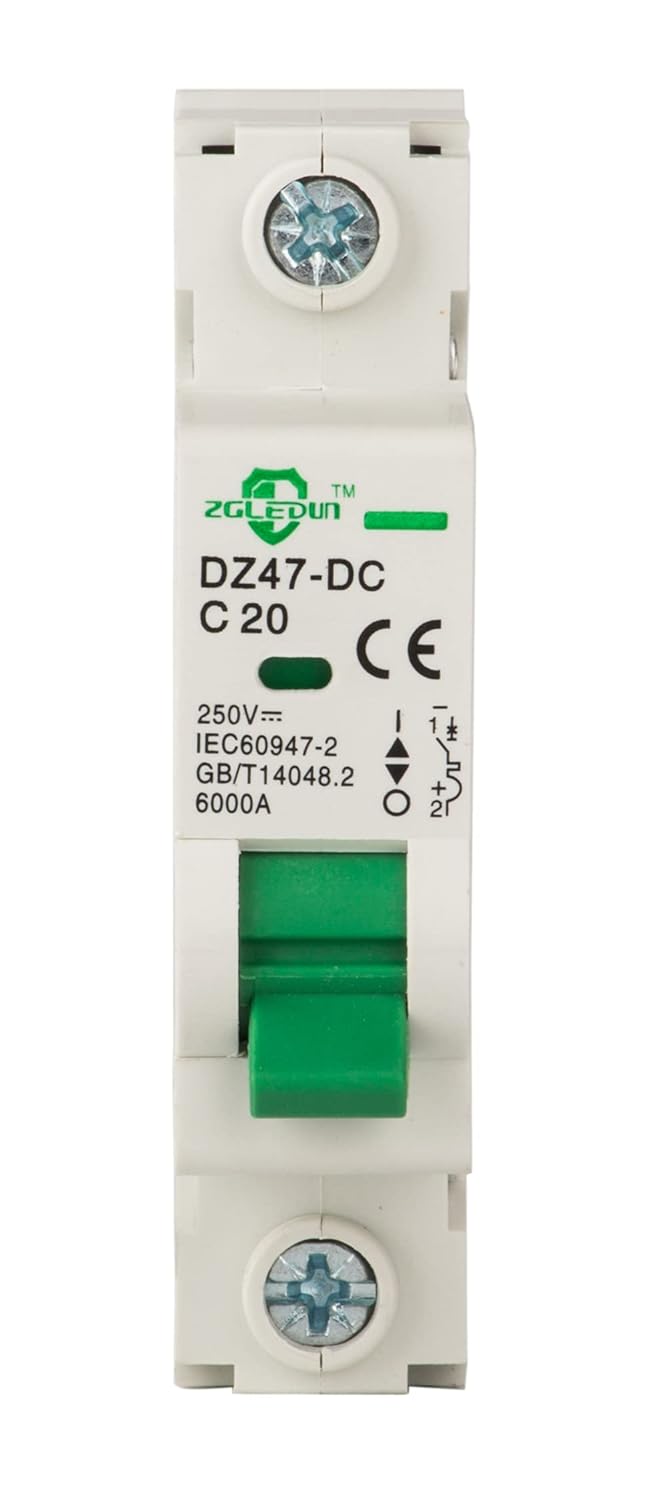

DC Miniature Circuit Breaker, 1 Pole 32 Amp, 110V-250VDC, 6kA Din Rail Mount Breaker with Thermal Magnetic Trip, DZ47-63 C32 1P, DC Solar MCB

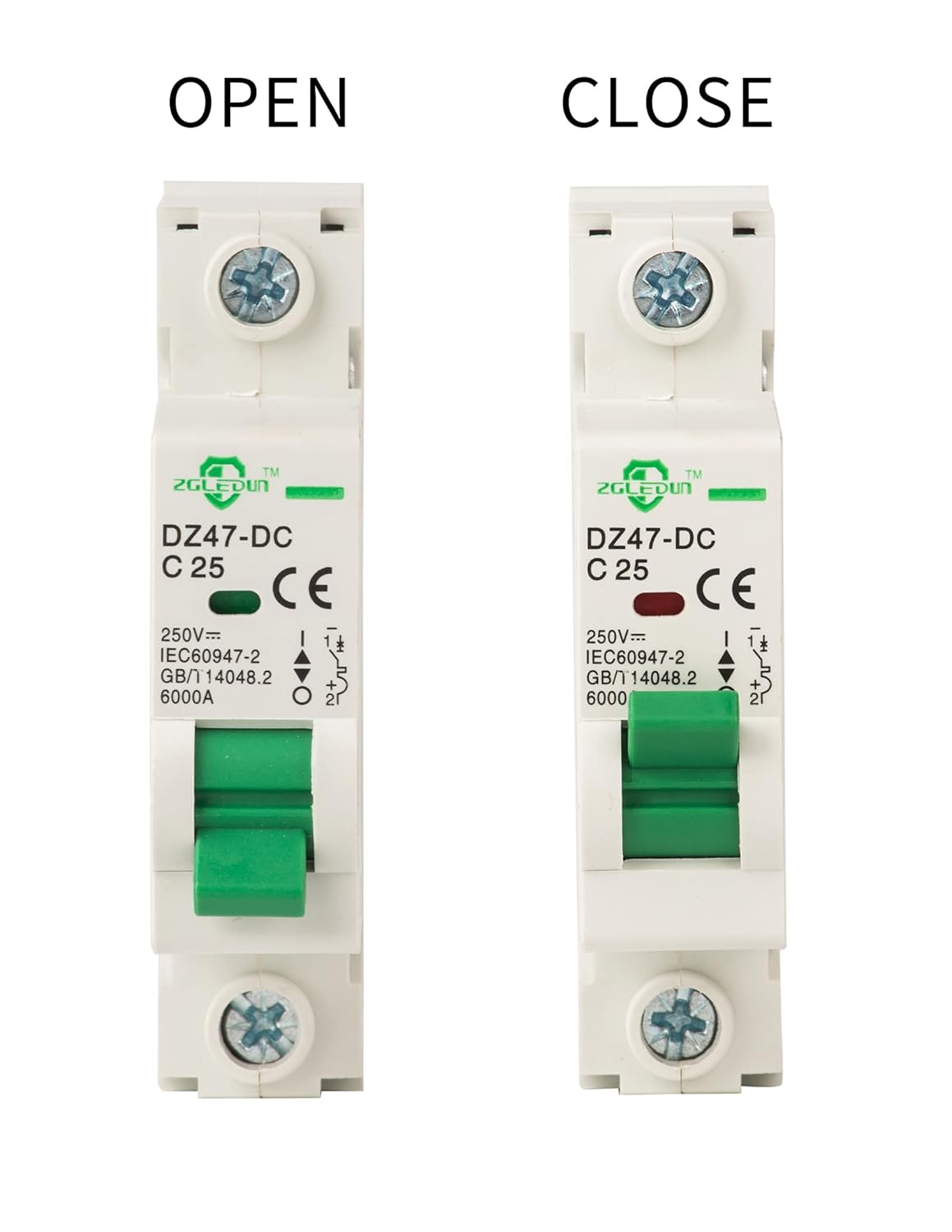

This DZ47-63 is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 32A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 6kA at 110VDC to 250VDC. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

• Function: Can be widely used in household lighting, small motor control, solar power supply systems, to prevent circuit overload or short circuit
• Parameter: 1 pole, 32 Amp, 110VDC~250VDC, C tripping curve
• Size: (L*W*H) 2.8"x0.7"x 3.1"/ 72 x18 x 78mm
• Installation: installed on the DIN rail in distribution box,Buckle design, no need to lock screws
• Characteristic: 3000 electrical life cycles, 20000 mechanical life cycles, flame retardant shell, can be wired up top or bottom
