Dc24V Ventilation Curtains,100W Rolled Electric Motor, Rolled Greenhouse Plastic Film, Electric Wind Film Machine,High Efficiency(Single motor)

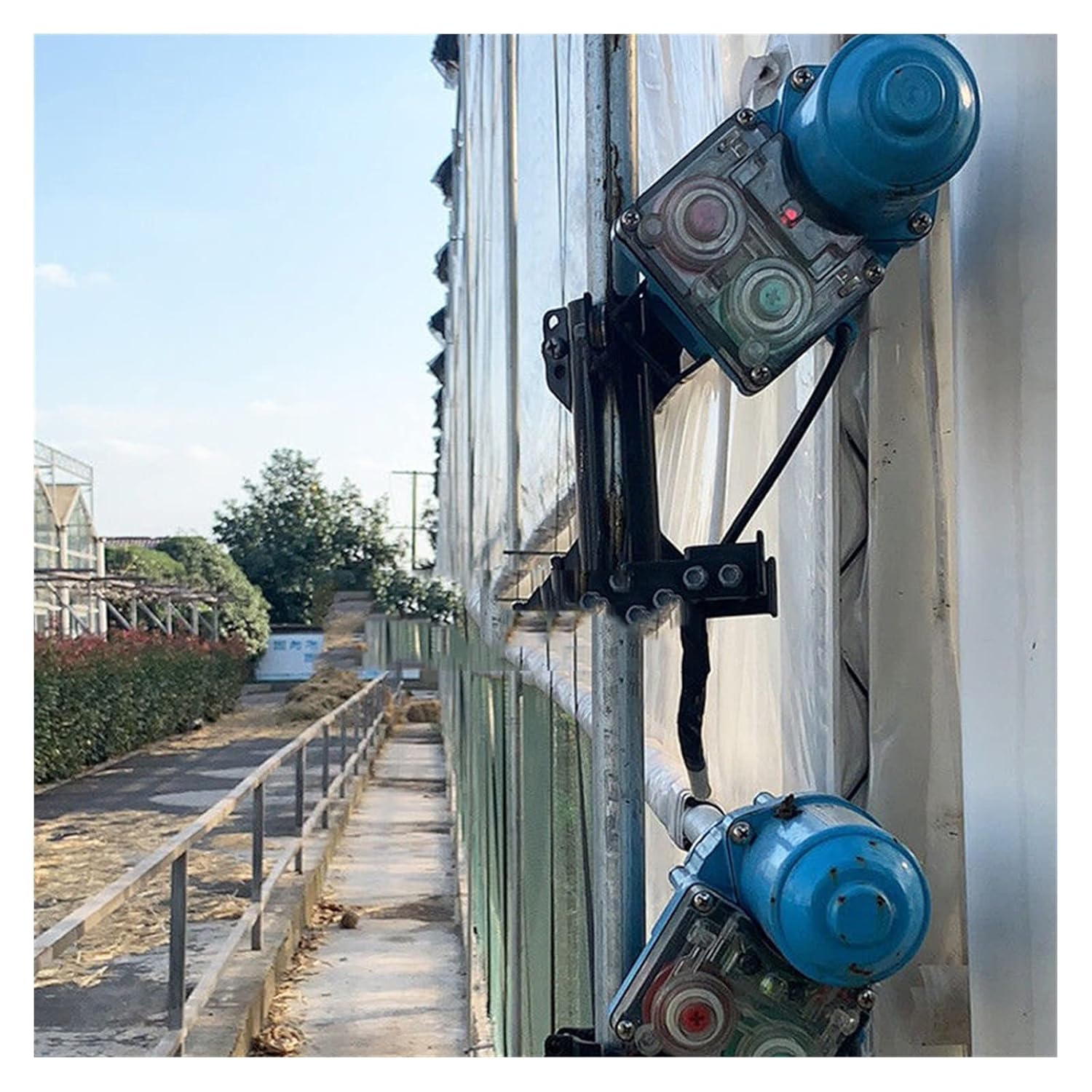

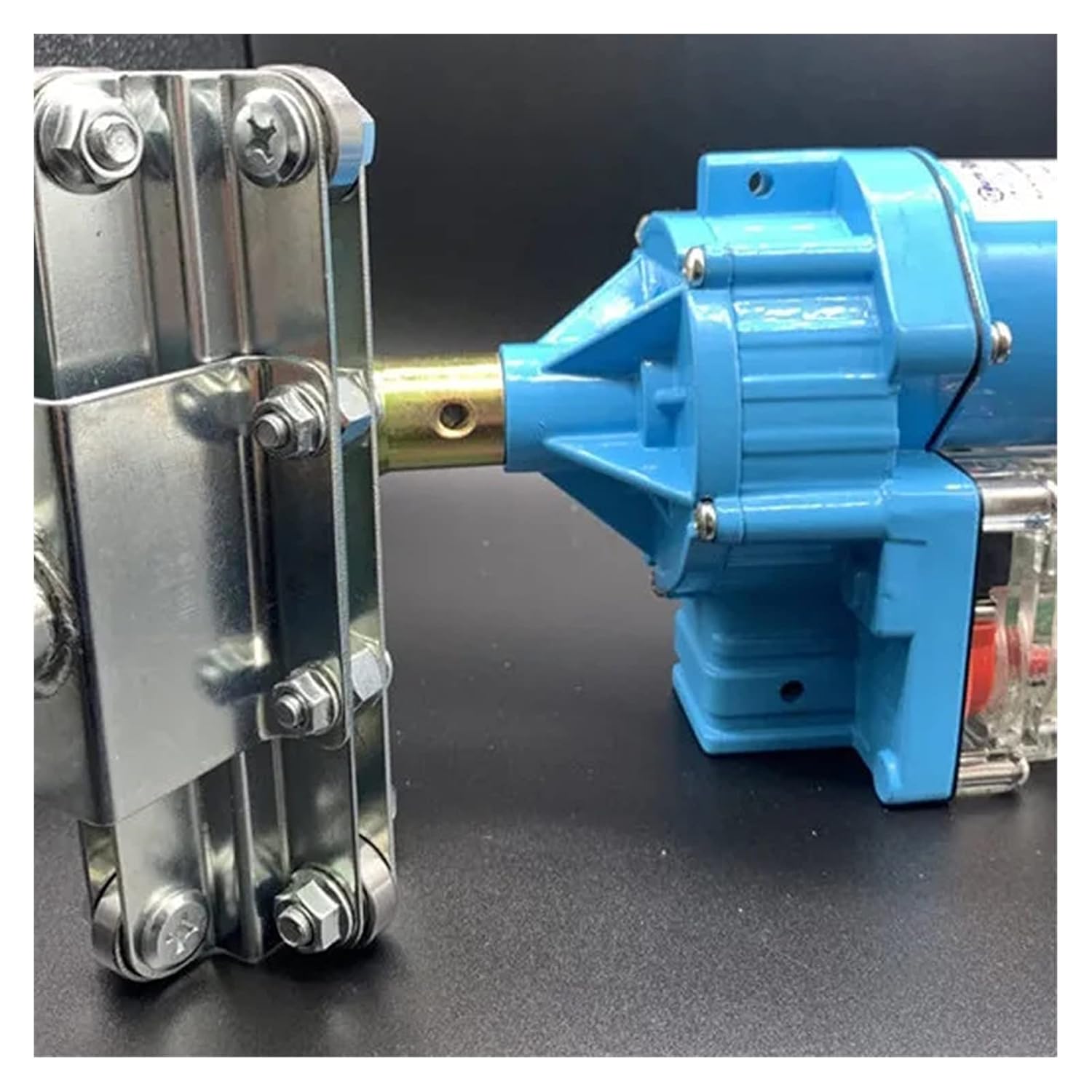

Dc24V Ventilation Curtains,100W Rolled Electric Motor, Rolled Greenhouse Plastic Film, Electric Wind Film Machine,specificationName: 24V Electric Film Rolling MachineType: 24V single motor/one control combinationVoltage: DC24VPower: 100WTightening torque: 100N.MStroke: 4 meters100W motor can roll 100 meters long filmpackage:Single motorMotor*1With climberMotor*1Climber * 1Combination AMotor*11 tow 1 electric box controller*1Climber * 1Combination BMotor*11 tow 1 with temperature control electric box controller*1Climber * 1display imageinstallation methodFirst, fasten the film tube and the product through bolts; then fix the film on the film tube through the film clamp. During the fixing process, always keep the film tube and the output shaft of the product in the same straight line; After fixing, turn on the power supply of the film roll, and then open and close the film roll.The rolled film tube used with this product has two specifications, the outer diameters are DN20 and DN25 respectively. When the DN20 pipe diameter is selected, it needs to be used with the "open sleeve". When the DN25 pipe diameter is selected, it does not need to be used with the "open sleeve", just insert it directly into the "connecting sleeve". When the product is used for top opening, the outer diameter of the supporting guide tube is DN25.Power distribution requirements for electric film rollsThe working voltage of the electric film roll is DC 24V, which can be obtained through a transformer. The capacity of the transformer should be considered when selecting the transformer. In principle, the capacity of the transformer should be greater than the total power of the load end. The wiring diagram from the transformer to the film roll can be referred to below Picture: (KM is the short circuit protector of the electric film roll, K is the three-position switch)

• Voltage: DC24V
• Power: 100W
• Tightening torque: 100N.M
• Stroke: 4 meters
• 100W motor can roll 100 meters long film
