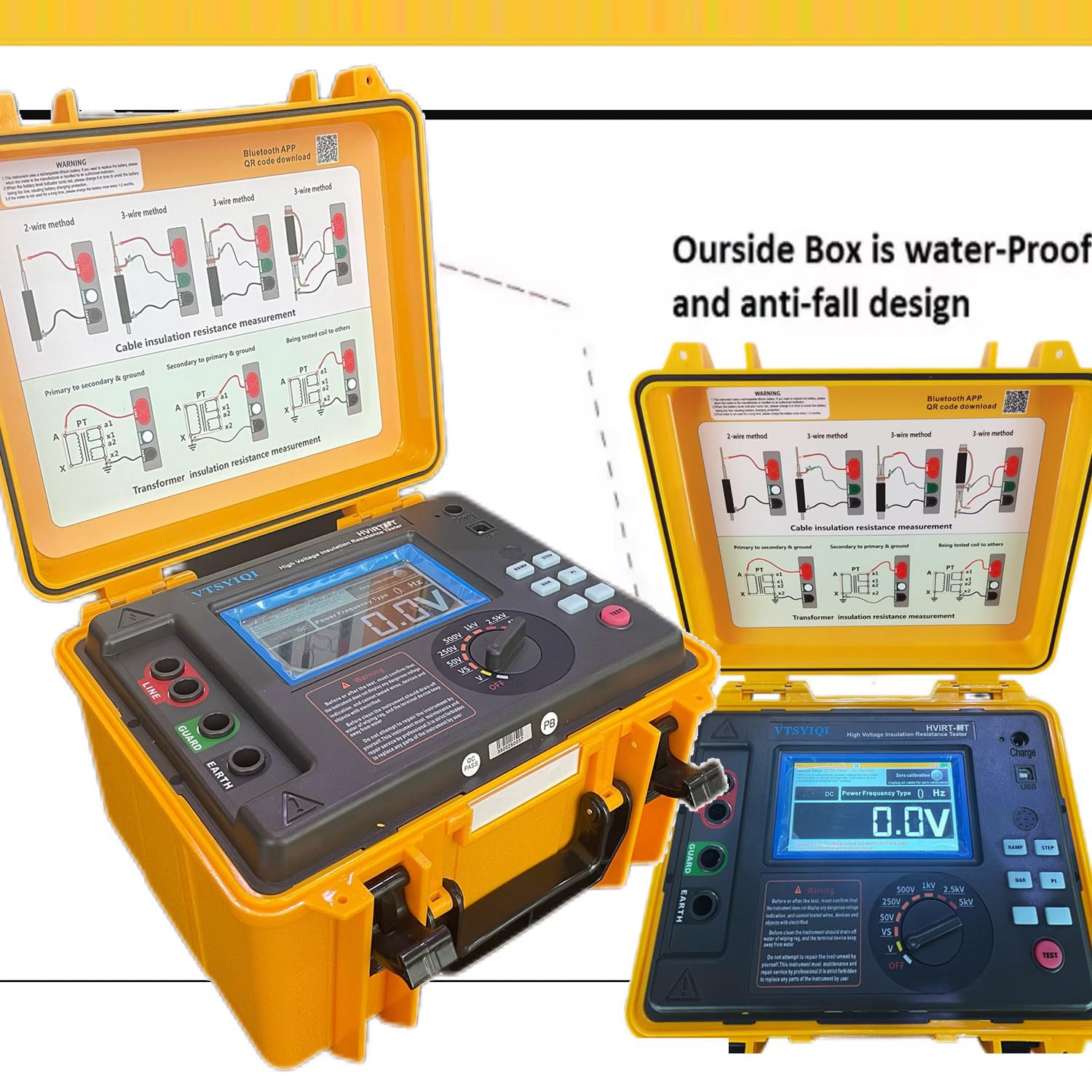

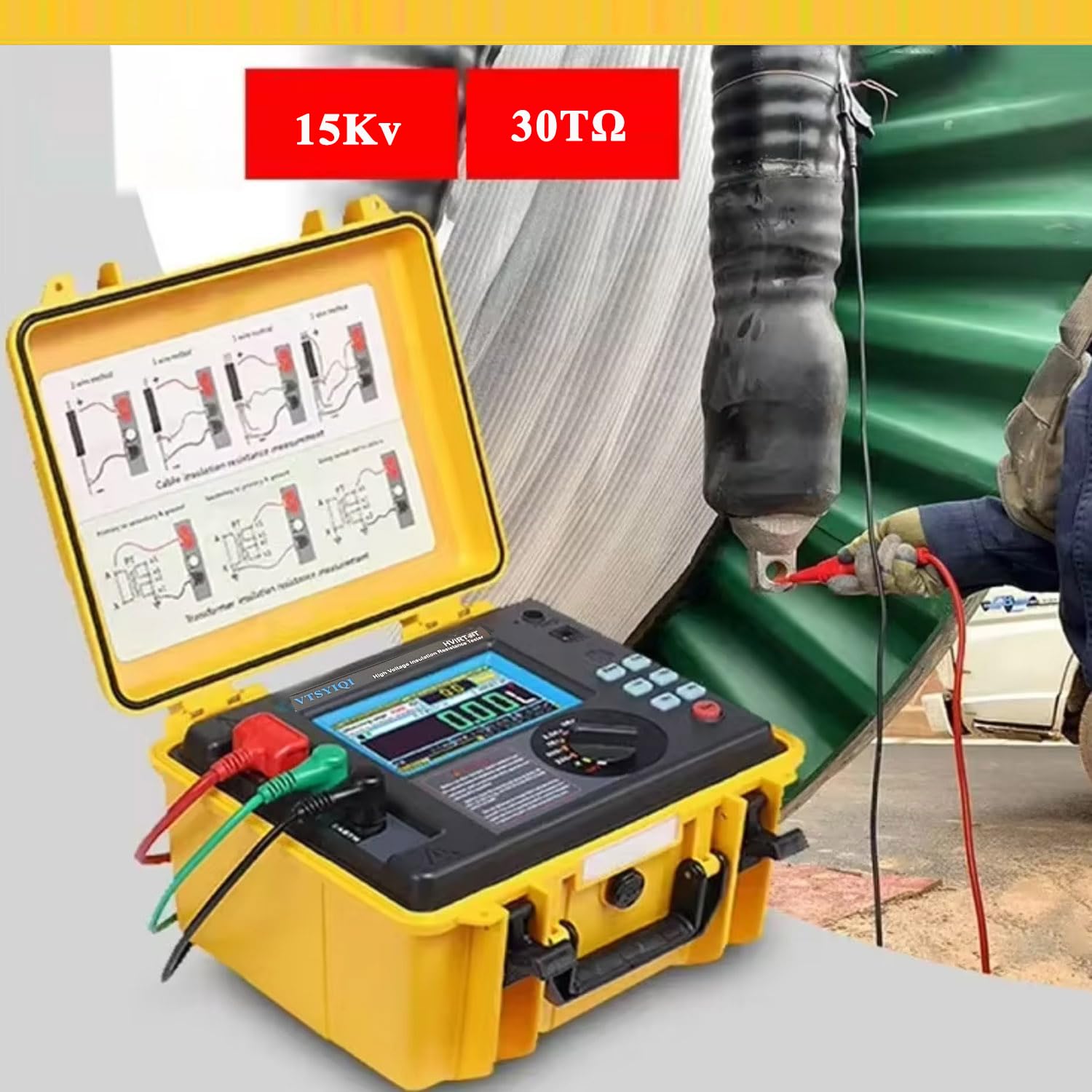

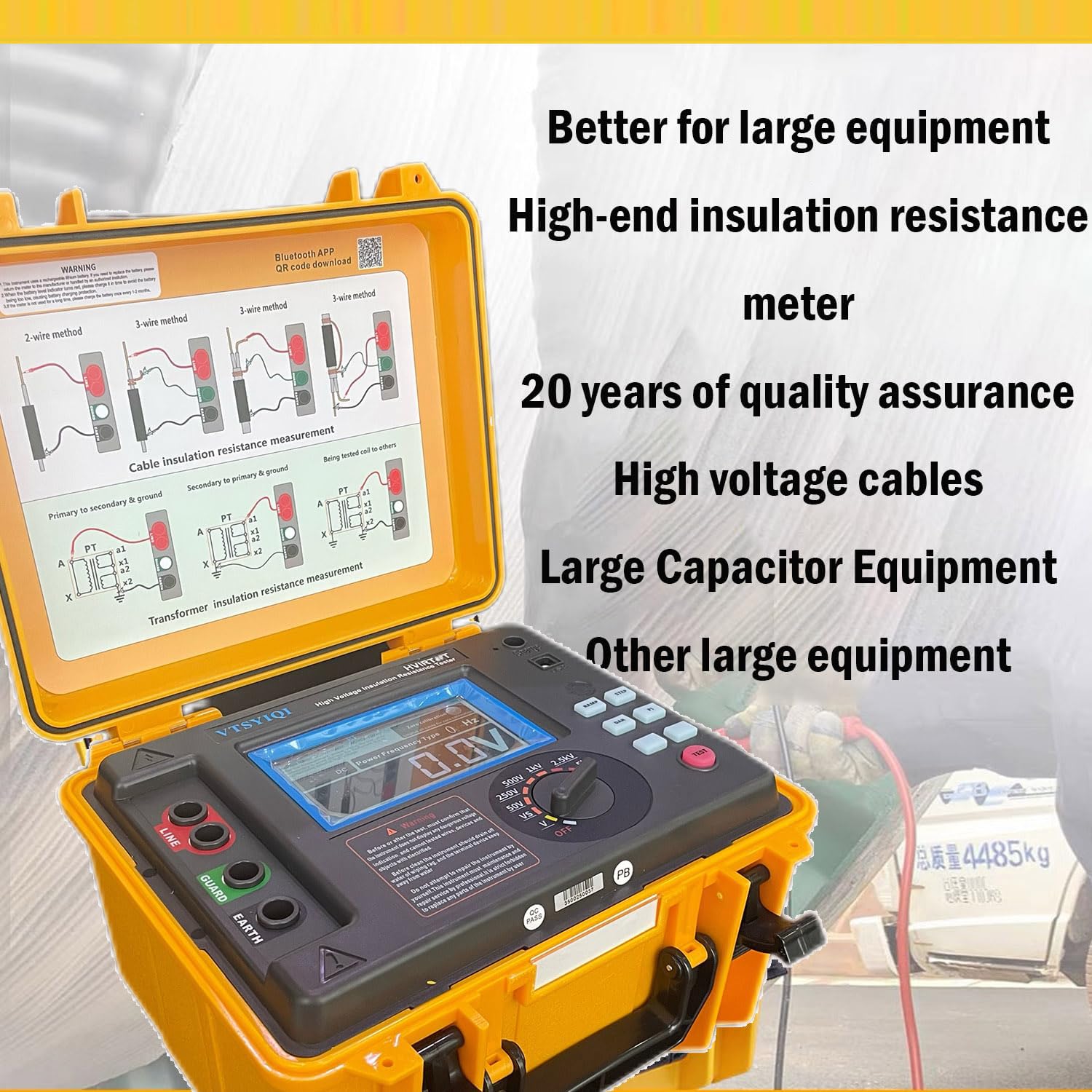

Digital 15Kv Insulation Resistance Tester High Voltage Insulation Testers Kit for High-Capacity High-Voltage Strongly Induced Electrical with 30.0TΩ Teraohms Resistance 15Kv Voltage USB Port
4.9 (142 items)
Limited Time SaleUntil the end
00
02
28
$1,014.00 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $1,690.00
Product details
| Management number | 210914581 | Release Date | 2026/04/04 | List Price | $676.00 | Model Number | 210914581 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 1.15 kv insulation tester 5 inch true-color touch screen, test data is displayed on the same screen, can easily check the test operation and the recorded historical data. 2.50V, 250V, 500V, 1kV, 2.5kV, 5kV, 10kV, 15kV 8 gears rated output voltage in total, wide measurement range 0.005MΩ~30TΩ. Max short circuit current: 7mA 3.Large output power, strong anti-interference ability. It has stable testing capabilities in scenario with large distributed capacitance (such as long cable) and in environment with strong electromagnetic interference (such as substation).
- 4.15kV High Voltage Insulation Resistance Tester Complete measurement indicator: Insulation Resistance(IR), Polarization Index(PI), Dielectric Absorption Ratio(DAR), Step Test(STEP), Ramp Test(RAMP), Dielectric discharge index, Distributed capacitance (CAP) and AC/DC Voltage(V). 5.Self-set test function: can choose PI, DAR and DD calculation formulas to provide user with a variety of options. 6.Self-set voltage function(VS): test voltage and test time can be freely set to facilitate the need of special scenario.
- 7.High Voltage 15kV Insulation Tester Voltage monitor: automatically monitor the voltage of the tested object. When the voltage is larger than 36V, the test is prohibited to protect the safety of the instrument and the operator. 8.Current monitor: automatically display the testing loop current. 9.Temperature monitor: automatically display the temperature and humidity in the instrument box.
- 10.15kV High Voltage Insulation Tester Automatic discharge function, automatically and quickly releases the charging charge of the tested object, no need external discharge circuit. 11.Large capacity rechargeable lithium battery pack 14.8v 6400mAh guarantee long-term testing work. 12.Large capacity test record memory, the test record can be browsed and analyzed directly in the tester and automatically records 1000 groups real-time test data with test date and test time.
- 13.High voltage insulation resistance tester USB communication upload function, recorded data can be uploaded to PC for statistical analysis of stored data. 14.Bluetooth communication function, can upload the test data to mobile phone. 15.protection level IP65(when the cover is closed).
| Color | Grey |
|---|---|
| Model | VTSYIQI20250904113485878711VTSYIQI |
| Brand Name | VTSYIQI |
| Style Name | VTSYIQI20250904113485878711VTSYIQI |
| Manufacturer | VTSYIQI20250904113485878711VTSYIQI |
| Power Source | Battery Powered |
| Item Dimensions | 15.75 x 5.91 x 7.87 inches |
| Included Components | main host |
