DIY CNC Touch Probe XYZ Axis 3D Digitizing Edge Finder 3-Coordinate Measuring Sensor Kit with 6 mm Shank & 2.0 mm Tungsten Steel Ball Tip

flash sale iconLimited Time Sale
Until the end
05
01
26

$46.19 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New  $76.99
quantity

Product details

Management number 211765815 Release Date 2026/04/04 List Price $30.80 Model Number 211765815
Category
  • This 3-coordinate XYZ axis CNC probe is designed for wide DIY CNC applications, like fast zero-point acquisitions, surface flatness acquisition, measuring workpiece geometries such as edges, holes, grooves, studs, angles and corners, workpiece scanning & digitizing. ( Tips: It's developed for DIY applications, not recommended for industrial use.)
  • Main Specs: power: DC5-24V, NPN-NC wiring (Low-level IO signal output when powered and turns to High-level signal output when Triggered), repeatability accuracy: 0.01 mm/ 0.0004 in, feed rate: 50-200 mm/min, over travel protection distance: XY- ±4mm/0.16 in, Z- 2mm/ 0.08in, XY axis trigger force: 0.5-0.82N, Z axis trigger force: 1.6 N. (Note: if working with a tool setter to test the height of the probe, please ensure the sensitivity of the tool setter is better/ trigger force less than 1.6 N.)

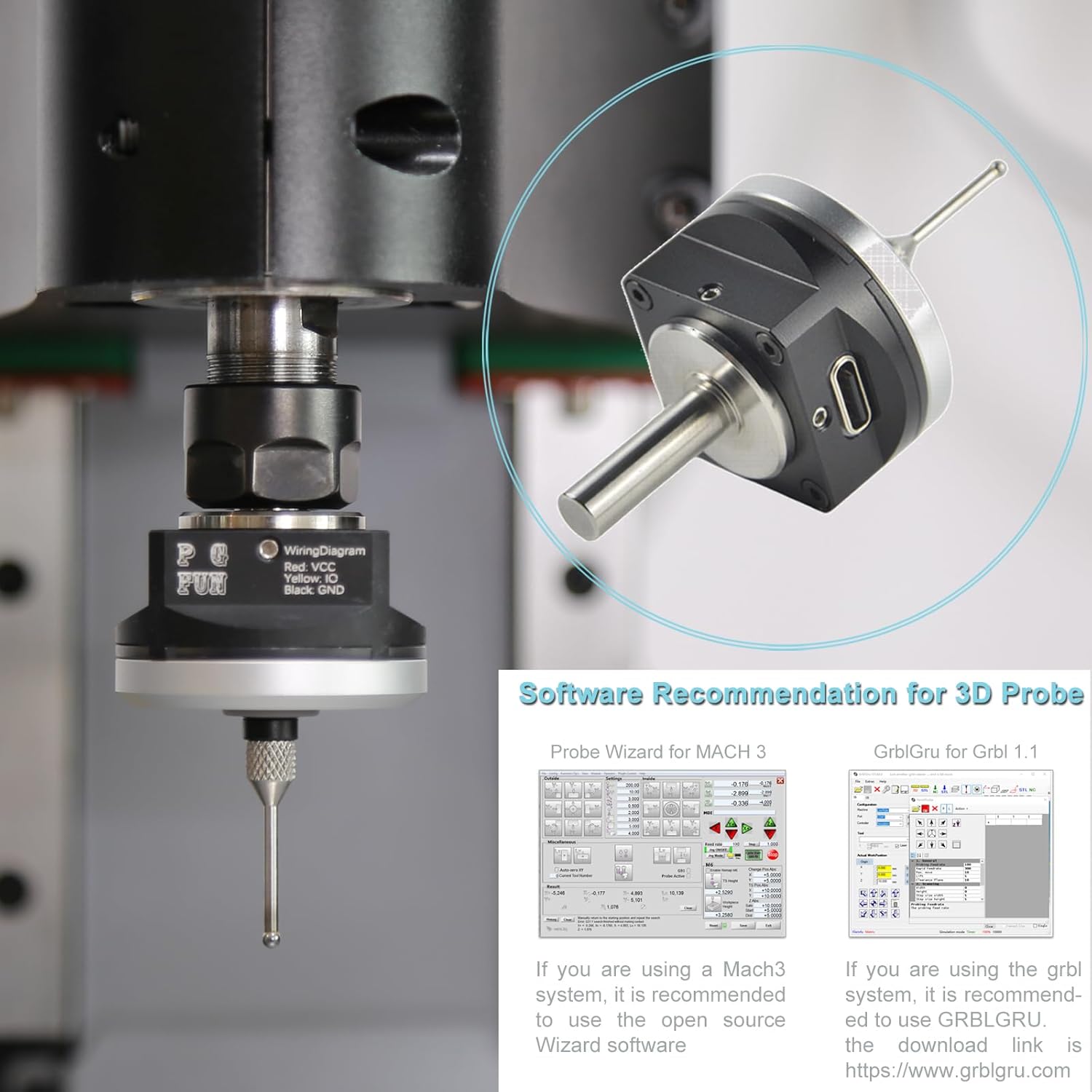

  • Application: theoretically it can work with GRBL, MACH3, Mach4, Dynamotion, LiNUXCNC, UCCNC, Centroid CNC or any other CNC control software with a probing routine and a breakout board that will accept 3-port probe input (contact your software, and controller manufacturer or lookup forums for probe wiring and connections).
  • Upgraded Digitizing CNC Touch Probe: the probe uses high-quality electronics for true high measurement precision and high repeatability, the fine frosted black oxidized aluminum alloy with a flat surface anti-roll/non-round shaped design, which makes it look great and protects the touch probe well from dropping. Besides, this tool can be modified to a tool setter by a tool setter base and flat tip.
  • Package Includes: 3D touch probe x 1, cable x 2 m/ 6.5ft, allen wrench x 1, tungsten steel ball tip x 1, wire connector kit x 1 (to solve the lack of control board wiring ports and extend the wire ).
Item Weight 5.9 ounces
Manufacturer PGFUN
Item model number TR-0041_NC
Package Dimensions 4.8 x 2.83 x 2.83 inches
