DPALGKVTZ CZH-Labs DIN Rail Mount 12 Position Power Distribution Module.
4.7 (51 items)
Limited Time Sale$48.60 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212394842 | Release Date | 2026/04/06 | List Price | $32.40 | Model Number | 212394842 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

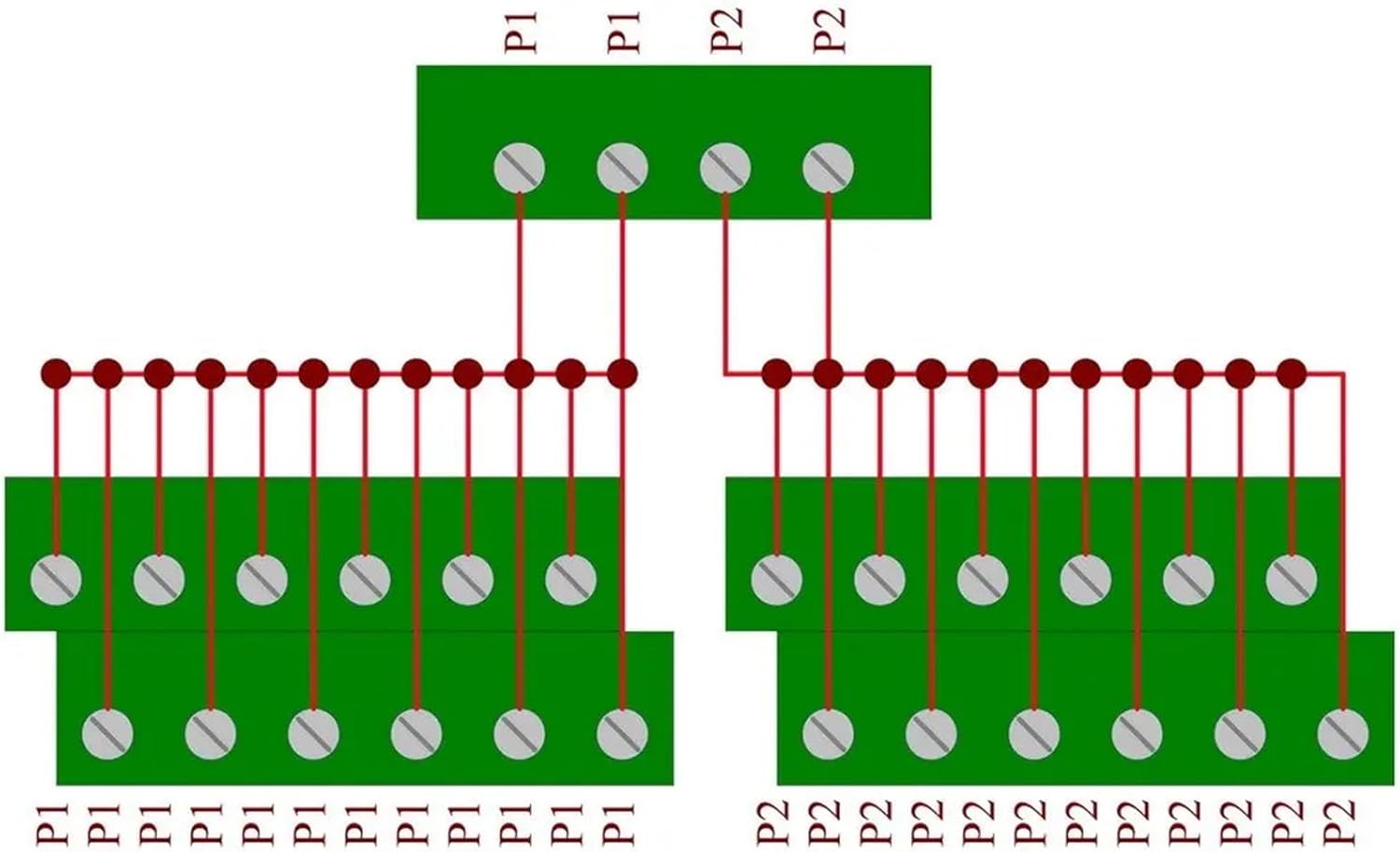

Wire TerminalsDIN Rail Mount Power Distribution Module Board.Specification:Voltage - 250Vac/dc, Current Rating - 40A.PCB Dimensions - 80mm x 72.5mm x 34mm (W x L x H).Module Dimensions - 83mm x 87mm x 58mm (W x L x H).Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.Output terminals: pitch - 5.08mm/0.2", current 20A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.FR-4 fiber glass PCB, dual copper layers. fireproof nylon material DIN rail mount carrier (not low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
- Wire Terminals
- CZH-LABS DIN Rail Mount 12 Position Power Distribution Module.
| Color | One Color |
|---|---|
| Model | DPALGKVTZ |
| Brand Name | ZU3JXLJ1JO |
| Part Number | DPALGKVTZ |
| Manufacturer | DPALGKVTZ |
| Material Type | Acrylic |
